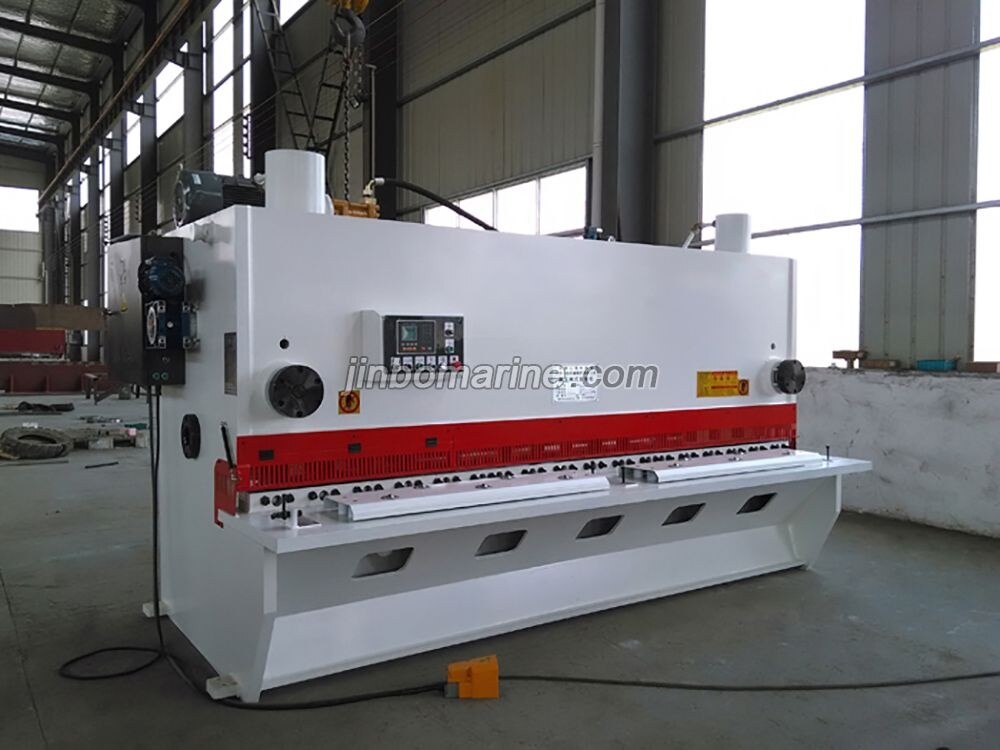

QC11Y Hydraulic Guillotine Shear For Shipyard
QC11Y Hydraulic Guillotine Shear Characteristics 1. The second generation of hydraulic shearing machine. 2. Welded steel plate structure, heating to eliminate stress, ...
QC11Y Hydraulic Guillotine Shear For Shipyard
PDF Datasheet
We can supply according to your requirement.
QC11Y Hydraulic Guillotine Shear Characteristics
1. The second generation of hydraulic shearing machine.
2. Welded steel plate structure, heating to eliminate stress, with high strength and good rigidity.
3. Advanced integrated hydraulic system with good reliability.
4. The rolling guide with 3-point support, eliminating the gap and improving the shearing quality.
5. Rapidly accurately and conveniently adjusting the blade clearance with the hand wheel.
6. Rectangle blade, full-side blade can be separately used, long-term in usage.
7. Shearing angle is adjustable, to reduce deformation of the sheet material.
8. Upper blade use inner-falling structure, easy for plate shearing and enhance the plate precision.
9. Has the function for section shearing.
10. Motorized back gauge, digital display.
QC11Y Hydraulic Guillotine Shear Technical Specifications
| Model | Shearing | Shearing | Shearing | Number of | Back gauge | Blade | Blade | Power(KW) |
| Thickness(mm) | Width(mm) | Angle(°) | Stroke(min-1) | Range(mm) | Length(mm) | Material | ||
| QC11Y-4x1600 | 4 | 1600 | 0.5-2 | 16-35 | 20-580 | 1700 | 9CrSi | 4 |
| QC11Y-4x2500 | 4 | 2500 | 0.5-1.5 | 16-35 | 20-580 | 2600 | 9CrSi | 4 |
| QC11Y-4x3200 | 4 | 3200 | 0.5-1.5 | 14-35 | 20-580 | 3300 | 9CrSi | 5.5 |
| QC11Y-4x4000 | 4 | 4000 | 0.5-1.5 | 10-30 | 20-580 | 4100 | 9CrSi | 7.5 |
| QC11Y-4x6000 | 4 | 6000 | 0.5-1.5 | 8-25 | 20-580 | 6150 | 9CrSi | 11 |
| QC11Y-6x2500 | 6 | 2500 | 0.5-1.5 | 16-35 | 20-580 | 2600 | 9CrSi | 7.5 |
| QC11Y-6x3200 | 6 | 3200 | 0.5-1.5 | 14-35 | 20-580 | 3300 | 9CrSi | 7.5 |
| QC11Y-6x4000 | 6 | 4000 | 0.5-1.5 | 10-30 | 20-580 | 4100 | 9CrSi | 7.5 |
| QC11Y-6x6000 | 6 | 6000 | 0.5-1.5 | 8-25 | 20-580 | 6150 | 9CrSi | 11 |
| QC11Y-6x8000 | 6 | 8000 | 0.5-1.5 | 6-12 | 20-800 | 8200 | 6CrW2Si | 15 |
| QC11Y-8x2500 | 8 | 2500 | 0.5-1.5 | 14-30 | 20-600 | 2600 | 9CrSi | 11 |
| QC11Y-8x3200 | 8 | 3200 | 0.5-2 | 12-30 | 20-580 | 3300 | 9CrSi | 11 |
| QC11Y-8x4000 | 8 | 4000 | 0.5-2 | 10-25 | 20-580 | 4100 | 9CrSi | 11 |
| QC11Y-8x6000 | 8 | 6000 | 0.5-2 | 8-20 | 20-580 | 6150 | 9CrSi | 15 |
| QC11Y-8x12000 | 8 | 12000 | 0.5-2 | 4-10 | 20-1000 | 12100 | 9CrSi | 45 |
| QC11Y-10x2000 | 10 | 2000 | 0.5-2 | 12-25 | 20-580 | 2050 | 9CrSi | 11 |
| QC11Y-10x2500 | 10 | 2500 | 0.5-2 | 12-25 | 20-580 | 2600 | 9CrSi | 11 |
| QC11Y-10x3000 | 10 | 3000 | 0.5-2 | 9-25 | 20-580 | 3075 | 9CrSi | 11 |
| QC11Y-10x3200 | 10 | 3200 | 0.5-2 | 9-25 | 20-580 | 3300 | 9CrSi | 11 |
| QC11Y-12x2500 | 12 | 2500 | 0.5-2 | 12-25 | 20-800 | 2600 | 9CrSi | 15 |
| QC11Y-12x3200 | 12 | 3200 | 0.5-2 | 9-25 | 20-800 | 3300 | 9CrSi | 15 |
| QC11Y-12x4000 | 12 | 4000 | 0.5-2 | 6-20 | 20-800 | 4100 | 9CrSi | 15 |
| QC11Y-12x6000 | 12 | 6000 | 0.5-2 | 6-20 | 20-800 | 6150 | 9CrSi | 30 |
| QC11Y-12x6500 | 12 | 6500 | 0.5-2 | 5-15 | 20-800 | 6600 | 9CrSi | 30 |
| QC11Y-12x8000 | 12 | 8000 | 0.5-2 | 6-20 | 20-800 | 8100 | 9CrSi | 45 |
| QC11Y-12x9000 | 12 | 9000 | 0.5-2.5 | 4-12 | 20-1000 | 9100 | 9CrSi | 5 |
| Model | Shearing | Shearing | Shearing | Number of | Back gauge | Blade | Blade | Power(KW) |
| Thickness(mm) | Width(mm) | Angle(︒) | Stroke(min-1) | Range(mm) | Length(mm) | Material | ||
| QC11Y-13x3000 | 13 | 3000 | 0.5-3 | 9-20 | 20-800 | 3075 | 9CrSi | 15 |
| QC11Y-13x12000 | 13 | 12000 | 0.5-2 | 3-10 | 20-1000 | 12100 | 9CrSi | 2-45 |
| QC11Y-16x2500 | 16 | 2500 | 0.5-2.5 | 9-20 | 20-800 | 2600 | 9CrSi | 22 |
| QC11Y-16x3200 | 16 | 3200 | 0.5-2.5 | 8-20 | 20-800 | 3300 | 9CrSi | 22 |
| QC11Y-16x4000 | 16 | 4000 | 0.5-2.5 | 8-15 | 20-800 | 4100 | 9CrSi | 22 |
| QC11Y-16x5000 | 16 | 5000 | 0.5-2.5 | 5-15 | 20-800 | 5125 | 9CrSi | 37 |
| QC11Y-16x6000 | 16 | 6000 | 0.5-2.5 | 5-15 | 20-800 | 6150 | 9CrSi | 37 |
| QC11Y-16x7000 | 16 | 7000 | 0.5-2.5 | 5-12 | 20-800 | 7175 | 9CrSi | 37 |
| QC11Y-16x8000 | 16 | 8000 | 0.5-2.5 | 6-20 | 20-800 | 8200 | 9CrSi | 55 |
| QC11Y-16x12000 | 16 | 12000 | 0.5-2.5 | 5-15 | 20-800 | 6150 | 9CrSi | 2-37 |
| QC11Y-16x13000 | 16 | 13000 | 0.5-2 | 5-10 | 20-1000 | 13325 | 6CrW2Si | 2-45 |
| QC11Y-18x6000 | 18 | 6000 | 0.5-2.5 | 5-15 | 20-800 | 6150 | 9CrSi | 37 |
| QC11Y-20x2500 | 20 | 2500 | 0.5-3 | 7-20 | 20-800 | 2600 | 6CrW2Si | 30 |
| QC11Y-20x3200 | 20 | 3200 | 0.5-3 | 6-20 | 20-800 | 3300 | 6CrW2Si | 30 |
| QC11Y-20x4000 | 20 | 4000 | 0.5-3 | 5-15 | 20-800 | 4100 | 6CrW2Si | 30 |
| QC11Y-20x6000 | 20 | 6000 | 0.5-3 | 4-15 | 20-1000 | 6150 | 6CrW2Si | 55 |
| QC11Y-20x8000 | 20 | 8000 | 1-2.5 | 4-10 | 20-950 | 8100 | 6CrW2Si | 55 |
| QC11Y-20x9000 | 20 | 9000 | 1.5-2.5 | 6-12 | 20-800 | 9100 | 6CrW2Si | 37 |
| QC11Y-25x2500 | 25 | 2500 | 1-3.5 | 6-15 | 20-1000 | 2600 | 6CrW2Si | 37 |
| QC11Y-25x3000 | 25 | 3000 | 1-3.5 | 5-15 | 20-1000 | 3075 | 6CrW2Si | 37 |
| QC11Y-25x3200 | 25 | 3200 | 1-3.5 | 5-15 | 20-1000 | 3300 | 6CrW2Si | 37 |
| QC11Y-25x4000 | 25 | 4000 | 1-3.5 | 4-15 | 20-1000 | 4100 | 6CrW2Si | 37 |
| QC11Y-25x6000 | 25 | 6000 | 1-3.5 | 4-13 | 20-800 | 6150 | 6CrW2Si | 55 |
| QC11Y-25x7000 | 25 | 7000 | 0.5-3 | 3-10 | 20-1000 | 7175 | 6CrW2Si | 55 |
| QC11Y-25x8000 | 25 | 8000 | 0.5-3 | 3-12 | 20-600 | 8050 | 6CrW2Si | 2-37 |
| QC11Y-30x2500 | 30 | 2500 | 1.5-3.5 | 4-14 | 20-1000 | 2600 | 6CrW2Si | 55 |
| QC11Y-32x3200 | 32 | 3200 | 1.5-3.5 | 4-12 | 20-1000 | 3300 | 6CrW2Si | 55 |
| QC11Y-32x4000 | 32 | 4000 | 1.5-3.5 | 3-12 | 20-1000 | 4100 | 6CrW2Si | 55 |
| QC11Y-32x6000 | 32 | 6000 | 1-3.5 | 3-10 | 50-950 | 6100 | 6CrW2Si | 55 |
| QC11Y-32x8000 | 32 | 8000 | 1.5-3.5 | 4-10 | 10-1000 | 8200 | Cr12MoV | 2-45 |
| QC11Y-40x2500 | 40 | 2500 | 2-4 | 4-10 | 20-1000 | 2600 | Cr12MoV | 55 |
| QC11Y-40x3200 | 40 | 3200 | 2-4 | 3-12 | 20-1000 | 3300 | 6CrW2Si | 75 |
| QC11Y-40x4000 | 40 | 4000 | 2-4 | 3-10 | 20-1000 | 4100 | 6CrW2Si | 2-45 |
| QC11Y-50x2500 | 50 | 2500 | 2-4.5 | 3-10 | 20-800 | 2600 | Cr12MoV | 2-45 |
