RC-1050 RC-2050 RC-3050 SINGLE HYDRAULIC CYLINDER
Product Features: 1. Its characteristic is that the jack is basically low, but it requires a higher head than RMC, which is suitable for this series; 2. The outer surface of the ...
Loading product images...
RC-1050 RC-2050 RC-3050 SINGLE HYDRAULIC CYLINDER
PDF Datasheet
We can supply according to your requirement.
Product Features:
1. Its characteristic is that the jack is basically low, but it requires a higher head than RMC, which is suitable for this series;

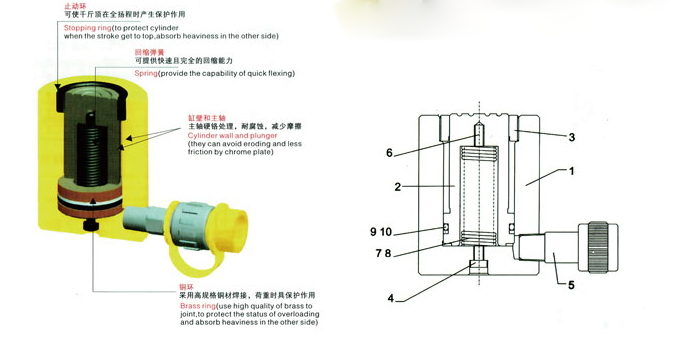

2. The outer surface of the spindle is treated with hard chrome to increase its service life;
3. The WRC top cover has universal function and can operate on inclined surfaces.
Techincal data:
| Item NO. | ProductNo | (T) Tonnage Tons | (mm) Work travel | (cm²) Cylinder Effective Area | (L) Oi Capacity | (mm) Collapsed Height | (mm) Extended Height | (mm) Outside Dia | (mm) Cylinder Bore Dia. | (mm) Plunger Dia | (ZG) Thread for input oil-por | (KG) Weight |
| RC-1050 | 111050 | 10 | 50 | 11.3 | 0.072 | 96 | 146 | 62 | 45 | 38 | 3/8° | 3 |
| RC-2050 | 112050 | 20 | 50 | 22 | 0.14 | 98 | 148 | 88 | 65 | 53 | 3/8* | 8 |
| RC-3050 | 113050 | 30 | 50 | 31.1 | 0.22 | 104 | 154 | 105 | 75 | 68 | 3/8* | 6.8 |
| RC-5050 | 115050 | 50 | 50 | 56.7 | 0.354 | 104 | 154 | 128 | 95 | 65 | 3/8 | 9.8 |
| RC-10050 | 111000 | 100 | 50 | 95 | 0.66 | 136 | 186 | 175 | 130 | 110 | 3/8* | 23 |
