CLWD Series Marine Horizontal Centrifugal Sanitary Pump

CLWD Series Marine Horizontal Centrifugal Sanitary Pump General Description CWL series pump is a horizontal single-suction centrifugal pump,Mechanical seal or packing seal.It c...

Centrifugal Pump2 Photos ISO9001 Supplier

Loading product images...

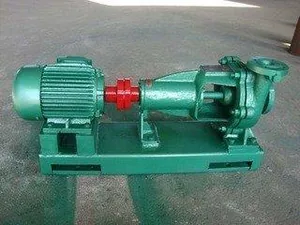

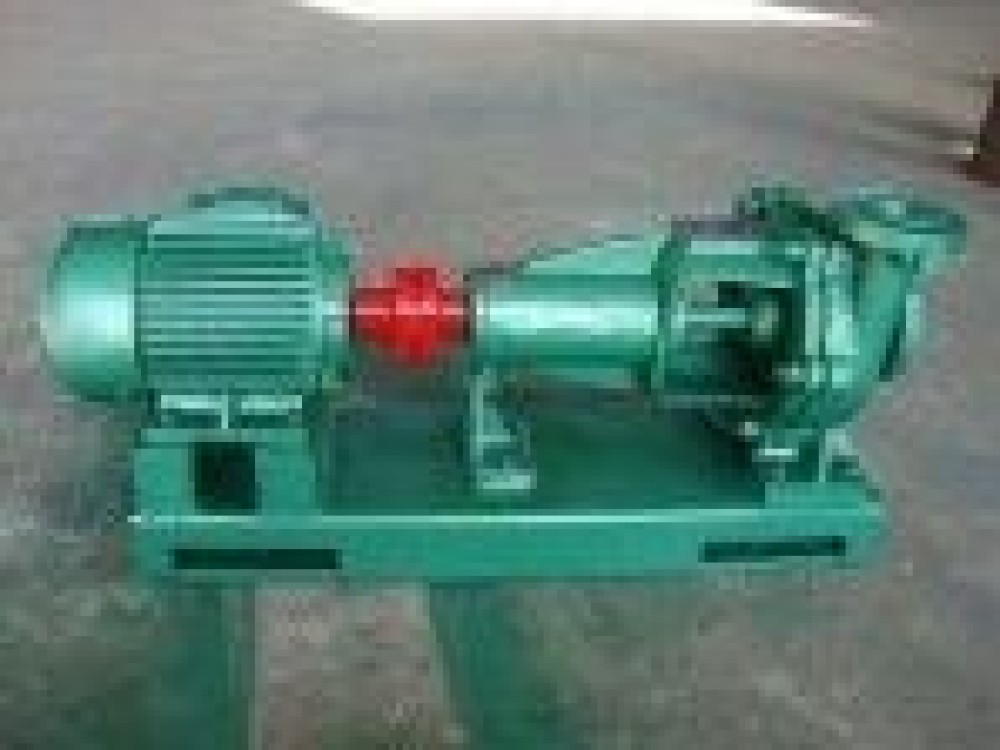

CLWD Series Marine Horizontal Centrifugal Sanitary Pump - Image 1

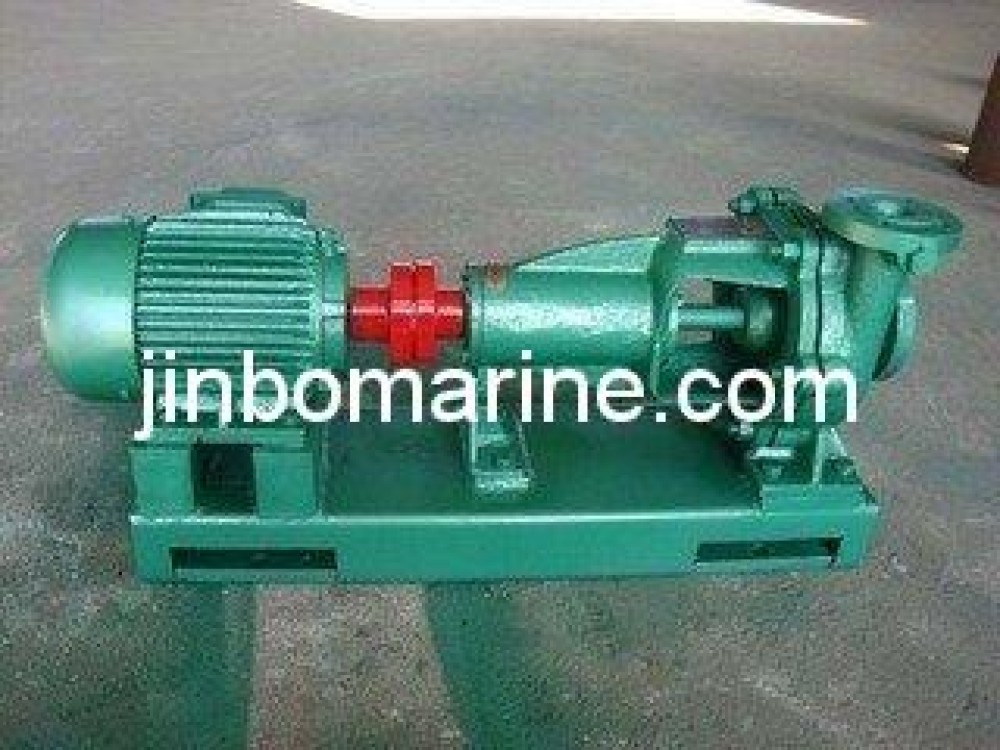

CLWD Series Marine Horizontal Centrifugal Sanitary Pump - Image 2

CLWD Series Marine Horizontal Centrifugal Sanitary Pump

Category: Centrifugal Pump

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote PDF Datasheet

We can supply according to your requirement.

General Description

CWL series pump is a horizontal single-suction centrifugal pump,Mechanical seal or packing seal.It can be used as cooling water pump, drainage pump, sanitary drains and household water pump driven by ship's motor.The transmission medium temperature should be lower than 75c.

Model explanation

32CWL-4

32:Inlet diameter 32mm

CWL:Marine horizontal centrifugal pump

D:Electromagnetic clutch type

4:Integral of the pump specific speed divided by 10

Performance Parameter

Type	50hz				60hz/3500				50/60hz
CWLD	Power/Motor	Capacity	Head	Weight	Power/Motor	Capacity	Head	Weight	Efficiency	(NPSH)r	inlet/outlet diam
kw	m3/h	m	kg	kw	m3/h	m	kg	%	m	mm
32CWL-4	1.1/Y802-2H	4	21	62	2.2/Y90L-2H	5	30	72	53	4	32/25
32CWL-3	1.5/Y90S-2H	4	30	60	2.2/Y90L-2H	5	43	75	42	4	32/25
40CWL-5	1.1/Y802-2H	8	21	50	2.2/Y90L-2H	10	30	60	59	4	40/32
40CWL-4	2.2/Y90L-2H	8	30	65	3/Y100L-2H	10	43	77	50	4	40/32
40CWL-3	3/Y100L-2H	8	42	87	4/Y112M-2H	10	60	100	43	4	40/32
50CWL-6	1.5/Y90S-2H	12	21	60	3/Y100L-2H	14	30	75	69	4	50/32
50CWL-4.5	3/Y100L-2H	12	30	82	4/Y112M-2H	14	43	97	55	4	50/32
50CWL-4	4/Y112M-2H	12	42	101	5.5/Y132S1-2H	14	60	126	50	4	50/40
50CWL-8	2.2/Y90L-2H	21	21	65	4/Y112M-2H	25	30	90	67	4	50/40
50CWL-7	4/Y112M-2H	21	30	95	5.5/Y132S1-2H	25	43	120	63	4	50/40
50CWL-5	5.5/Y132S1-2H	21	42	125	7.5/Y132S2-2H	25	60	130	59	5	50/40
50CWL-3.5	7.5/Y132S2-2H	21	60	134	15/Y160M2-2H	25	86	192	55	5	50/40
65CWL-11	4/Y112M-2H	35	21	96	7.5/Y132S2-2H	43	30	126	72	4	65/50
65CWL-8	5.5/Y132S1-2H	35	30	118	11/Y160M1-2H	43	43	173	70	4	65/50
65CWL-6	7.5/Y132S2-2H	35	42	131	15/Y160M2-2H	43	60	189	67	5	65/50
80CWL-14	5.5/Y132S1-2H	60	21	124	11/Y160M1-2H	72	30	179	75	4	80/65
80CWL-11	7.5/Y132S2-2H	60	30	132	15/Y160M2-2H	72	43	190	75	4	80/65
80CWL-8	11/Y160M1-2H	60	42	192	22/Y180M-2H	72	60	240	73	5	80/65
80CWL-6	18.5/Y160L-2H	60	60	224	30/Y200L1-2H	72	86	340	68	5	80/65
80CWL-5.5	22/Y180M-2H	60	75	260	37/200L2-2H	72	108	325	71	3.8	80/65
100CWL-18	11/Y160M1-2H	100	21	154	15/Y160M2-2H	120	30	212	78	4	100/80
100CWL-14	15/Y160M2-2H	100	30	213	22/Y180M-2H	120	43	252	78	4	100/80
100CWL-11	18.5/Y160L-2H	100	42	242	37/Y200L2-2H	120	60	365	77	5	100/80
100CWL-8	30/Y200L1-2H	100	60	255	55/Y250M-2H	120	86	440	75	5	100/80
100CWL-6	37/Y200L2-2H	100	85	350	75/Y280S-2H	120	122	640	71	5	100/80
150CWL-18	11/Y160M1-2H	160	13	286	15/Y160L-4H	192	18.5	312	81	5	150/125
200CWL-12	37/Y225S-4H	300	30	493	75/Y280S-4H	360	43	526	81	5	200/150
200CWL-18	30/Y200L1-4H	400	21	472	55/Y250M-4H	480	30	508	83	5	200/150
