RDHL Series Floater Level Meter

Nominal press. (PN): 0.6MPa, 1.0MPa, 1.6MPa Medium Visidity: 0.02Pa.S Explosion degree: Exia II CT3~6 Medium density:≥0.45g/cm3 Output signal: Switch, resistance, current, RS485 Protect...

Monitoring And Alarming Device1 Photos ISO9001 Supplier

Loading product images...

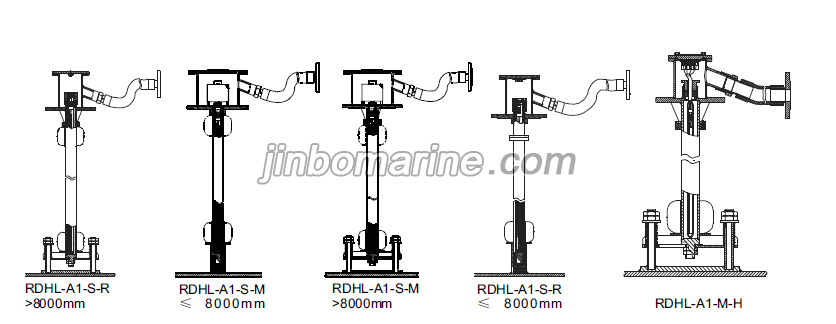

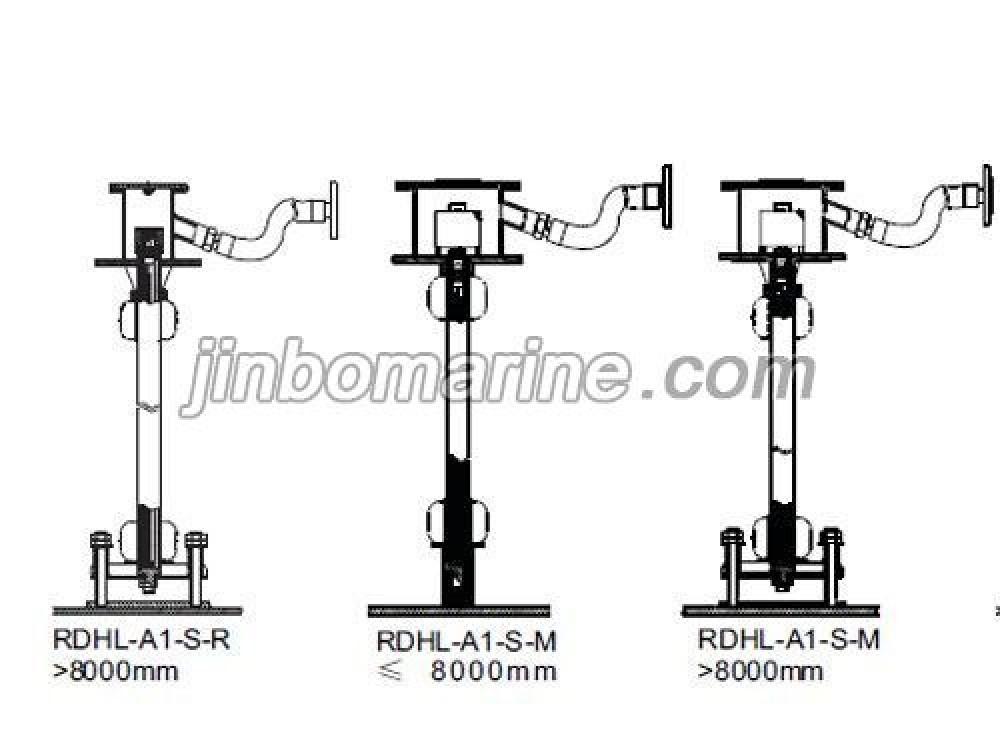

RDHL Series Floater Level Meter

Category: Monitoring And Alarming Device

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote PDF Datasheet

We can supply according to your requirement.

China RDHL Series Floater Level Meter:

Nominal press. (PN): 0.6MPa, 1.0MPa, 1.6MPa
Medium Visidity: 0.02Pa.S
Explosion degree: Exia II CT3~6
Medium density:≥0.45g/cm3
Output signal: Switch, resistance, current, RS485
Protection class: IP56, IP68

Features

Monitor level as well as temper. And press.
Level range is 0.3~18m
Compatible electromagnetic design, anti-surge, pluse resistance, antistaic, anti-voltage sags
Simple construction, easy installation, reliable operation, nit high pressure, anti ESD
Working temp. Range is -40~+85H
Preventing liquid fluctuation design and optionaly, supply SST protection pipe
