Working principle

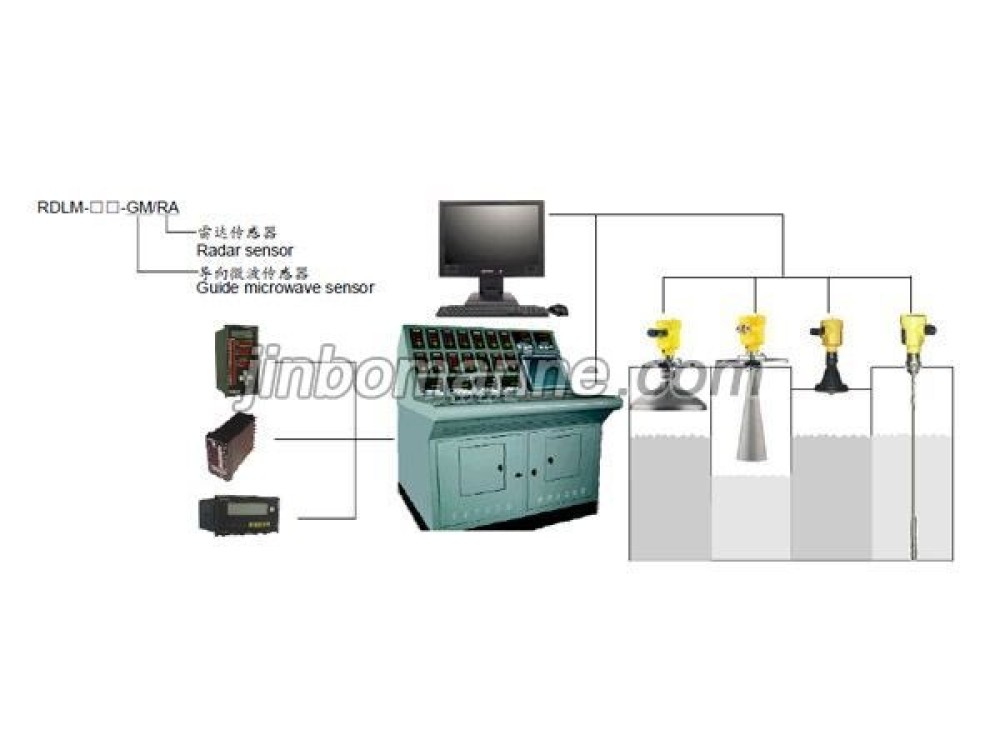

The system is used for continuous level measurement. The sensor of the system emits pulses. These pulses are reflected by the product and received by the antenna as echo...
RDLM Series Level Monitoring and Alarm System1 PhotosISO9001 Supplier

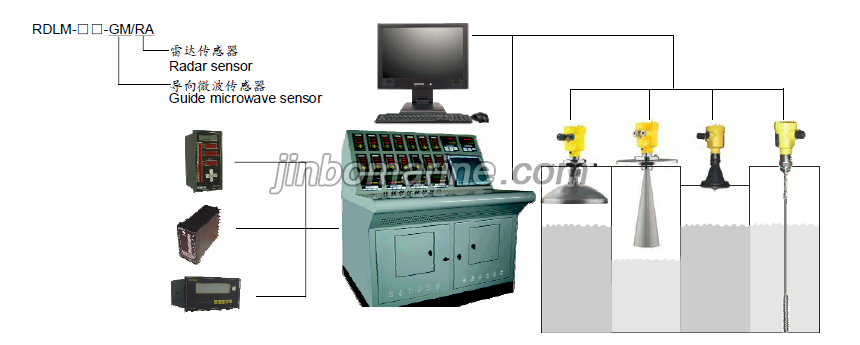

The system is used for continuous level measurement. The sensor of the system emits pulses. These pulses are reflected by the product and received by the antenna as echoes. The running time of the pulses from emission to receiption is proportional to the distance and hence to the level. The determined level is converted into an appropriate output signal and outputted as measured valve.
Tech. Spec.
Power: DC24V Protection class: IP67 Output signal: 4~20mAHART or PROFIBUS,2wires Ex-proof degree: Exia IICT6 Accurancy: 0.2%FS, 0.5%FS Type approval: CCS, GL, NK
Characteristic
Max measure height:35m Contactless measure method Medium temp.limit: 400 ,press.limit: 100 Bar Max reduce potential damage by all-weather and solid housing。 Fine resolution, without long term drift, process echo signal by knowledge ware Anti-temperature, anti high-pressure, anti enrich gas, anti layered gas, anti-sound, anti blast air, stive or steam Debug mode: PLICSCOM, VEGAPC DTM
