RDLM-04-LS Cargo Hold High Level/overfill Alarm System
The system is designed using the magnetic float switch principle which has been proven very
Effective. Each system consists of the float switch and alarming panel. Reed switches inside the ...
RDLM Series Level Monitoring and Alarm System1 PhotosISO9001 Supplier
Loading product images...
RDLM-04-LS Cargo Hold High Level/overfill Alarm System
China RDLM-04-LS Cargo Hold High Level/overfill Alarm System:

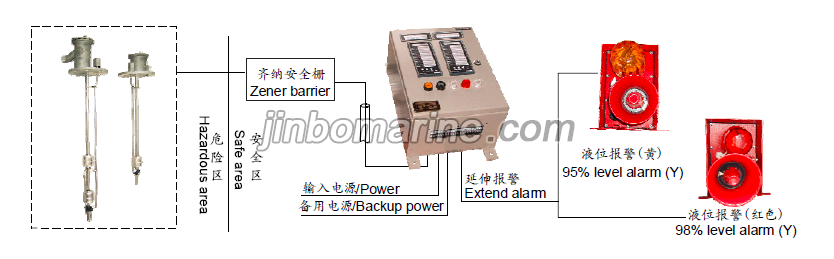

The system is designed using the magnetic float switch principle which has been proven very Effective. Each system consists of the float switch and alarming panel. Reed switches inside the stem Are activated by the permanent magnetic inside the float which rises and falls with the changes of liquid Level. Once the reed switch is activated, it sends an alarm signal to the indicating unit in the control Room.
Monitor liquid level for various tank, cabinet and water tank. Also, be used in cargo high alarm/overfill Alarm for oil tank, chemical tanker, LPG and so on.
Tech. Spec.
Power supply: AC220V/50Hz, AC110V/60Hz Operating temperature: -10 +90degree Medium density: >0.5g/cm3 Protection degree: IP56 Ex marking: Exira II CT6
Type approval: CCS, GL, NK
Characteristic
Simulate the position of over liquid level through the pull rod of level sensor Advanced technology, self-checking, loop failure monitoring
