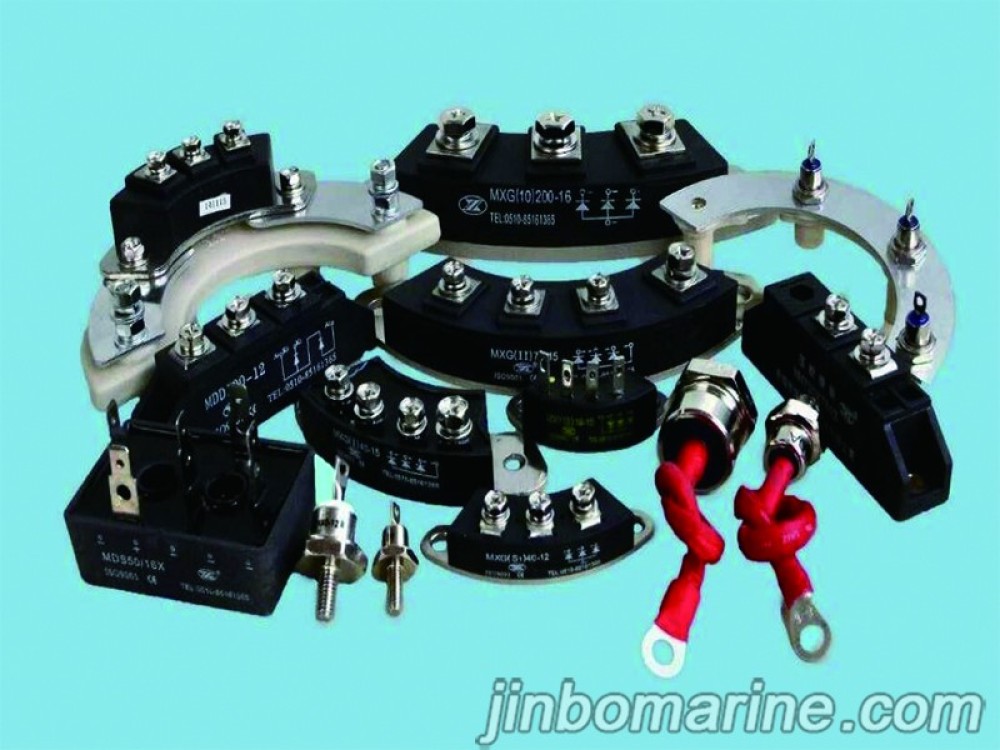

Rotating Rectifier Component Series
PDF Datasheet
We can supply according to your requirement.
China Rotating Rectifier Component Series:
Rotating Rectifier Component Series
| IF(AV) | D内径 | D外径 | D安装 | Wt | TJ | TC | Fig.No | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Tpye | Module tpye | A | mm | mm | mm | g | ℃ | ℃ | |||
| XZ-1(BC机) | ZX25 | 25 | 90 | 121 | 106 | 150 | -40~+150 | 85 | 33 | ||
| XZ-2 (224/274) | ZX25 | 25 | 72 | 150 | 103 | 550 | -40~+150 | 85 | 34 | ||
| XZ-3(314) | ZX40 | 40 | 114 | 224 | 179 | 1140 | -40~+150 | 85 | 35 | ||
| XZ-4(354) | ZX70 | 70 | 114 | 224 | 179 | 1140 | -40~+150 | 85 | 35 | ||
| XZ-5 | 35 | 30 | 84 | -145 | 135 | -40~+150 | 85 | 36 | |||
| XZ-6 | ZX40 | 40 | 70 | 154 | 93 | 360 | -40~+150 | 85 | 37 | ||
| XZ-7 | ZX70 | 70 | 122 | 210 | 145 | 200 | -40~+150 | 85 | 38 | ||
| XZ-8(104) | BY228 | 5 | 18.4 | 35.4 | 47.6 | 20 | -40~+125 | 80 | 39 | ||
| 102 | MXG/Y(II/S) | 70~150 | 80 | 200 | 59/71/90.5 | 1160 | -40~+150 | 85 | 40 | ||
| 103 | MXG/Y(S1) | 35 | 74 | 118 | 100 | 35 | -40~+150 | 85 | 41 | ||
| 105 | ZX70 | 70 | 70 | 150 | 88 | 580 | -40~+150 | 85 | 42 | ||
| 106 | ZX70 | 70 | 67 | 138 | 82.45 | 340 | -40~+150 | 85 | 43 | ||
| 107 | ZX70 | 70 | 124 | 206 | 155 | -40~+150 | 85 | 44 | |||
| 201 | MXG/Y(II/S) | 70~150 | 120 | 220 | 178 | 1350 | -40~+150 | 85 | 45 | ||
| 202 | MXG/Y(X) | 50~70 | 76 | 150 | 100 | 630 | -40~+150 | 85 | 46 | ||
| 203 | MXG/Y(II/S) | 70~150 | 124 | 200 | 155 | 1200 | -40~+150 | 85 | 47 | ||
| 204 | MXG/Y(X) | 50~70 | 124 | 200 | 155 | 840 | -40~+150 | 85 | 48 | ||
| 205 | ZX70 | 70 | 155 | 240 | 200 | 1110 | -40~+150 | 85 | 49 | ||
