SH210 Series Marine Turbocharger
With compact structure, SH210 series is a newly developed high pressure radio turbocharger especially for small-size mid-speed diesel engine and large-sized high-speed diesel and gas engine ...
Loading product images...

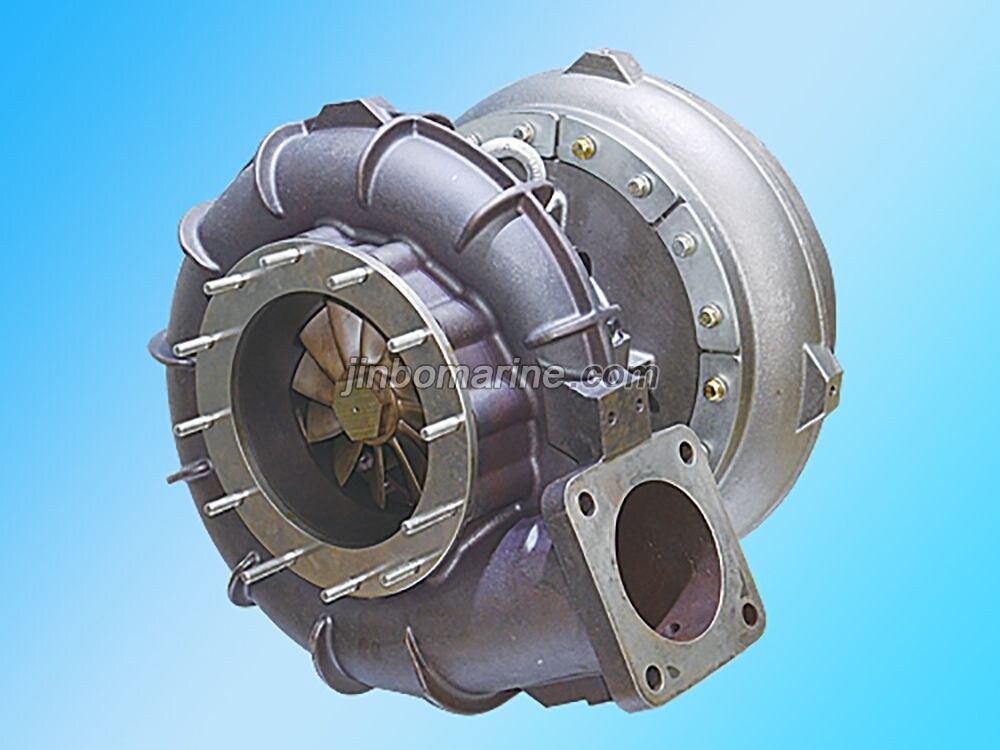

SH210 Series Marine Turbocharger
PDF Datasheet
We can supply according to your requirement.
China SH210 Series Marine Turbocharger:
With compact structure, SH210 series is a newly developed high pressure radio turbocharger especially for small-size mid-speed diesel engine and large-sized high-speed diesel and gas engine whose single unit output power is from 1000 kw to 1750 kw.The pressure ratio of this series at full load can reach 4.5, 4.6 and 5.0.
Product features
1. Three kinds of high pressure ratio and high efficiency centrifugal compressor have broaden the compressor feature map and improved the matching adaptability.
2. Milled impeller with pressure ratio up to 5.0 at full load, which improves the reliability of compressor impeller.
3. High efficiency and mixed flow turbine, completely suitable for pulse turbocharging system.
4. Extremely compact design, more convenient for turbocharger installation and replacement.
5. Water-cooled central housing structure, applicable to all applications.
6. Optional air inlet and exhaust outlet components, variable housing and positioning flange.
7. Comprehensive testing items including containment test guarantee the highest security.
2. Milled impeller with pressure ratio up to 5.0 at full load, which improves the reliability of compressor impeller.
3. High efficiency and mixed flow turbine, completely suitable for pulse turbocharging system.
4. Extremely compact design, more convenient for turbocharger installation and replacement.
5. Water-cooled central housing structure, applicable to all applications.
6. Optional air inlet and exhaust outlet components, variable housing and positioning flange.
7. Comprehensive testing items including containment test guarantee the highest security.
SH210 Series Marine Turbocharger Technical Specifications
| Turbo models | SH210A | SH210B | SH210C | |
| Rate speed | r/min | 46000 | 48000 | 48000 |
| Max speed | r/min | 49000 | 51000 | 51000 |
| Pressure ratio | 4.6 | 5.0 | 4.5 | |
| Air flow | kg/s | 0.8~2.0 | 0.9~2.4 | 0.9~2.8 |
| Turbine inlet Temperature | ℃ | 650 | ||
| Applied engine | Diesel engine,Gas engine,Dual full engine | |||
| Displacement | L | 35~85 | ||
| Engine power | KW | 1000~1750 | ||
| Application | Marine,Generator,Engineering machinery | |||
