WZW series self-priming polluted water pump
The pump widely applies to delivering polluted water, fibre, solid pareicles, slag, paperpulp and so on. Structure The pump is designed with store water room, horizontal bearing box. The...
Loading product images...

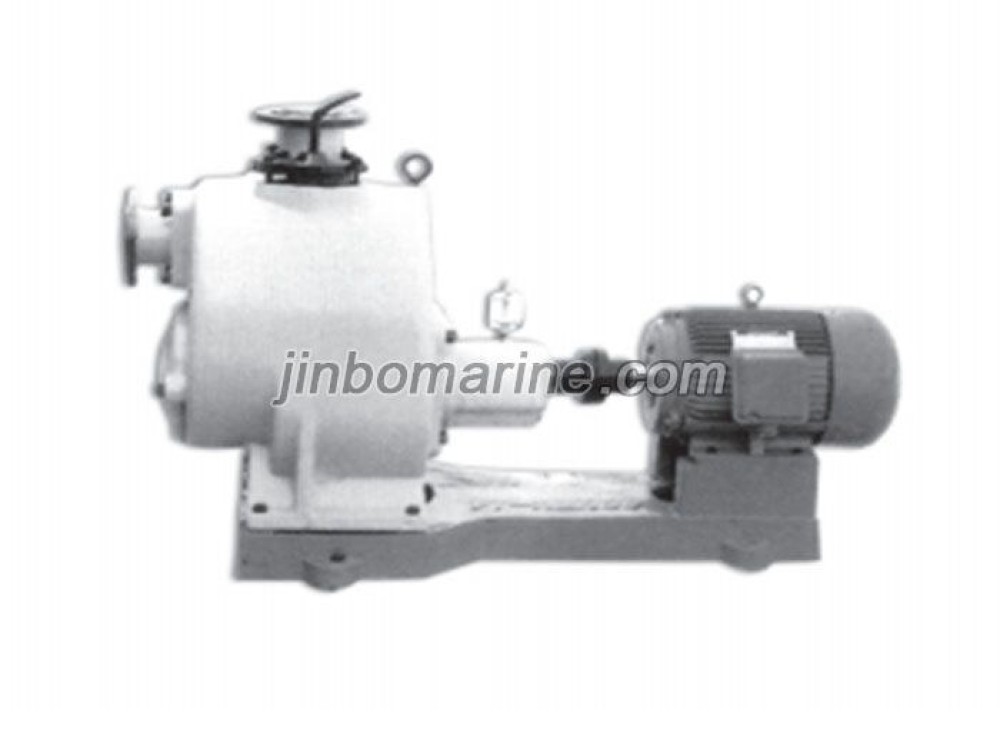

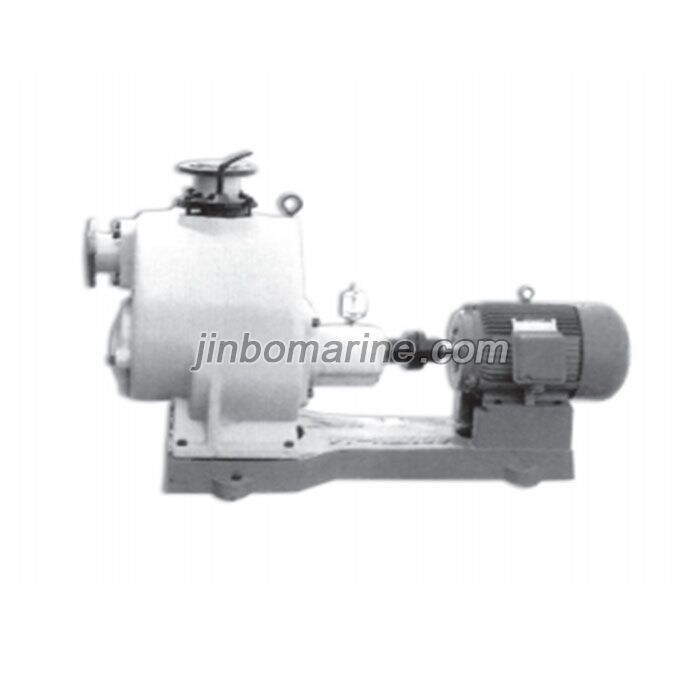

WZW series self-priming polluted water pump
PDF Datasheet
We can supply according to your requirement.
China WZW series self-priming polluted water pump:
The pump widely applies to delivering polluted water, fibre, solid pareicles, slag, paperpulp and so on.
Structure
The pump is designed with store water room, horizontal bearing box. There’re two kinds of axle-seals, mechanical seal and skeleton seal. There’s an effusion entrance at the top of pump in order to operate conveniently.
| Main Technical Data | ||||
| Type | Capacity | Head | Self-Priming Height | Motor Power |
| m3/h | m | m | kw | |
| 80WZW | 54 | 13 | 5.5 | |
| 100WZW | 100 | 16 | 7 | 11 |
| 150WZW | 200 | 22 | 7 | 22 |
