SQL50A Three‑Phase Bridge Rectifier Module
SQL50A Three‑Phase Bridge Rectifier Module Size : Principle : Type Parameter IO IFSM I2t VRRM IRRM VFM Tj Rjc VISO ...
Loading product images...

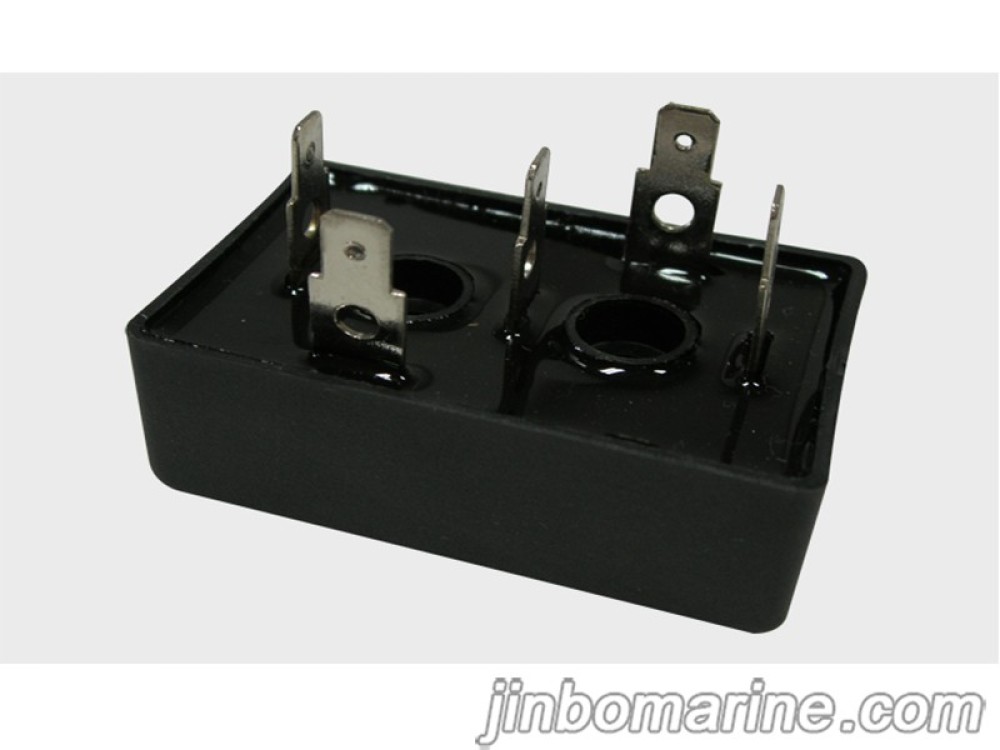

SQL50A Three‑Phase Bridge Rectifier Module
PDF Datasheet
We can supply according to your requirement.
China SQL50A Three‑Phase Bridge Rectifier Module:
SQL50A Three‑Phase Bridge Rectifier Module

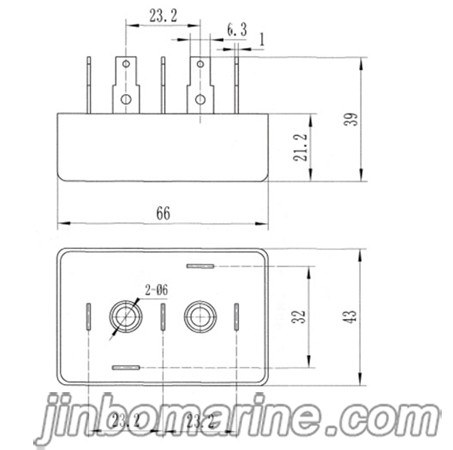

Size :

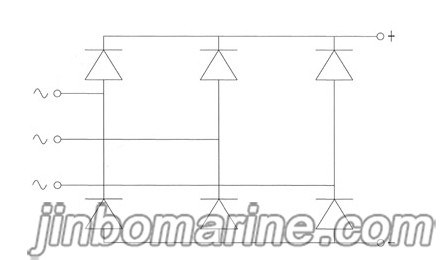

Principle :
| Type | Parameter | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IO | IFSM | I2t | VRRM | IRRM | VFM | Tj | Rjc | VISO | F-L | ||||
| A | A | A2S | V | mA | V | ℃ | ℃/W | V | Fitting Module N.m | Electrode Connection N.m | |||
| MDS | 30 | 270 | 0.8x103 | 800~1800 | ≤3 | ≤1.30 | -40~150 | 1.2 | ≥2500 | 3.5 | |||
| 60 | 360 | 1.2x103 | ≤3 | ≤1.30 | 0.8 | 3.5 | 2.3 | ||||||
| 75 | 450 | 1.8x103 | ≤5 | ≤1.30 | 0.6 | 4.5 | 3.5 | ||||||
| 100 | 630 | 3.2x103 | ≤5 | ≤1.30 | 0.4 | 4.5 | 3.5 | ||||||
| 150 | 900 | 8.6x103 | ≤9 | ≤1.30 | 0.3 | 4.5 | 4.5 | ||||||
| 200 | 1200 | 14.7x103 | ≤9 | ≤1.30 | 0.25 | 4.5 | 4.5 | ||||||
| SQL | 50 | 320 | 1.0x103 | ≤4 | ≤1.30 | 1.5 | 4.5 | ||||||
