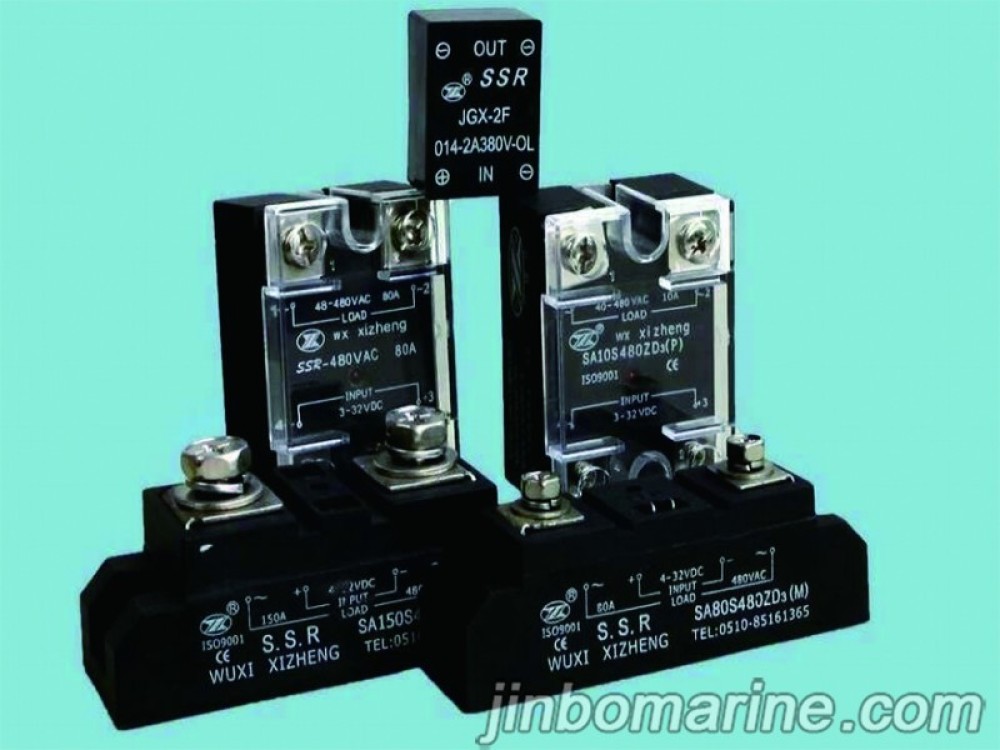

SSR 1

SSR

Category: Sensor
Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
FOB Price: Get Latest Price Now
Warranty: 12 Months unless specified otherwise
Place of Origin: China
Request a Quote PDF Datasheet

We can supply according to your requirement.

China SSR:

SSR

Parameters Symbol Parameter value Units
Rated on-state current Io 2 5 10 60 80 100 120 150 200 250
Input parameter
Control voltage Vc 3-32 V
Input currenton Ic 5-17 mA
Open voltage Von 3 V
Turn-off voltag Voff 1 V
Output parameter
Off state voltage Ve 40-480 V
Surge current ITSM 46 80 100 600 800 1000 1200 2000 2500 3400 A
On state voltage VTM 1.2 1.6 1.6 1.8 1.8 1.8 1.8 1.8 2 2 V
Off state current ID(RMS) 5 8 8 10 10 10 10 10 12 12 mA
Open Time Ton 0.5 s
Turn-off time Toff 0.5 s
dv/dt dv/dt 50 75 200 500 500 500 500 500 500 500 V/μ sec
Other parameter
Isolation voltage VISO 2500 V
Frequency range f 47-63 HZ
Use Temperature TJ -30~+80 ℃
