SWCM-10 small marine sewage treatment plant 10persons IMO 224 (67) standard
Description: This equipment SWCM square is SWCM round modification, suitable for ships with small engine room size, or customers have special requirements of the ship, technical sp...
Loading product images...
-standard-1_1000x750.jpg)
-standard-2_1000x750.jpg)
-standard-3_1000x750.jpg)
-standard-1_300x225.webp)
-standard-2_300x225.webp)
-standard-3_300x225.webp)

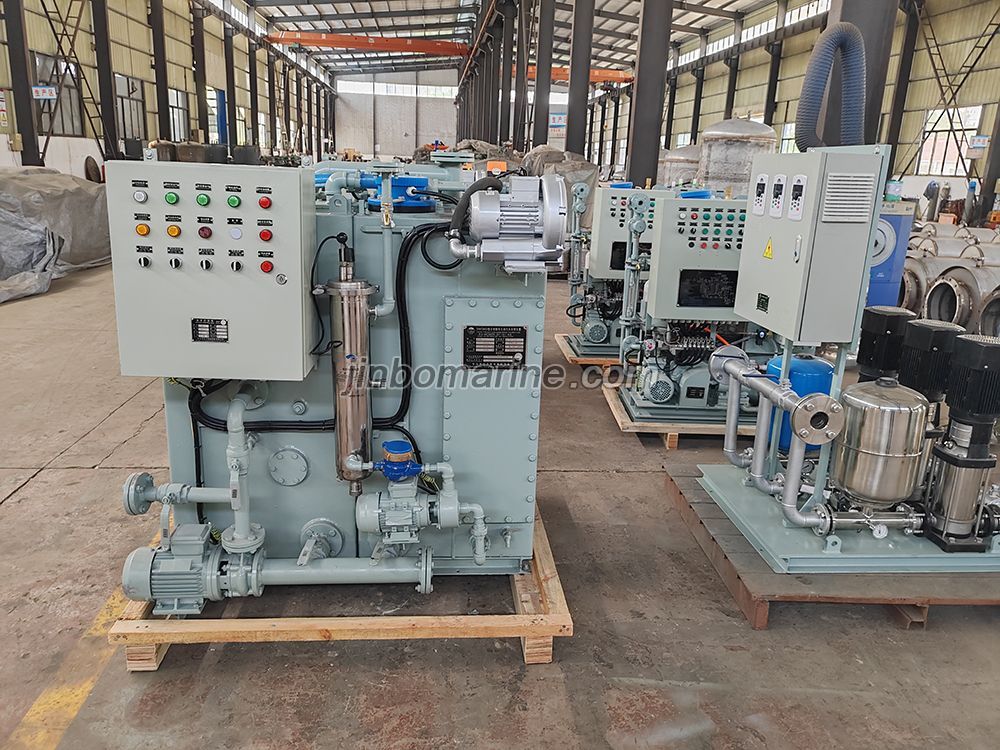

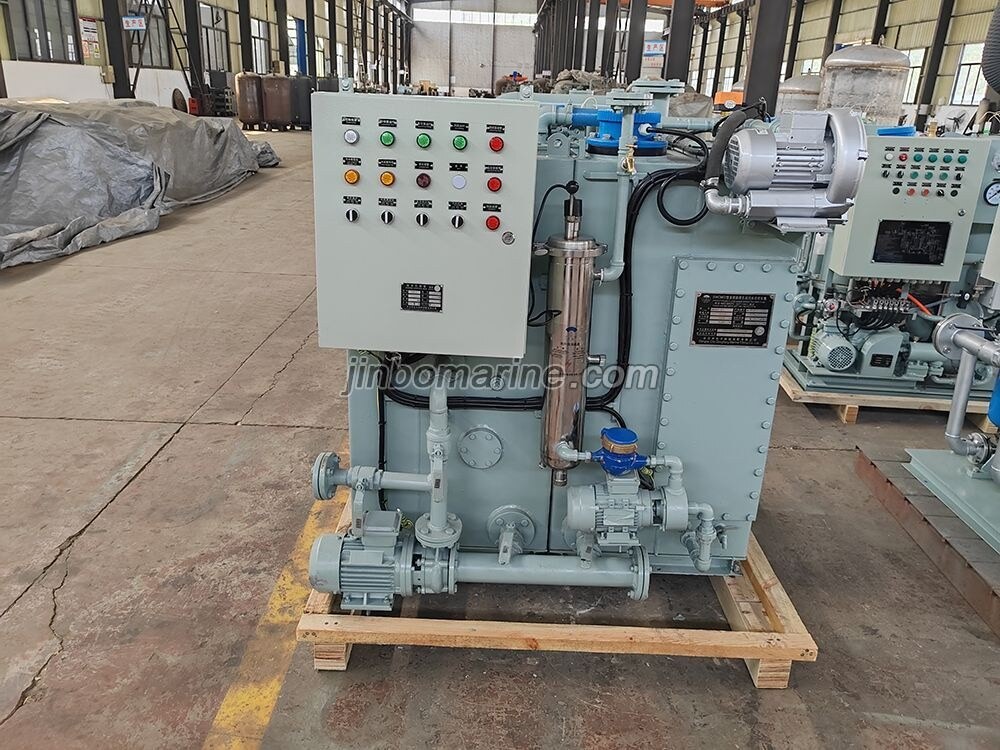

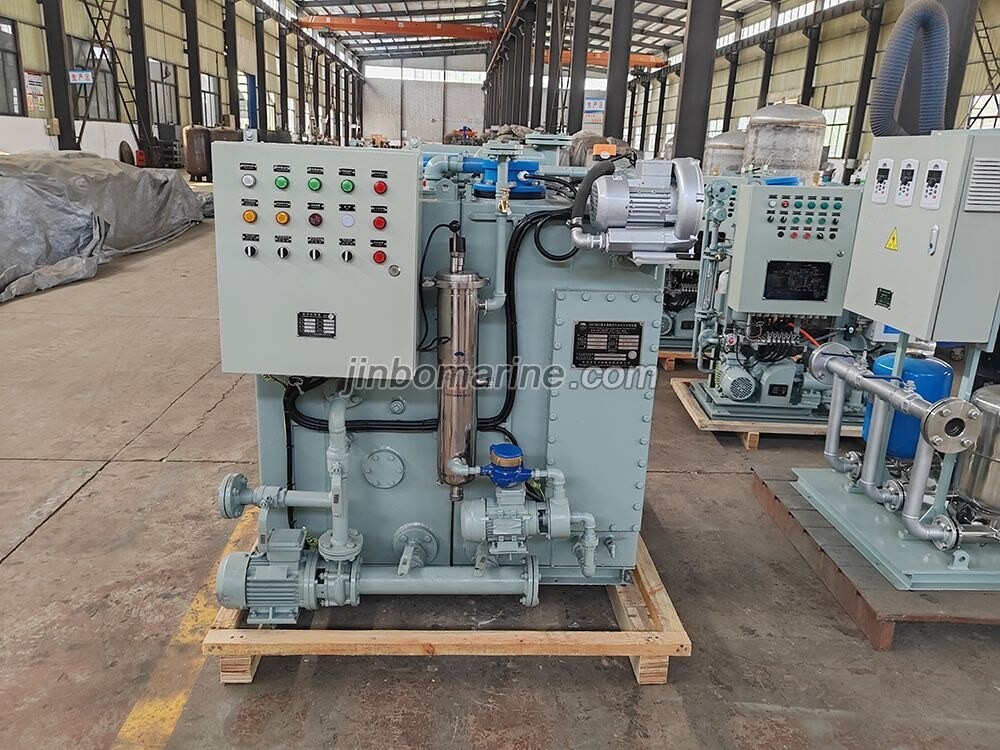

SWCM-10 small marine sewage treatment plant 10persons IMO 224 (67) standard
PDF Datasheet
We can supply according to your requirement.
Description:
This equipment SWCM square is SWCM round modification, suitable for ships with small engine room size, or customers have special requirements of the ship, technical specifications and requirements and SWCM round the same, to meet the latest IMO 224 (67) standards. At the same time, we can refit according to customer's request.
Techincal data:
| Model | LOAD | Rated capacity（men） | Max capacity（men） | External dimension（mm）L×W×H | weight | |||
| Average load（L/d） | Peak load（L/h） | Organic load(kgBOD5/d） | Dry weight（kg） | Wet weight（kg） | ||||
| SWCM-10 | 840 | 105 | 0.42 | 10 | 12 | 1510×1200x1300 | 900 | 1775 |
| SWCM-15 | 1190 | 149 | 0.595 | 15 | 17 | 1870x1200x1400 | 1000 | 2283 |
| SWCM-20 | 1540 | 193 | 0.77 | 20 | 22 | 1745x1400x1525 | 1000 | 2640 |
