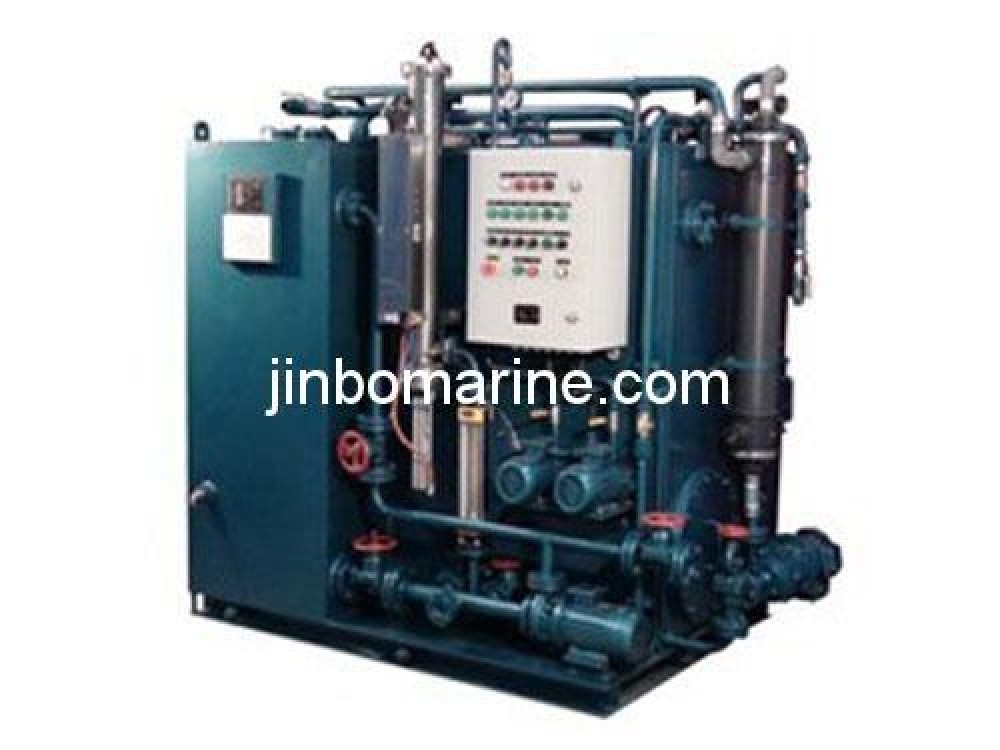

WCBx-B Series Sewage Treatment Plant
Description The method of combining ctalytic oxidation,ultraviolet disinfestations and sterilization is adopted in the WCBx-B series sewage treatment plant,it treats the domestic sew...
WCBx-B Series Sewage Treatment Plant
PDF Datasheet
We can supply according to your requirement.
Description
The method of combining ctalytic oxidation,ultraviolet disinfestations and sterilization is adopted in the WCBx-B series sewage treatment plant,it treats the domestic sewage of toilet from ship. And it optimal designed the biochemical reactor,the chlorine adding sterilization is adopted,so compare with the products of the same kind,it has the characteristics of small cubage,light weight,compact structure and without secondary pollution.The discharged water after the treatment of the device has reached the effluent standard stipulated internatioinally,and it accords with the requirement of resolution MEPC.159(55) of international marine organization environemental protection commission,and international waste fluid effluent standard. WCbx-B series sewage treatment plant consists of 5 watertight tanks. These 5 tanks respectively are a sewage tank,first-stage contact oxidation tank,second-stage contact oxidation tank,a settlement tank and a catchment tank. The device has strong corrosion resistance and applies to sea water to flush toilets.
Technical Data
| model parameter | WCBx -10B | WCBx -15B | WCBx -20B | WCBx -25B | WCBx -30B | WCBx -40B | WCBx -50B | WCBx -60B | WCBx -80B | WCBx -100B | WCBx -150B | WCBx -200B | WCBx -300B | WCBx -400B | WCBx -500B | WCBx -600B | |
| suitable number of people | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 100 | 150 | 200 | 300 | 400 | 500 | 600 | |
| treatment load (m3/d) | 0.7 | 1.05 | 1.4 | 1.75 | 2.1 | 2.8 | 3.5 | 4.2 | 5.6 | 7 | 10.5 | 14 | 21 | 28 | 35 | 42 | |
| organic load(kgBOD/d) | 0.35 | 0.53 | 0.7 | 0.88 | 1.05 | 1.4 | 1.75 | 2.1 | 2.8 | 3.5 | 5.25 | 7 | 10.5 | 14 | 17.5 | 21 | |
| discharge standard | BOD≤25mg/l;COD≤125mg/l;TSS≤35mg/l;COIL GROUP≤100/100ml;PH6～8.5 | ||||||||||||||||
| process pump | model | 32CGW-10-20 | 40CGW-20-20 | ||||||||||||||
| type | vercital type | ||||||||||||||||
| capacity (m3/h) | 10 | 20 | |||||||||||||||
| motor power (kw) | 1.5 | 2.2 | |||||||||||||||
| Air pump | model | CYBW-10 | CYBW-20 | CYBW-25 | CYBW-40 | ||||||||||||
| type | sliding vane type | ||||||||||||||||
| capacity (m3/h) | 10 | 20 | 25 | 40 | |||||||||||||
| motor power (kw) | 0.37 | 0.75 | 1.1 | 1.5 | |||||||||||||
| crushing pump | model | 0.5CWF-10 | 1CWF-11 | 2CWF-11 | |||||||||||||
| type | blade centrifugal type | ||||||||||||||||
| capacity (m3/h) | 5 | 10 | 20 | ||||||||||||||
| motor power (kw) | 1.1 | 1.5 | 2.2 | ||||||||||||||
| ultra filter | model | CSUF-5060 | CSUF-6050 | ||||||||||||||
| type | advanced anti-soil ultrafiltration membrane | ||||||||||||||||
| capacity (m3/h) | 1.1 | 2.1 | |||||||||||||||
| steri- lizer | model | niwon-1.5 | niwon-3 | ||||||||||||||
| wavelength | 253.7 | 253.7 | |||||||||||||||
| power(kw) | 0.3 | 0.38 | |||||||||||||||
| capacity (m3/h) | 1.5 | 3 | |||||||||||||||
| back flushing water pressure | 0.1-0.25mpa | ||||||||||||||||
| power supply | AC 3ph/380V/50Hz or AC 3ph/440V/60Hz | ||||||||||||||||
| control mode | automatic/manual | ||||||||||||||||
