Sea Water Desalinating Unit
Product Description 1.High quality reverse osmosis membrane Desalination rate>99.5% 2.High quality high pressure pump 3. Rust protection Corrosion resistant 4.Work...
Loading product images...

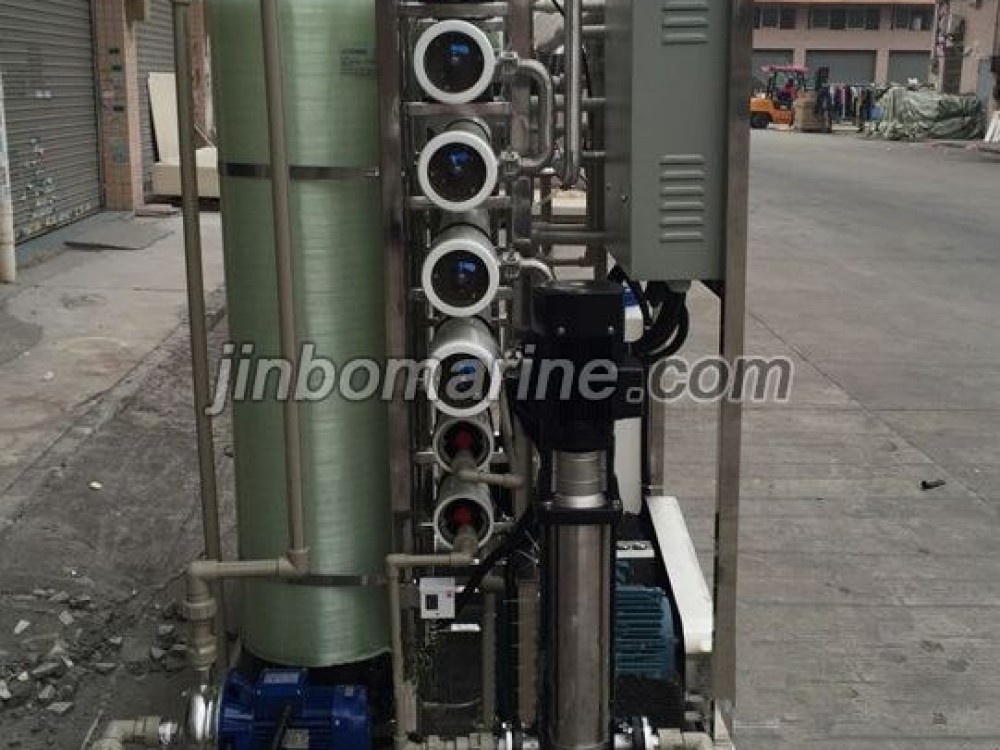

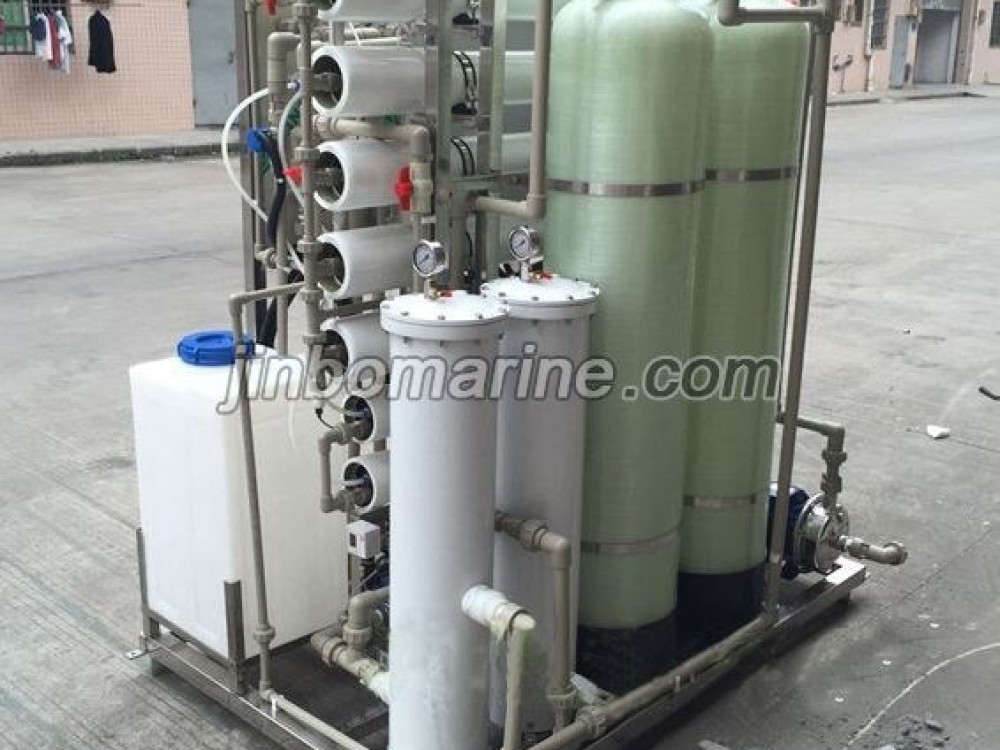

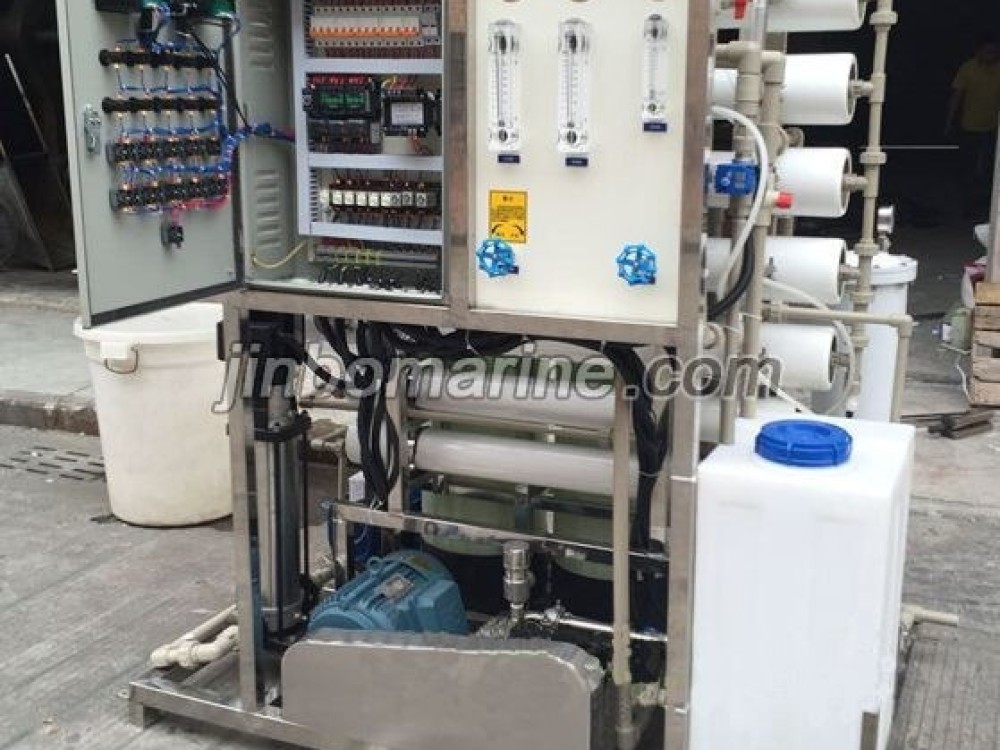

Sea Water Desalinating Unit
PDF Datasheet
We can supply according to your requirement.
Product Description
1.High quality reverse osmosis membrane Desalination rate>99.5%
2.High quality high pressure pump
3. Rust protection Corrosion resistant
4.Working life 15-20years Self protection design
5.Applicable power: 220V/50HZ 380V/50HZ 440V/60HZ
6.Product certificate: CCS
Technical Parameters
| TYPE | Output Water (m3/d) | Desalinating rate % | Saline Capacity of output water(mg/l) | Operation Pressure (Mpa) | Power Consumption (kw) | Weight (kg) | Size L*W*H (mm) |
| RDA-FSHB1.5 | 1.5 | 99.5 | ≤700 | 3.5-5.5 | 1.1 | 100 | 1100*500*460 |
| RDA-FSHB3 | 3 | 99.5 | ≤700 | 3.5-5.5 | 1.5 | 150 | 500*570*1350 |
| RDA-FSHB5 | 5 | 99.5 | ≤700 | 3.5-5.5 | 2.2 | 400 | 910*500*1540 |
| RDA-FSHB10 | 10 | 99.5 | ≤700 | 3.5-5.5 | 5.5 | 600 | 1520*7801935 |
| RDA-FSHB20 | 20 | 99.5 | ≤700 | 3.5-5.5 | 10 | 900 | 1520*830*2025 |
| RDA-FSHB30 | 30 | 99.5 | ≤700 | 3.5-5.5 | 15 | 1200 | 2440*1000*2120 |
| RDA-FSHB40 | 40 | 99.5 | ≤700 | 3.5-5.5 | 15 | 1600 | 2300*1100*2310 |
| RDA-FSHB50 | 50 | 99.5 | ≤700 | 3.5-5.5 | 18.5 | 2000 | 2300*1100*2310 |
