Marine Equipment
TICI(c)/TIOI(c) Flame Retardant Marine Telephone & Instrument Cable 250V
TICI(c) and TIOI(c) are produced according to IEC Standard, used for telephone and instrument, the voltage is 150V/250V. Technical Specification: Cable Const...
-Cable-01pic_1000x750.jpg)
-Cable-01_1000x750.jpg)
-Cable-01pic_300x225.webp)
-Cable-01_300x225.webp)
TICI(c)/TIOI(c) Flame Retardant Marine Telephone & Instrument Cable 250V
PDF Datasheet
We can supply according to your requirement.
China TICI(c)/TIOI(c) Flame Retardant Marine Telephone & Instrument Cable 250V:
TICI(c) and TIOI(c) are produced according to IEC Standard, used for telephone and instrument, the voltage is 150V/250V.
Technical Specification:

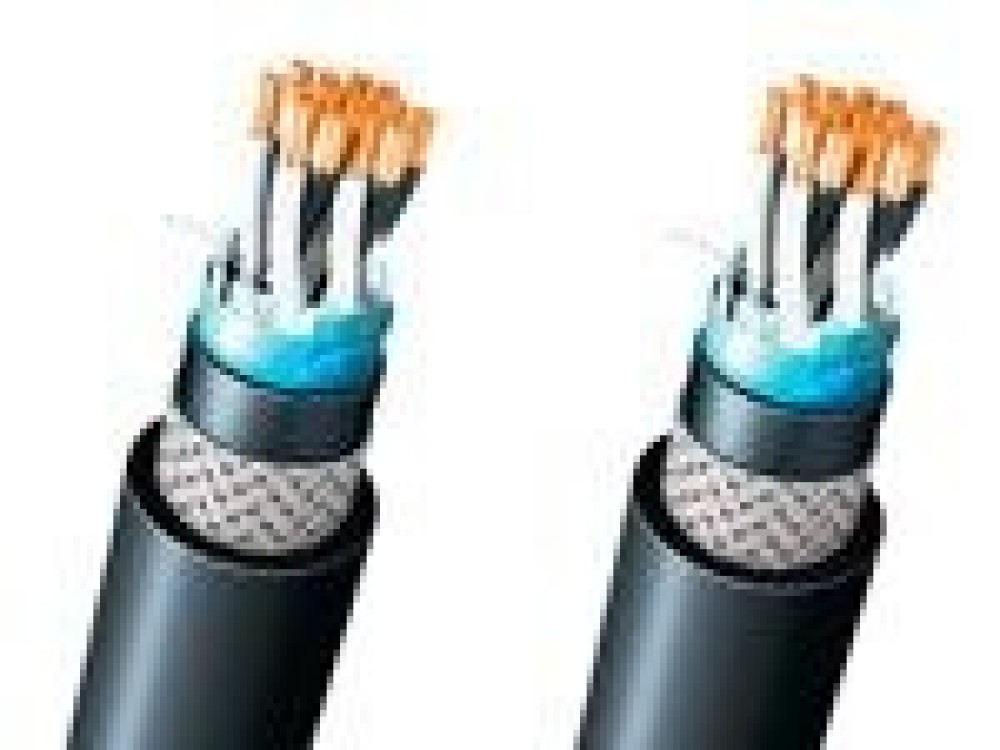

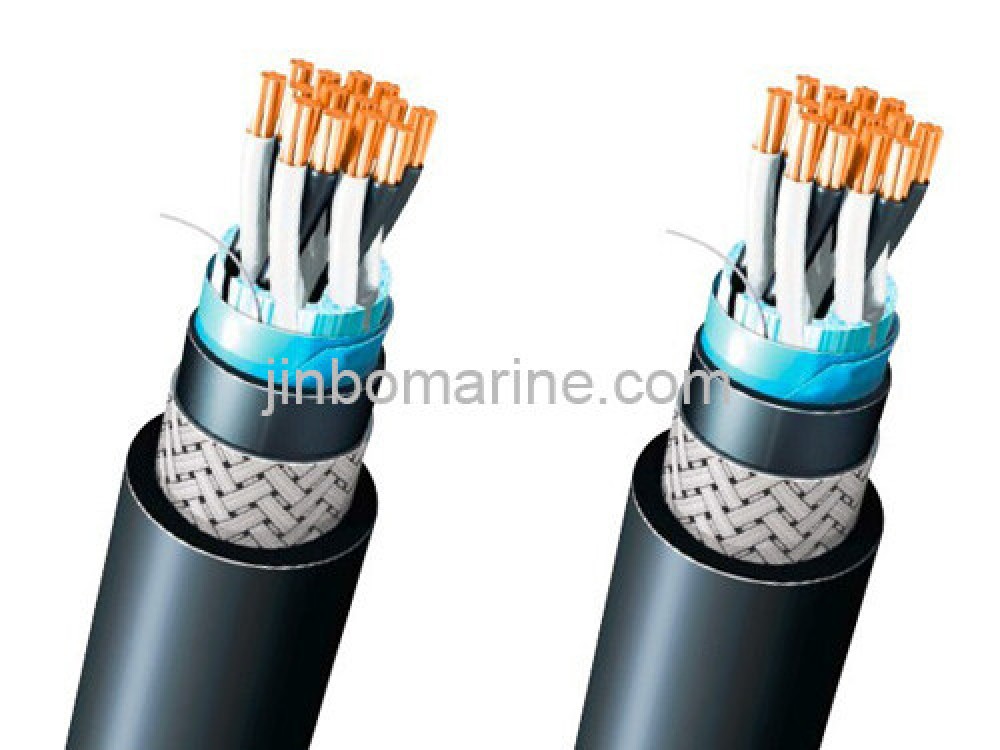

Cable Construction
Conductor: Tinned Copper. IEC 60228 Class 2
Insulation : XLPE Insulation
Collective (c): Pair and Triad laid up and collective screened by aluminum polyester tape with tinned copper wire
Inner Sheath : Halogen-free Thermoplastic Polyolefin(SHF1)
Armour : Galvanized Wire Braided/Tinned Copper Wire Braied
Outer Sheath : Halogen-free Thermoplastic Polyolefin(SHF1), Black
Standards
Design : IEC 60092-350, 376
Insulation Material : IEC 60092 -351
Sheath Material : IEC 60092-359
Flammability: IEC 60332-1 & IEC 60332-3 Category A
Halogen--free: IEC60754-1, IEC60754-2
Smoke Emission: IEC 61034-1, IEC61034-2
Cores & Size
Cores: 1P, 2P,3P,4P,5P,7P,10P,12P,14P,16P,19P,20P, 24P, 30P (P:Pair)
1T, 2T,3T,4T,5T,7T,10T,12T,14T,16T,19T,20T, 24T, 30T (Triad)
Size (sqmm): 0.75, 1, 1.5, 2.5
Feature
Halogen-free, Low Smoke, Flame retardant
Application
The cable is fixed installation on ships and offshore units, used for telephone and instrument.
