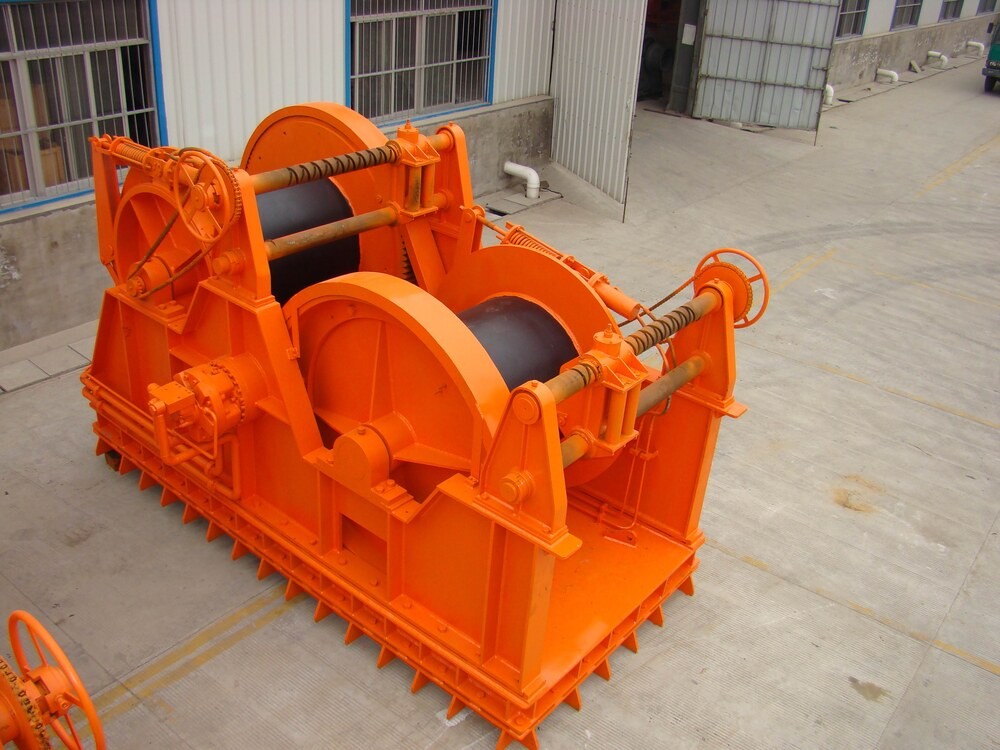

Towing Winch
General description
The Towing winch is widely used in tug boat, the powerful working load are used for the cargo shifting during the voyage, the auto spooling device is mainly for the wire rope control to avoid any fouling and twisting, keep the towing winch in good and smooth operation. The best choice for the coast water, domestic water for towing the barge like loaded with sand,core and other bulk cargo.
Two types towing winch:
Waterfall and parallel type are available for the tug boat
Main parameter
For the 500kn towing winch
Rated pull: 500kn
Nominal speed: 0-20m/min
Cable Diameter: 60mm
Capacity cable:300m
Holding load:1200 kn
Warping end load: 100kn
Working pressure: 16Mpa
Flow rate: 960L/min
We can adjust the working load and drum capacity according to customers requirements.
