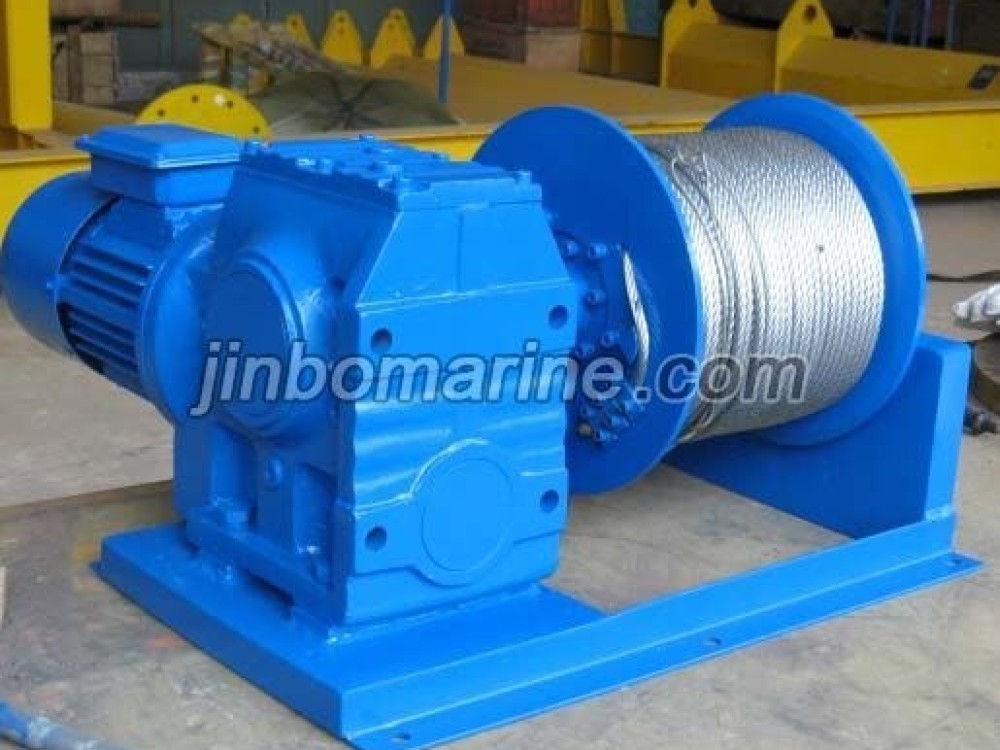

Turbine worm winch
Advantage:
- Modular design
- Braking, motor and speed reducer adopts triad structure, the overall volume is small, compact structure
- The worm gear and worm drive mechanism, self-locking performance is good
- Using hard tooth surface gear
- Adopts frequency conversion control, speed control performance is good, start-stop move smoothly
- Scram protection,Mechanical interlock
Parameter
| Model | Rated pull(KGS) | Speed(M/min) | Motor power | Wire dia | Drum capacity(m) | |||||
| First layer | Middle | Full | First layer | Full | Kw | mm | First layer | Middle | Full | |
| WJB-1 | 500 | 410 | 350 | 7.62 | 15.86 | 1.1 | 6.5 | 13.1 | 112.85 | 253 |
| WJB-2 | 500 | 410 | 350 | 9.76 | 22.27 | 1.5 | 6.5 | 13.1 | 112.85 | 253 |
| WJB-3 | 1000 | 680 | 550 | 6.71 | 12.2 | 1.5 | 8 | 12.5 | 70 | 152 |
| WJB-4 | 1000 | 680 | 550 | 10.37 | 19.25 | 2.2 | 8 | 12.5 | 70 | 152 |
| WJB-5 | 2000 | 1100 | 820 | 6.4 | 14.34 | 2.2 | 12 | 18.3 | 155 | 348 |
| WJB-6 | 2000 | 1100 | 820 | 10.68 | 23.79 | 3 | 12 | 18.3 | 155 | 348 |
| WJB-7 | 3000 | 2000 | 1500 | 7.32 | 12.8 | 3 | 13 | 20.1 | 107 | 235 |
| WJB-8 | 3000 | 2000 | 1500 | 10.68 | 18.59 | 5.5 | 13 | 20.1 | 107 | 235 |
| WJB-9 | 5000 | 5800 | 2800 | 8.23 | 14.337 | 5.5 | 16 | 23.8 | 134 | 302 |
| WJB-10 | 5000 | 5800 | 2800 | 11.9 | 19.51 | 7.5 | 16 | 23.8 | 134 | 302 |
