Vertical Capstan

Category: Yacht Windlass & Winch

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote PDF Datasheet

We can supply according to your requirement.

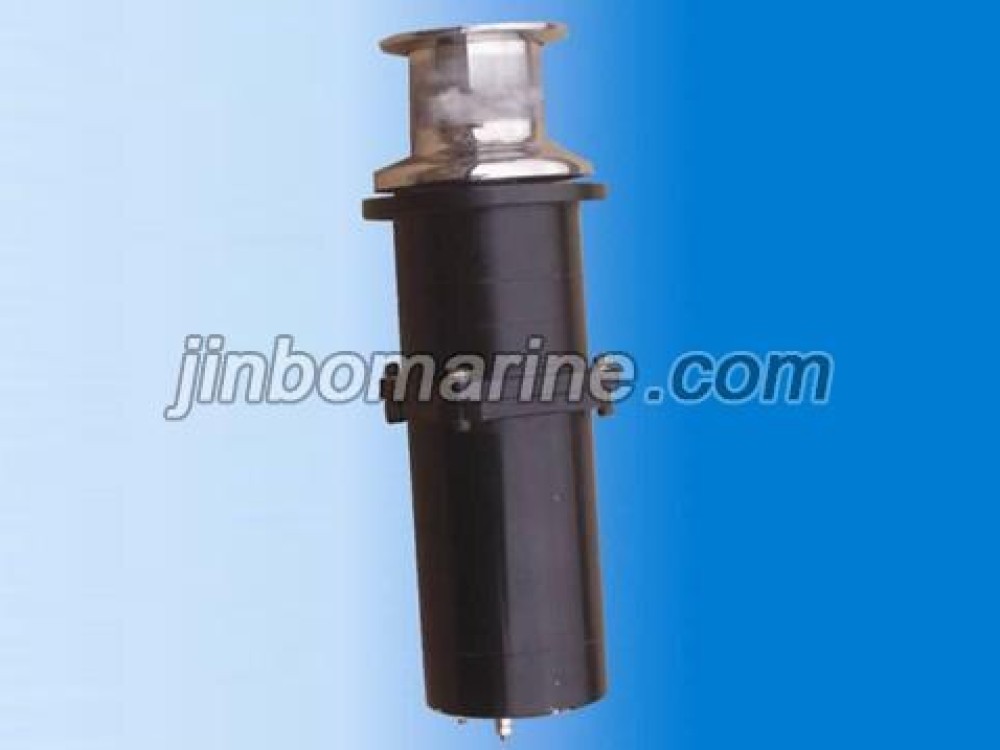

Vertical Capstan

Features

1.An extremely versatile vertical capstan or general purpose electric winch for use as an anchor winch,pot hauler or davit winch.

2.The compact, fully sealed gearbox is driven by a vertically mounted

3.Gearbox housings are marine grade alloy and drum is Stainless steel

4.line hauling from any direction

5.Easily disassembled for servicing

6.Fit include hand-switch, foot-switch, control box and wrench

Specifications

Model		Weight	Power	No load	Motor	Max.	Max.	Line	Rope
Net(DC)	DC	absorption	(W)	load	Pull	Speed	size
Capstan-001		7kg	12V/24V	60A	600	160kg	320kg	22m/min	12mm
Capstan-002		14kg	12V/24V	80A	1000	260kg	420kg	20m/min	14-16mm
Capstan-003		18kg	12V/25V	120A	1400	340kg	900kg	20m/min	16-18mm
