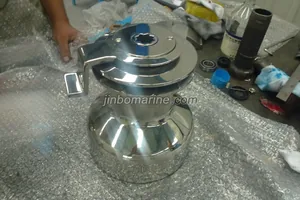

Manual Sailing Winch
General description
Manual Sailing winch are designed for boatbuilders and sailors. Winches feather mirror-polished drums with stainless steel tops, self-sailing jaws. And we've completely covered the winch tops so clothing or fingers don't get caught in moving parts. Available in 1or 2 speed self-sailing styles.
Specifications
| Model | Gear Ratio | Power Ration | SWL (KG) | Weight(kg) | Drum | Base | Line | Height | ||
| 1st | 2nd | 1st | 2nd | Dia | Dia | Size | ||||
| (mm) | (mm) | (mm) | (mm) | |||||||
| YDSW-001 | 2:1 | 16:1 | 570 | 3.8 | 65.7 | 121 | 8-12 | 115 | ||
| YDSW-002 | 2:1 | 4.5:1 | 14.2:1 | 29:1 | 690 | 5.5 | 74 | 138 | 8-12 | 145.5 |
| YDSW-003 | 1.8:1 | 6:1 | 13.5:1 | 40.5:1 | 790 | 6.5 | 74 | 148 | 8-12 | 158.5 |
| YDSW-004 | 2.5:1 | 7.8:1 | 13.8:1 | 44.6:1 | 1200 | 9.8 | 87 | 168 | 8-14 | 177.7 |
| YDSW-005 | 2.8:1 | 9.2:1 | 13.8:1 | 48.8:1 | 1250 | 12.3 | 93 | 181 | 8-14 | 196.8 |
| YDSW-006 | 3:1 | 11.5:1 | 13.9:1 | 55:1 | 1480 | 17.2 | 105 | 205 | 8-16 | 237.5 |
| YDSW-007 | 3.2:1 | 15:1 | 13.5:1 | 65:1 | 1700 | 23.5 | 118 | 231 | 8-18 | 253.5 |
Feathers:
Simple servicing: No tools are required to service the winches
Gripping surface drum: The drum's gripping surface is shaped for each winch size and drum material and features ribs to maximize gripping power and greatly reduce line wear.
Whole Mirror-polished: The whole winch mirror-polished, whole stainless steel
Wave spring jaw and feeder arm: The cast stainless steel feeder arm position can be adjusted to smoothly feed the rope out of the jaws and into the cockpit.
