Visual & Radio Aids to Navigation
PDF Datasheet
We can supply according to your requirement.
Specifications

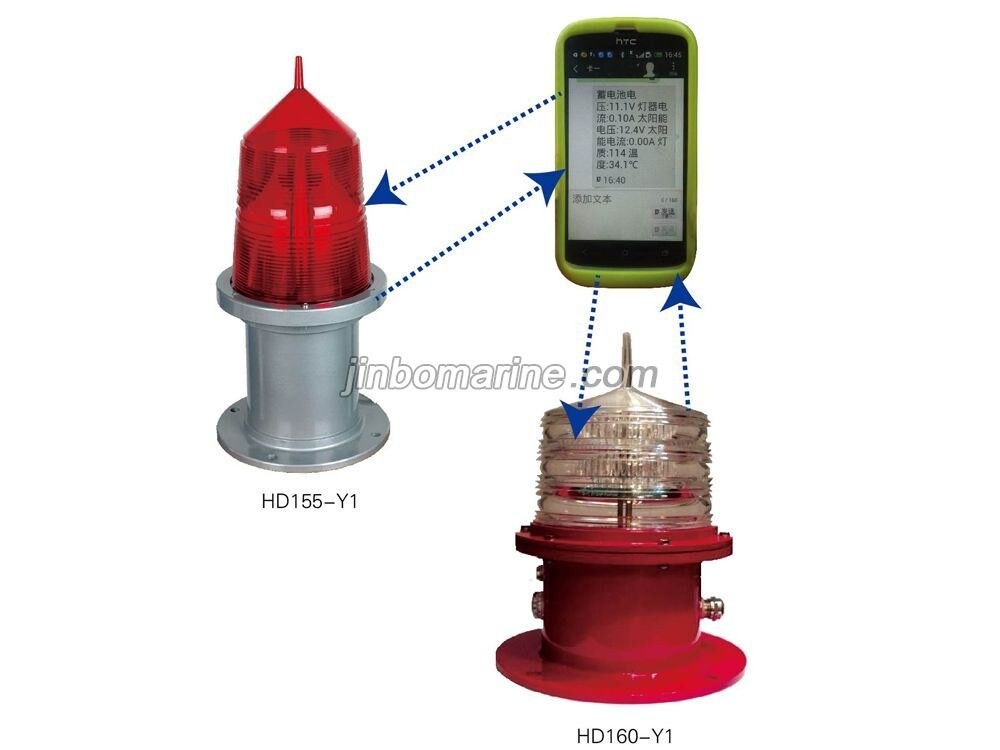

| Type | HD160-Y1 | HD155-Y1 |
| Voltage | DC12V | DC12V |
| Power | 8W | 10W |
| Source | LED Navigation | LED Navigation |
| Range | >4.5nm | >6.4nm |
| Characteristic | 256 program | 256 program |
| Color | Red,Yellow,Green,White | Red,Yellow,Green,White |
| Optical sensitivity | 300LX | 300LX |
| Working Environment | Outdoor Waterproof | Outdoor Waterproof |
| Protection | IP65 | IP65 |
| Working Temperature | -25-65℃ | -25-65℃ |
| Installation | 4-Φ13/Φ195mm | 4-Φ13/Φ195mm |
| Weight | 11kgs | 11kgs |
