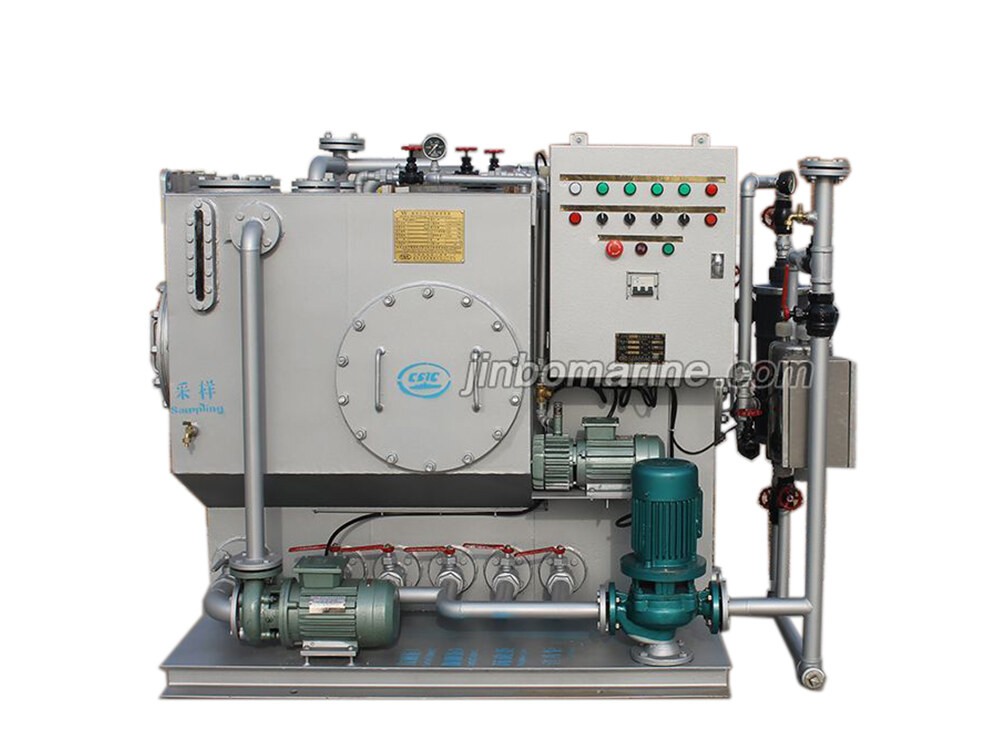

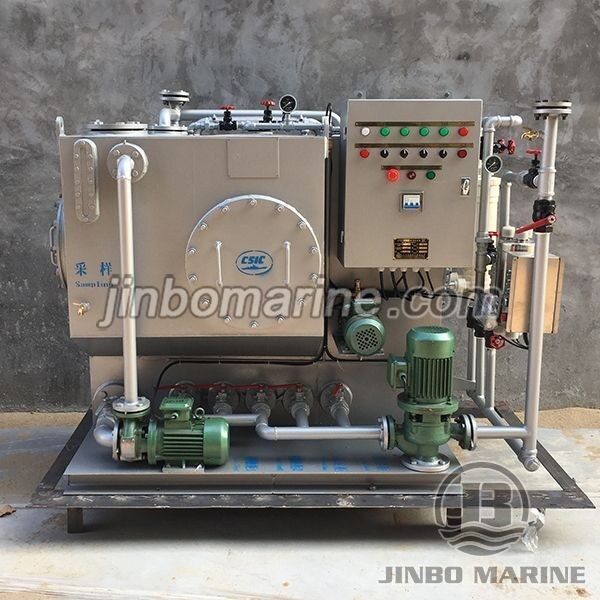

WCMBR-30 Marine Sewage Treatment Plant

After the sewage from toilet crushed completely flows into the sewage tank by the way of nature inflow to contact oxidation tank to aerate by air pump, and to contact with biofilm by a certain velocity flowing though fillings. The organic pollutant will be digested by biofilms, and CO2 and water are generated. After further treatment of the biofilem in the second contact tank, the sewage will flow into settlement tank for settlement and deslagging, and then is sent to catchment tank. When the catchment tank collects a certain amount of liquid, the process pump is started and the liquid is put into the ultrafilter to filter the slag by the water pump. The ultraviolet sterilizing plant kills the bacteria in the fluid, and treated water is discharged overboard as an effluent. The sludge in the settlement tank will be returned to first -stage contact tank in airlift device , which will cause a certain back flow ratio. This will enhance output water quality, reduce input water impurity, adjust and stabilize pulse loading, and increase activation of biofilm, improve improve organic loading rate in the contact tank.
