WLG Type Metallic Sheath Thermometer
Product Description: Metallic protector thermometer consists of glass thermometer and metallic protector.It is used to measure medium temperature of liquid,gas of tank and pipeline in ...
Loading product images...
WLG Type Metallic Sheath Thermometer
PDF Datasheet
We can supply according to your requirement.
Product Description:

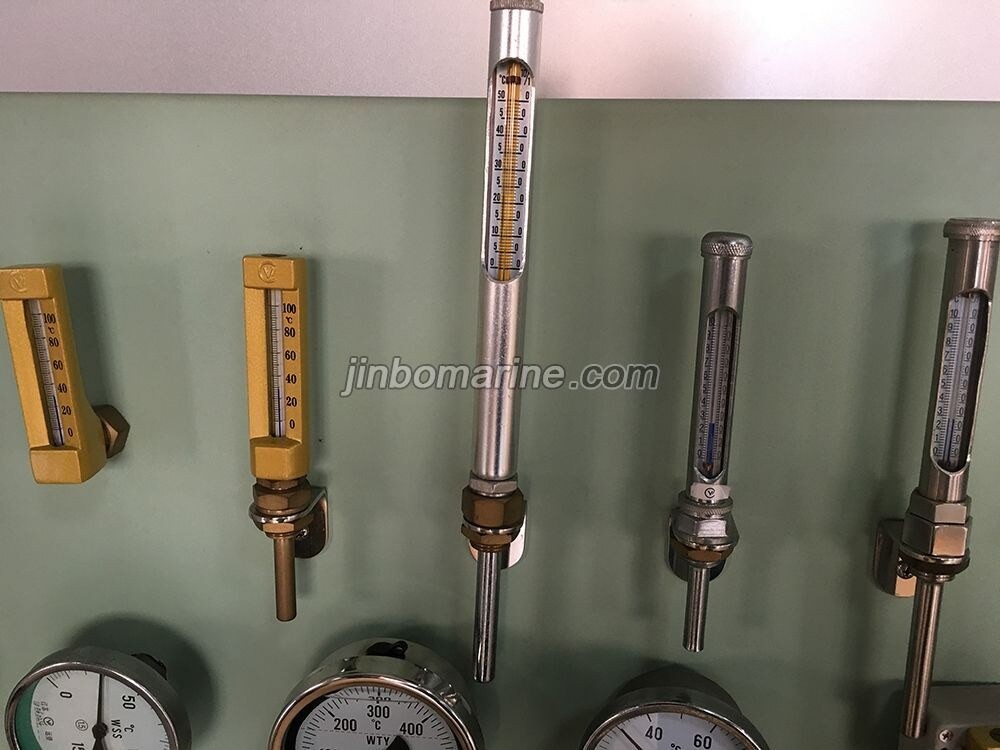

Metallic protector thermometer consists of glass thermometer and metallic protector.It is used to measure medium temperature of liquid,gas of tank and pipeline in ship and other industrial equipment.
Structure type: Straight type, 90 degree angle type, 135 degree angle type.
Main Technical Specification:
| Measurement range (℃) | Temperature sensor liquid | Model | Nonimal length(mm) | Connection size | |
| Upper body length | Lower body length | ||||
| -50~50 -30~50 -30~100 -30~160 0~50 0~100 0~150 0~200 0~300 0~350 0~400 0~450 0~500 0~600 | Organic liquid Mercury(Hg | WLG-11-C | 130 ±2 | 25 30 40 60 80 100 120 160 200 | G1/2" G3/4" M20x1.5 M27x2 |
| WLG-12-C | 150 ±2 | ||||
| WLG-13-C | 200 ±2 | ||||
| WLG-421-C | 110 ±2 | ||||
| WLG-422-C | 150 ±2 | ||||
| WLG-423-C | 200 ±2 | ||||
| 0~100 0~150 0~200 | Organic liquid | WLG-1/2P-C | 110 | 40 | G1/2" |
| WLG-1/2PL-C | 110 | 100 | G1/2" | ||
| WLG-3/8-C | 70 | 25 | G3/8" | ||
| 0~500 0~600 | Mercury(Hg) | WLG-162-C | 162 | 95 | G1/2" |
| WLG-212-C | 212 | 125 | G1/2" | ||
| WLG-242-C | 242 | 95 | G1/2" | ||
| Measuring accuracy: ±1~2 scale | |||||
Model Design:
