WZPK-23R-C Type Temperature Transmitter
Product Description: WZPK-21R-C-E Type Temperature Transmitter adopt high quality platium resistor as temperature sensing element,it features high measuring accuracy,steady and reliabl...
Loading product images...

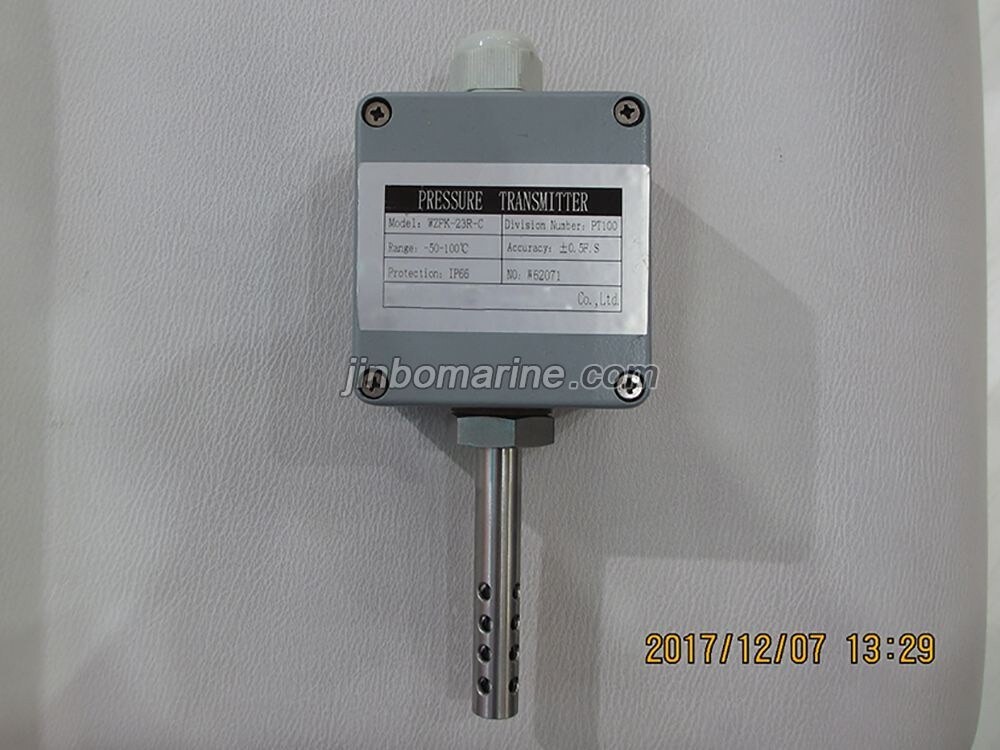

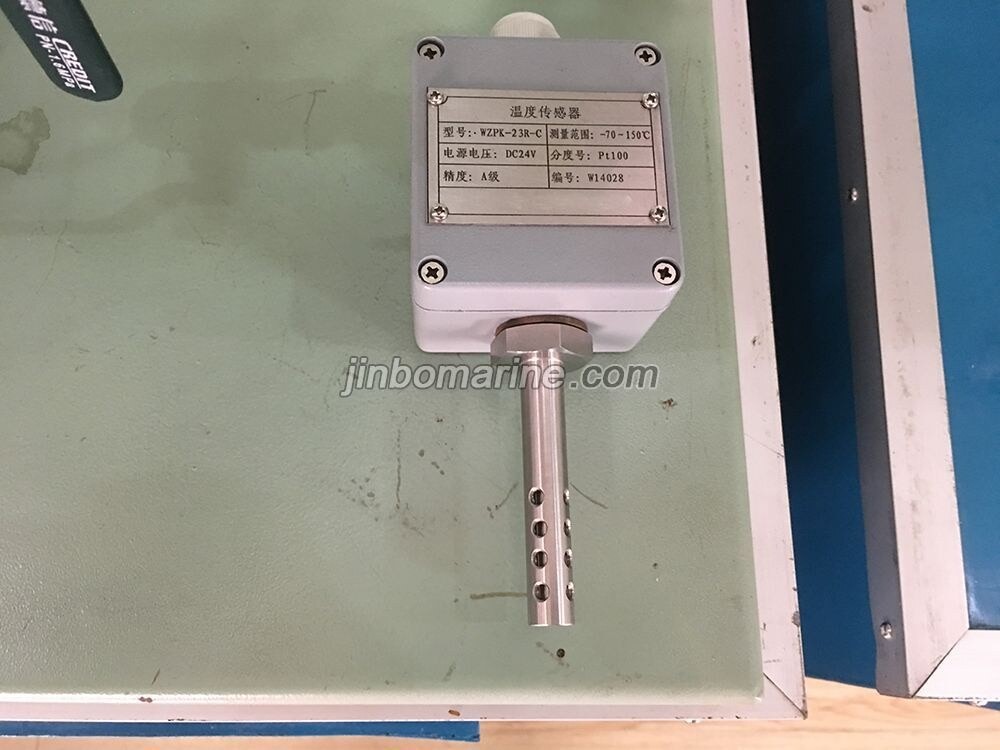

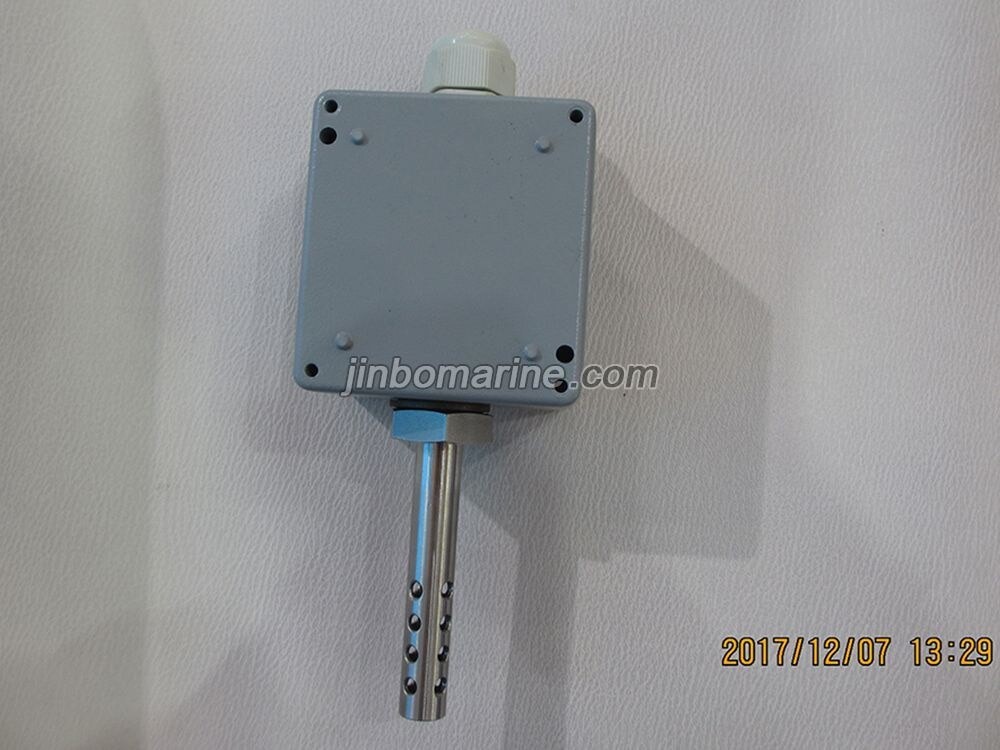

WZPK-23R-C Type Temperature Transmitter
PDF Datasheet
We can supply according to your requirement.
Product Description:
WZPK-21R-C-E Type Temperature Transmitter adopt high quality platium resistor as temperature sensing element,it features high measuring accuracy,steady and reliablity,long lifetime. It has widely used to measure temperature of liquid,gas and steam in ship and other industrial equipment.
Main Technical Specification:
| Model | Temperature-sensing element | Measuring range | Protective cover | Nominal pressure | Output signal | |
| Material | Diameter | |||||
| WZPK | pt100 pt500 pt1000 | -70~500 centigrade | SUS304 SUS316L single/double layer | 12mm 16mm | 1.0Mpa | Output resistance(2 wires,3 wires) Output DC 4~20mA(2 wires) |
