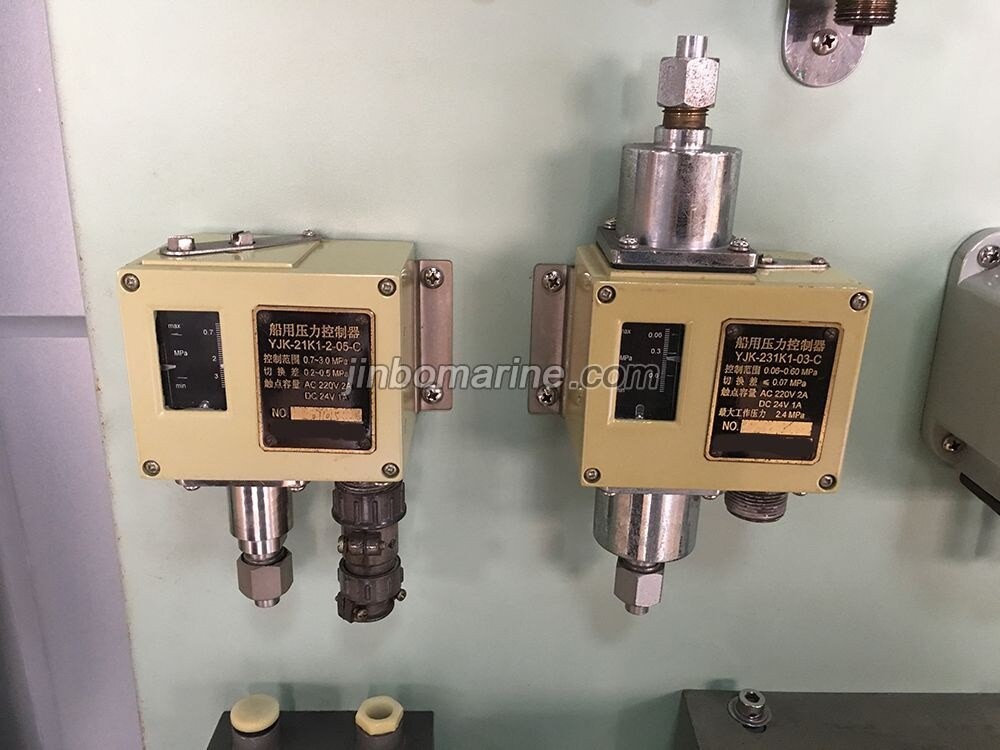

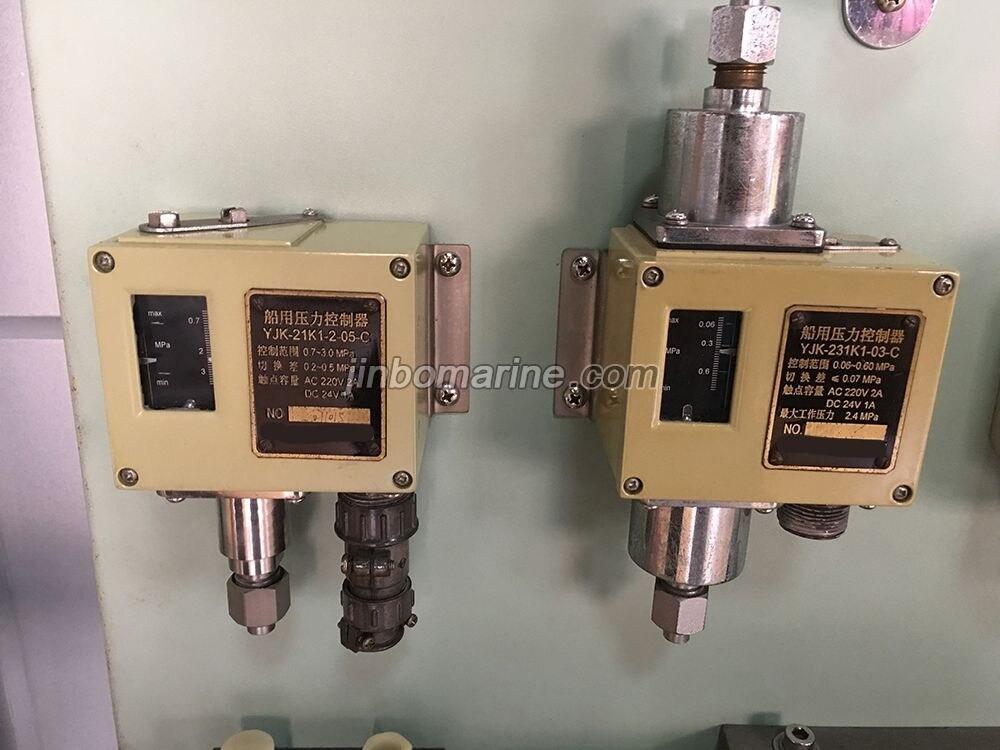

YJK Type Marine Pressure Controller
Product Description: YJK Type Pressure Controller,pressure differential controllers can be used to control pressure and pressure differential of gas and liquids etc. in ship and other ...
Loading product images...
YJK Type Marine Pressure Controller
PDF Datasheet
We can supply according to your requirement.
Product Description:
YJK Type Pressure Controller,pressure differential controllers can be used to control pressure and pressure differential of gas and liquids etc. in ship and other industrial instrument.
Contact capacity:AC220V 1A.
Main Technical Specification:
| Model | Set value range(Mpa) | Adjustment range of differential gap(mpa) | Error of set value (Mpa) | Error of repeatability (Mpa) | Remarks | |
| min switching differential | max switching differential | |||||
| YJK-21K 1-1-01 | -0.03~0.4 | ≤0.04 | ≥0.25 | ±0.016 | ≤0.005 | The controlled meidum is not corrosive to brass, lead, stainless steel and Sn-cu solder |
| YJK-21K 1-2-01 | ≤0.04 | ±0.016 | ||||
| YJK-21K 1-1-1-01 | ||||||
| YJK-21K 1-1-02 | 0.1~0.7 | ≤0.1 | ≥0.25 | ±0.016 | ≤0.005 | |
| YJK-21K 1-2-02 | ||||||
| YJK-21K 1-1-03 | 0.7~1.9 | ≤0.2 | ≥0.5 | ±0.076 | ≤0.015 | |
| YJK-21K 1-1-04 | -0.09~0.25 | ≤0.04 | ≥0.1 | ±0.016 | ≤0.005 | |
| YJK-21K 1-1-1-04 | ≤0.04 | |||||
| YJK-2-OM5-04 | -0.07~0.25 | ≤0.03 | ±0.016 | ≤0.005 | ||
| YJK-21K 1-2-05 | 0.7~3.0 | ≤0.2 | ≥0.5 | ±0.076 | ≤0.015 | |
| YJK-231K 1-01 | 0.02~0.25 | ≤0.04 | ±0.01 | ≤0.004 | ||
| YJK-231K 1-03 | 0.06~0.6 | ≤0.07 | ±0.025 | ≤0.008 | ||
