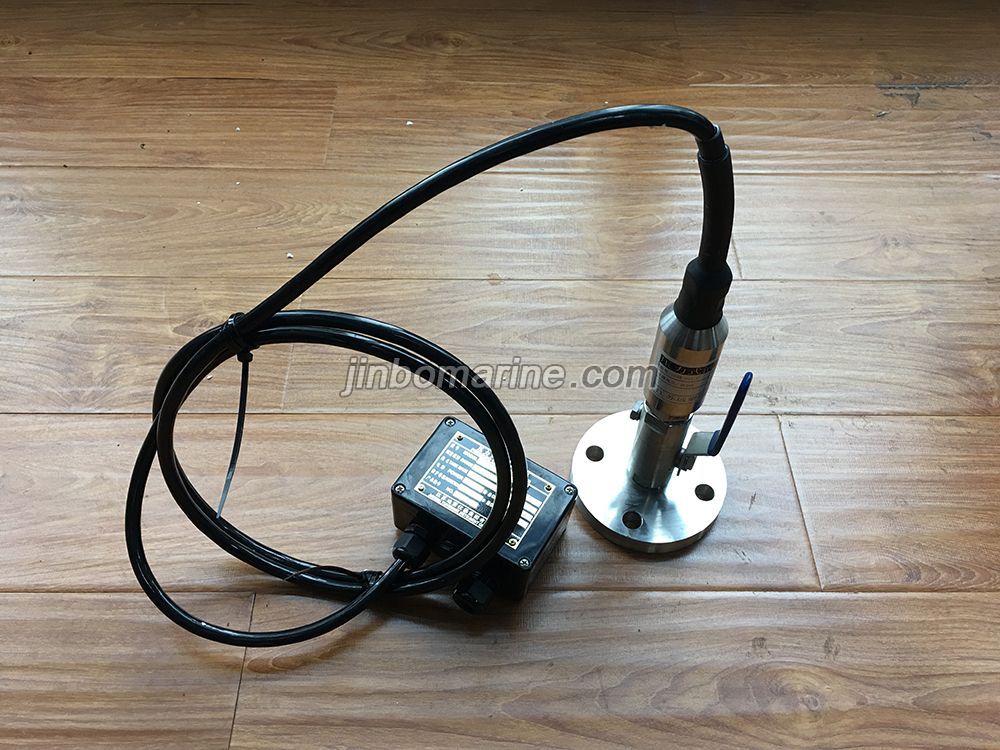

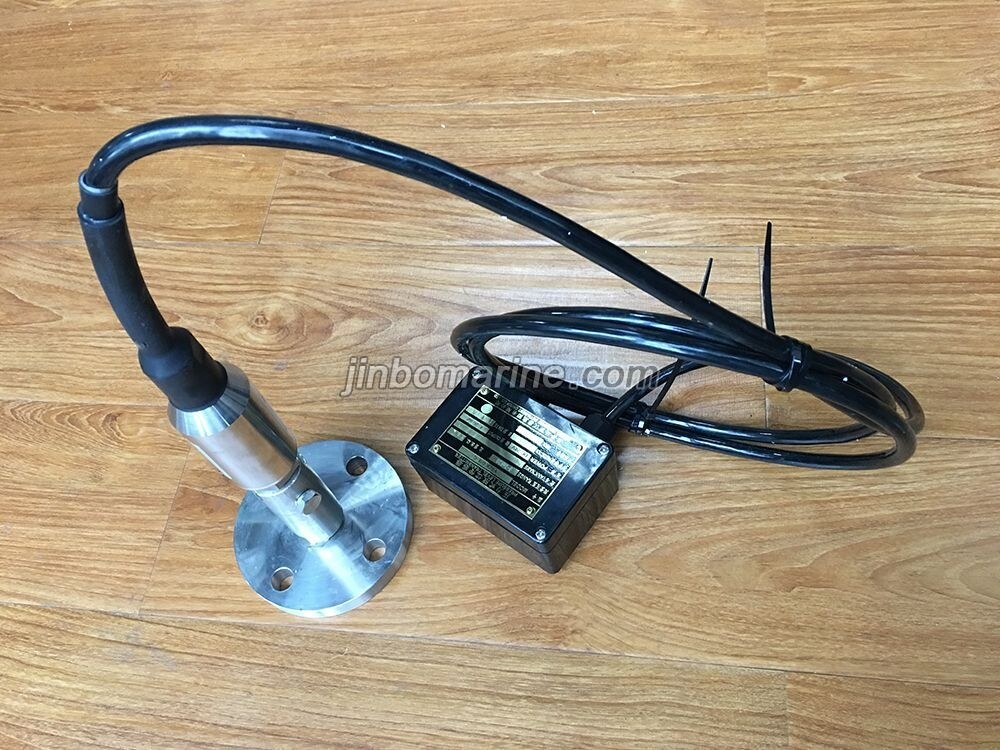

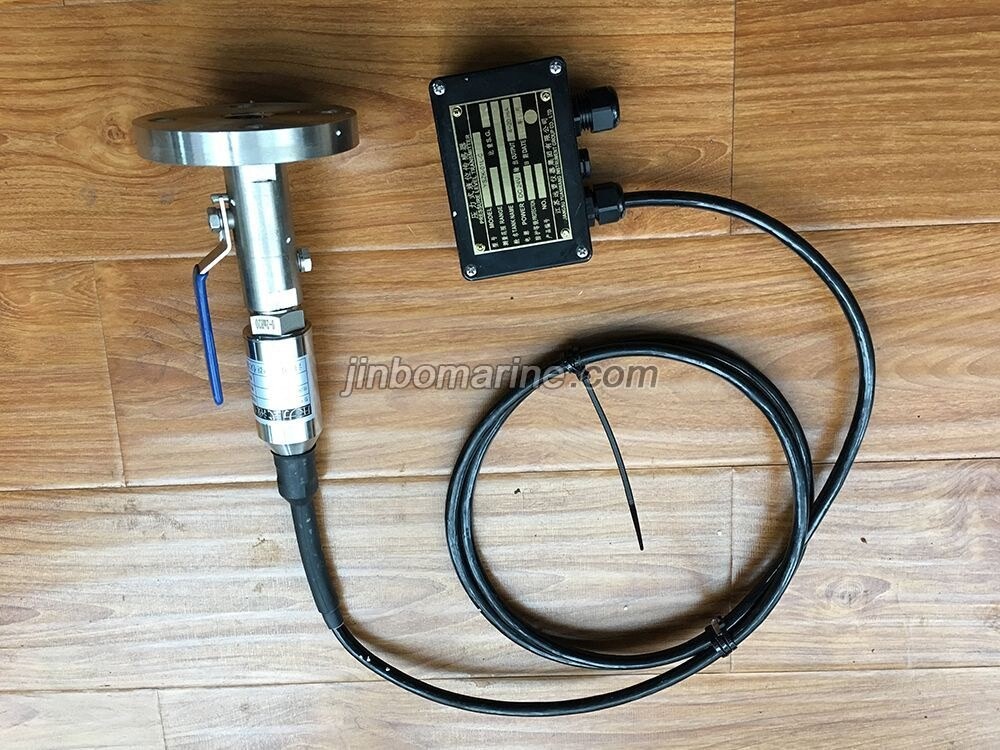

YSZK-01L Pressure Type Level Transmitter
Product Description: Pressure Type Level Transmitter consists of transmitter,signal amplifier etc. It is used for continously measuring the liquid level of ballast tank,draft and fuel ...
YSZK-01L Pressure Type Level Transmitter
PDF Datasheet
We can supply according to your requirement.
Product Description:
Pressure Type Level Transmitter consists of transmitter,signal amplifier etc. It is used for continously measuring the liquid level of ballast tank,draft and fuel oil tank. The pressure type transmitter in the liquid tank bottom can timely since the pressure change due to the height change,and change the level height signal into pressure electric signal. The output signal is changed into 4~20mA(2-wire) DC level signal via amplifier. The level signal is transformed to the level indicator in the control panel via safety barrier,or tank level is indicated and controlled by loading computer.
Feature:
High measuring accuracy.
Excellent stability.
High overload ability.
Digital remote adjustment.
Corrosion resistance.
No hysteresis.
Main technical parameter:
Output:4~20mA(Hart)
Accuracy:±0.5% FS.
Supply voltage:DC24V
Range:0~40m
Diaphragm cell:capacitive transmitter
Material:
Diaphragm:SUS316L or ceramic
Sensor body:SUS316L
Working temperature:-20~60 centigrade
Protection class:
Transmitter:IP68 /submersible
Amplifier:IP66 /IP68
Intrinsic: Ex ia II C T4~T6 Cable length:3m in standard (option:up to 50m)
