YLG-0.12 Vertical Hydrophore Tank
Main technical requirements: Volume: 0.12m3 Working pressure: 0.6MPa Design pressure: 0.7MPa Strength test pressure: 1.05MPa Air tightness test pressure: 0.875M...
Loading product images...

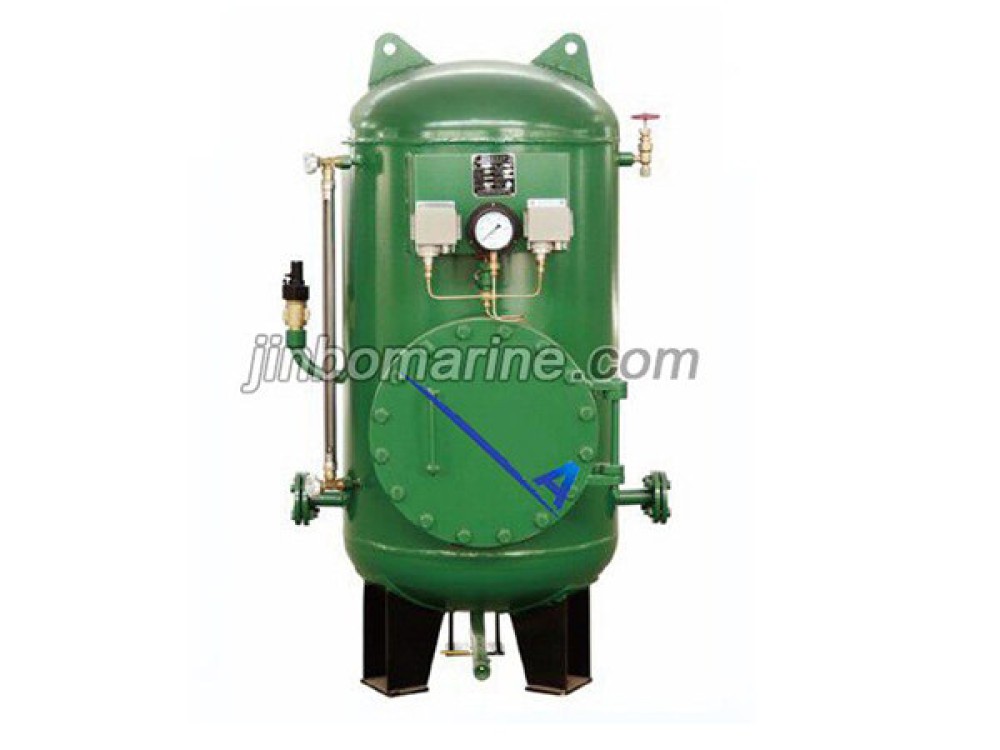

YLG-0.12 Vertical Hydrophore Tank
PDF Datasheet
We can supply according to your requirement.
Main technical requirements:
Volume: 0.12m3
Working pressure: 0.6MPa
Design pressure: 0.7MPa
Strength test pressure: 1.05MPa
Air tightness test pressure: 0.875MPa
Open pressure of safety valve: 0.63MPa
Working temperature: 0~45℃
Design temperature: 50℃
Interface:
| Model | Water inlet | Water discharging outlet | inflation inlet | Discharging outlet | Safety valve |
| YLG-0.12 | DN25 | DN25 | DN10 | G3/4″ | ZG1/2″ |
