ZYG Series Combined Pressure Water Vessel System
Product Description: This pressure water tank is appropriate for the water supply system (fresh water, seawater) on board. This series combined pressure water vessel system,...

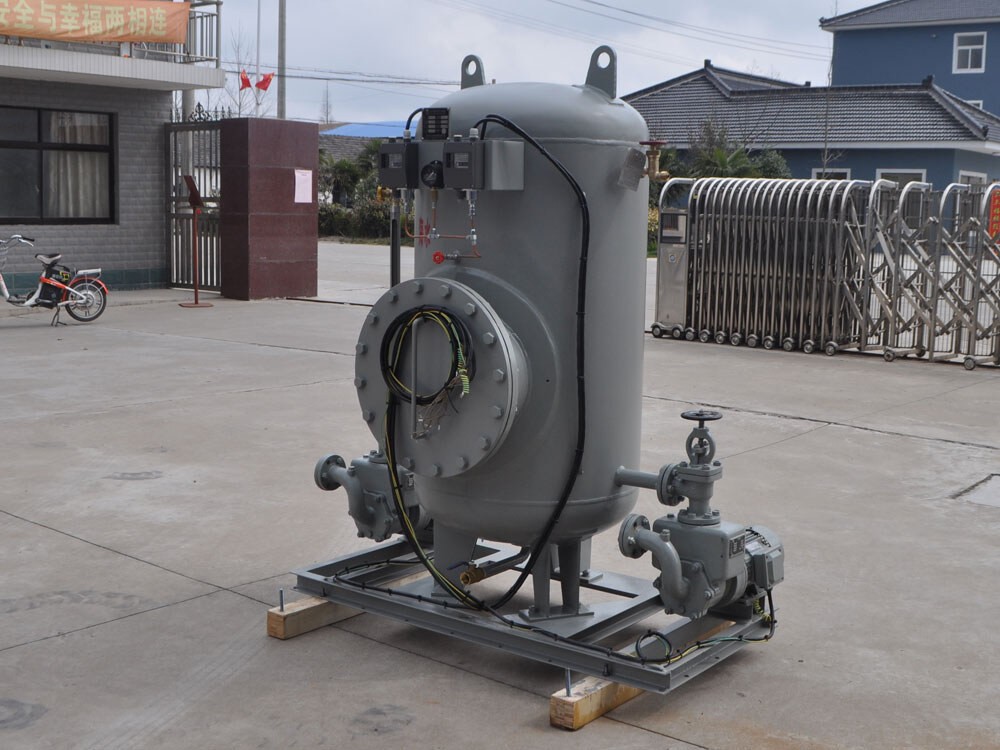

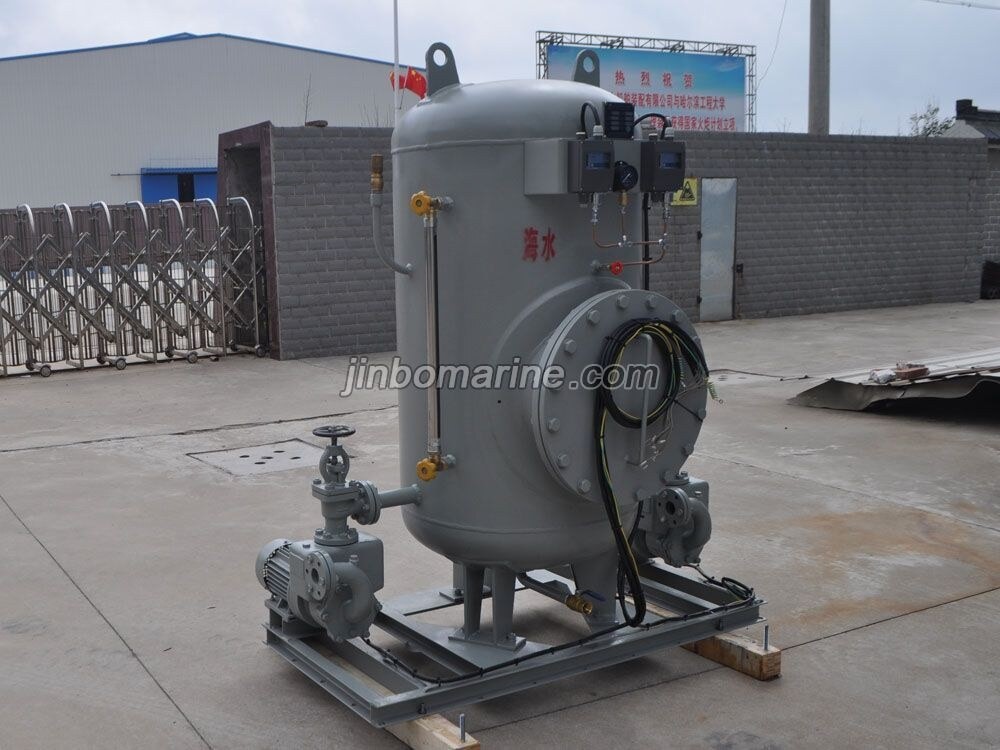

ZYG Series Combined Pressure Water Vessel System
PDF Datasheet
We can supply according to your requirement.
Product Description:
This pressure water tank is appropriate for the water supply system (fresh water, seawater) on board.
This series combined pressure water vessel system, water pump and valve pipe, is the best water supply unit that is applicable to various types of sea water and fresh water piping water supply systems.They have the characteristics of modular unit,compact structure, beautiful shape and easy installation and maintenance.
Main Technical Parameters:
| Model | Volume(m3) | Design Pressure(Mpa) | Working Pressure(Mpa) | Water Pump Model | Motor Power(kw) | Capacity(m3/h) | Pressure(Mpa) |
| ZYG-0.2 | 0.2 | 0.7 | 0.4 | 1.5CWX-2 | 2.2 | 3 | 0.4 |
| ZYG-0.3 | 0.3 | ||||||
| ZYG-0.5 | 0.5 | ||||||
| ZYG-1.0 | 1 | ||||||
| ZYG-1.5 | 1.5 | ||||||
| ZYG-2.0 | 2 | ||||||
| ZYG-2.5 | 2.5 |
Working Principle:
The device uses the pressure water pumped by water pump in tank to compress air so as to keep the water in tank under a proper pressure for the use on board.
