Marine Equipment

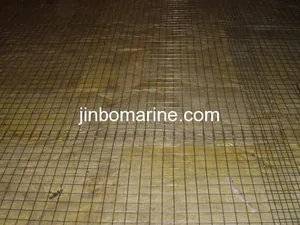

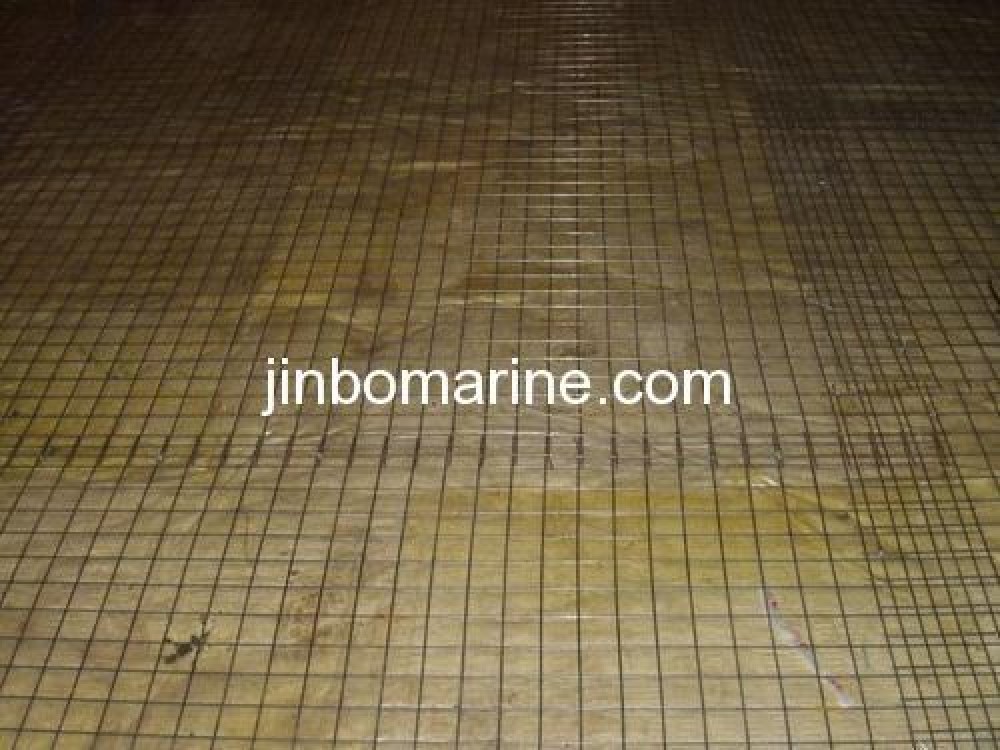

A60 Class Fireproof Deck
Main Specification No. Item name Index Standard 1  ...
Loading product images...
PDF Datasheet
Main Specification
| No. | Item name | Index | Standard | |
|---|---|---|---|---|
| 1 | Fireproof Deck Covering | Initial setting time | ≥1h | Q/HCF 1-2004 |
| 2 | Final setting time | ≤12h | ||
| 3 | Modulus of rapture | ≥4MPa | ||
| 4 | Compressive strength | ≥20MPa | ||
| 5 | Density | ≤1600kg/m3 | ||
| 6 | Water absorption | ≤10% | ||
| 7 | Oil absorption | ≤5% | ||
| 8 | Heat conductivity | ≤1.2W/m.k | ||
| 9 | Non-combustibility | In accordance with IMO.FTPC Part 1/IMO.A 799(19) | ||
| 10 | Deck Structure | Fire Rating | A-60 | |
| 11 | Weight per square meter | ≤60 kg/m2/45mm | ||
Feature
Characteristic: Fire rating is A-60 class and has very strong moisture-proof
Applied: Covering for A-60 class decks and damp cabins
Consume amount: 60 kg/m2
Packing: Dry material (A component): 30kg/pack
Storage: Cool and dry place, moisture-proof, the quality guarantee period is 6 months
Certificate: ABS、BV、CCS、DNV、EC、GL 、KR、LR、NK
