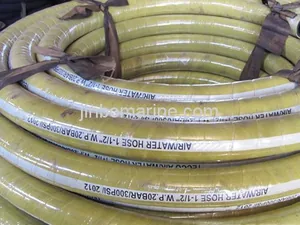

Air Hose
- Category:Air and General Purpose Hose
- Delivery Time:30 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Main Specification
| ID | OD | WP | BP | Bending Radius | Plies | Weight | Length | ||||
| mm | inch | mm | inch | Mpa | bar | Mpa | bar | mm | B | kg/m | m |
| 10 | 3/8" | 18 | 3/4" | 3 | 30 | 9 | 90 | 130 | 1 | 0.3 | 20-50 |
| 12.5 | 1/2" | 23 | 7/8" | 3 | 30 | 9 | 90 | 180 | 1 | 0.46 | 20-50 |
| 16 | 5/8" | 26 | 1" | 2.5 | 25 | 7.5 | 75 | 210 | 1 | 0.53 | 20-50 |
| 19 | 3/4" | 29 | 1-1/4" | 2.5 | 25 | 7.5 | 75 | 240 | 1 | 0.6 | 20-50 |
| 22 | 7/8" | 32 | 1-1/4" | 2 | 20 | 6 | 60 | 280 | 1 | 0.8 | 20-50 |
| 25 | 1" | 35 | 1-2/5" | 2 | 20 | 6 | 60 | 375 | 1 | 0.93 | 20-50 |
| 32 | 1-1/4" | 42 | 1-5/8" | 1.5 | 15 | 4.5 | 45 | 420 | 2 | 1.25 | 20-50 |
| 38 | 1-1/2" | 48 | 1-7/8" | 1.5 | 15 | 4.5 | 45 | 500 | 2 | 1.47 | 20-50 |
| 45 | 1-3/4" | 56 | 2-1/4" | 1.2 | 12 | 3.6 | 36 | 630 | 2 | 1.76 | 20-50 |
| 50 | 2" | 64 | 2-1/2" | 1.2 | 12 | 3.6 | 36 | 630 | 2 | 1.92 | 20-50 |
| 57 | 2-1/4" | 70 | 2-4/5" | 1 | 10 | 3 | 30 | 855 | 2 | 2.1 | 20-50 |
| 64 | 2-1/2" | 78 | 3" | 1 | 10 | 3 | 30 | 960 | 2 | 2.56 | 20-50 |
| 76 | 3" | 90 | 3-1/2" | 0.8 | 8 | 2.4 | 24 | 1140 | 2 | 2.96 | 20-50 |
| 90 | 3-1/2" | 106 | 4" | 0.6 | 6 | 1.8 | 18 | 1350 | 2 | 3.7 | 20-50 |
| 100 | 4" | 120 | 4-4/5" | 0.6 | 6 | 1.8 | 18 | 1530 | 2 | 4.3 | 20-50 |
