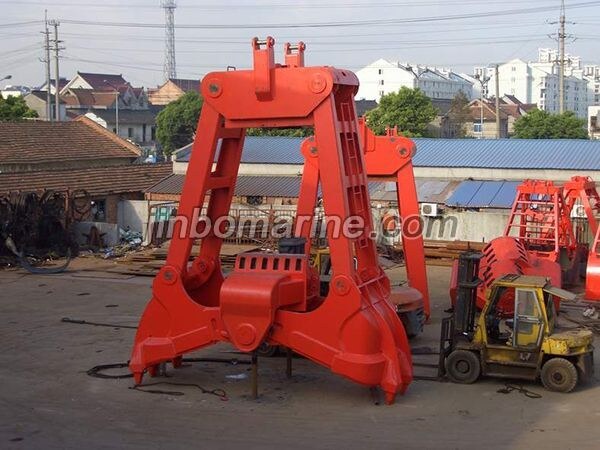

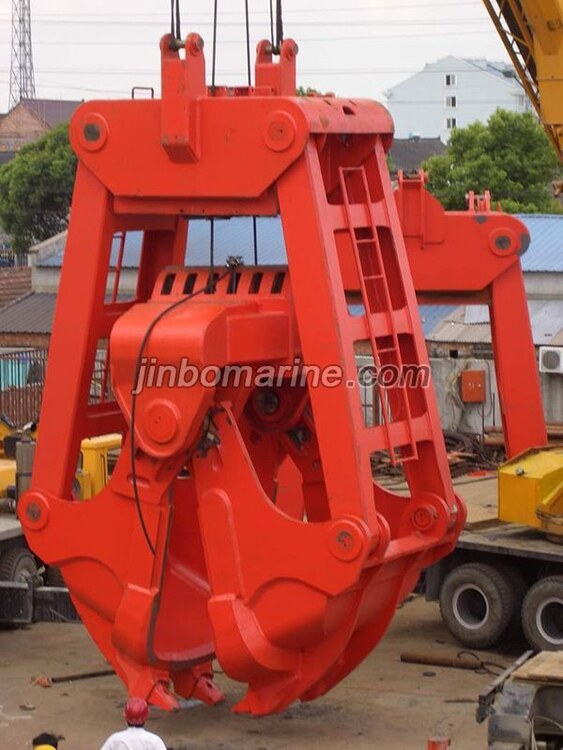

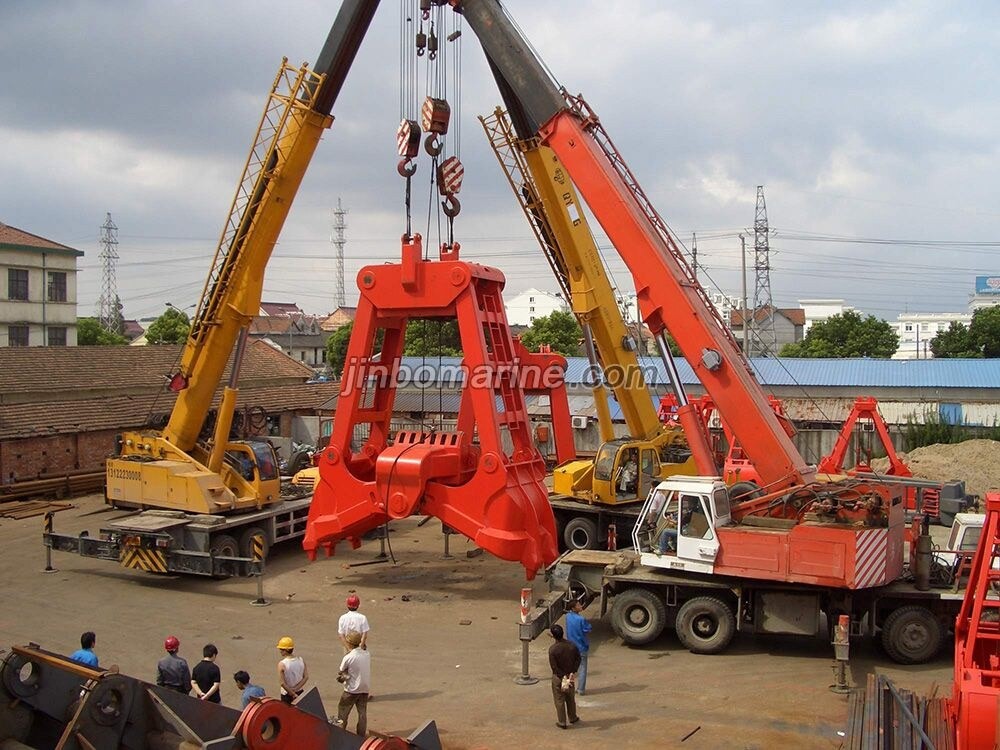

Dredging Grab Bucket
Dredging Grab Bucket Working Principle Dredging grab bucket is suitable for double rope or four rope hoist crane which is engaged in the sea river channel, port wharf etc. It is e...
Loading product images...
PDF Datasheet
Dredging Grab Bucket Working Principle
Dredging grab bucket is suitable for double rope or four rope hoist crane which is engaged in the sea river channel, port wharf etc. It is engaged in underwater silt, board occasion of sand, gravel material scraping and the ideal shape machine.
Dredging Grab Bucket Technical Specifications
| Model | Volume | Grab self-weight | Pulley Dia | Rate | Rated lifting weight(t) |
| SJ6[1.0]4A | 1 | 4 | 560 | 5 | 6 |
| SJ12[1.5]6.5A | 1.5 | 6.5 | 560 | 5 | 12 |
| SJ20[5.0]8A | 5 | 8 | 650 | 4 | 20 |
| SJ30[5.0]13B | 5 | 13 | 800 | 5 | 30 |
| SJ55[5.5]35B | 5 | 35 | 880 | 6 | 55 |
| SJ45[4.0]25AV | 4 | 25 | 880 | 6 | 45 |
| SJ46[5.0]36BV | 5 | 36 | 880 | 6 | 45 |
| SJ45[8.0]28AV | 8 | 28 | 880 | 6 | 45 |
| SJ55[5.0]32B | 5 | 32 | 880 | 5 | 55 |
| SJ70[16]48AV | 16 | 48 | 1045 | 6 | 70 |
| SJ80[8.0]60AV | 8 | 60 | 1045 | 7 | 80 |
| SJ80[11]55BV | 11 | 55 | 1045 | 7 | 80 |
| SJ200[9.0]110BV | 9 | 70 | 1500 | 7 | 110 |
