Four Rope Prevent Leakage Double Disc Grab Bucket
Four Rope Prevent Leakage Double Disc Grab Bucket Working Principle Prevent leakage grab bucket is a kind of applicable to port, bulk carrier, large grain depot, bulk yard etc., h...
Loading product images...

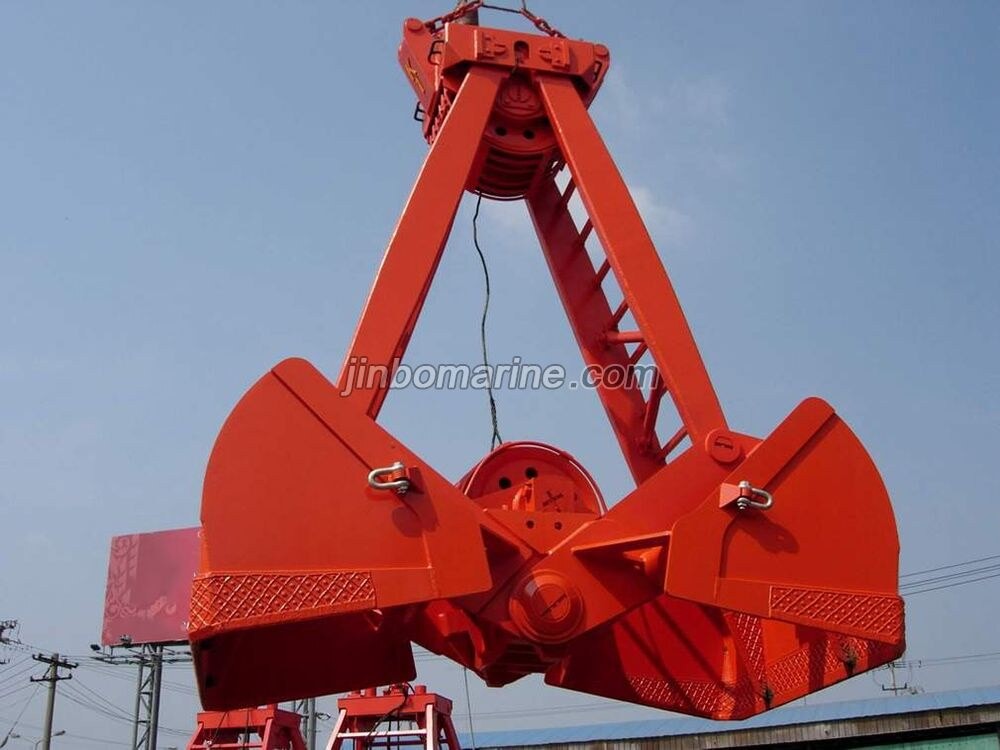

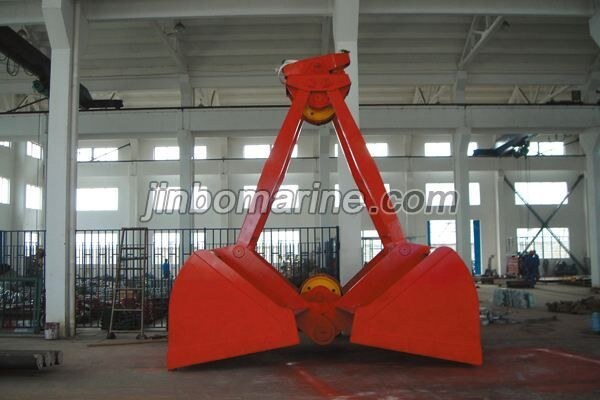

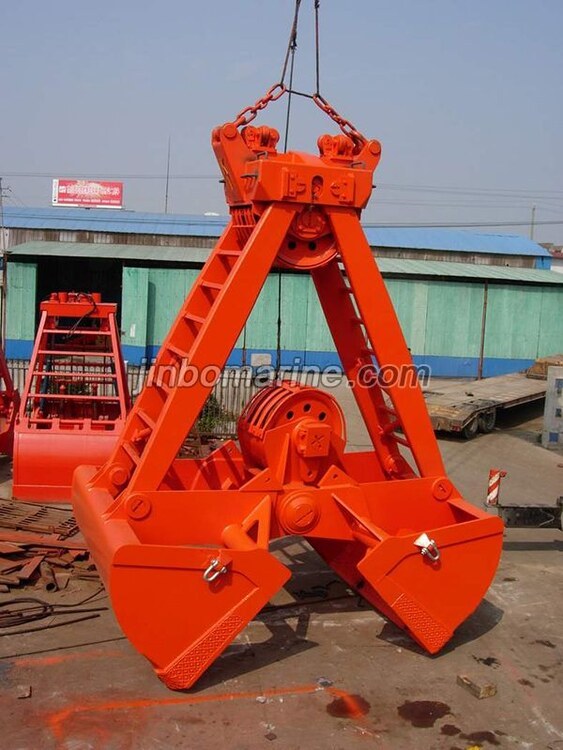

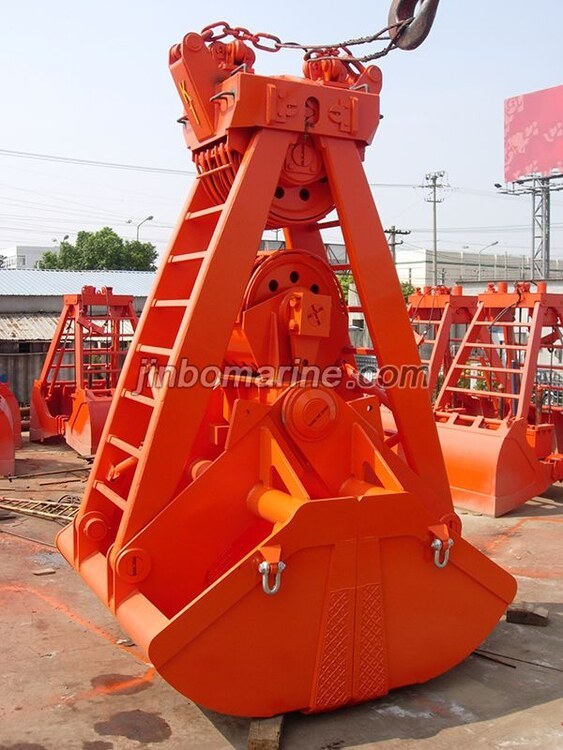

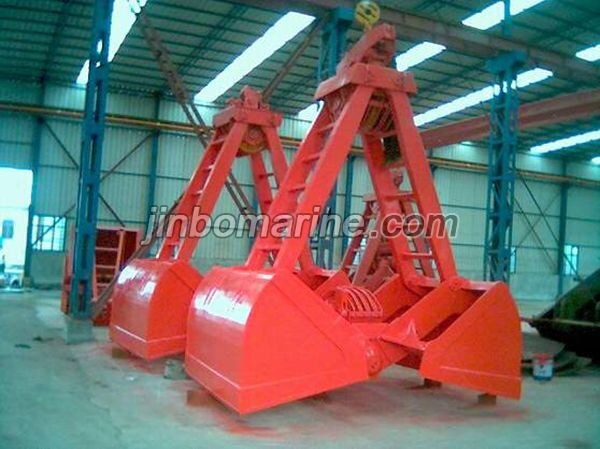

Four Rope Prevent Leakage Double Disc Grab Bucket
PDF Datasheet
We can supply according to your requirement.
Four Rope Prevent Leakage Double Disc Grab Bucket Working Principle
Prevent leakage grab bucket is a kind of applicable to port, bulk carrier, large grain depot, bulk yard etc., homework occasion. Working in small particles of overflow, is a grain, bulk material chemical fertilizer, fine ore, and easy leak spilled bulk materials handing idea tool. Grasping at full materials operation not easy leak spilled.
Four Rope Prevent Leakage Double Disc Grab Bucket Technical Specifications
| Model | Volume | Grab self-weight | Pulley Dia | Using height | Steel rope Dia | Rated lifting weight(t) |
| SFL10[7.5]4.5 | 7.5 | 4.5 | 520 | 12 | 24 | 10 |
| SFL16[12]6.5 | 12 | 6.5 | 560 | 12.5 | 28 | 16 |
| SFL20[15]8.8 | 15 | 8.8 | 650 | 14.5 | 30 | 20 |
| SFL25[18]10.5 | 18 | 10.5 | 720 | 15 | 32 | 25 |
