Wood Grab Bucket
Wood Grab Bucket Working Principle Wood Grab Bucket is adjust to wood factory, large wood product factory, paper mill, port etc. industry. It is used to ship unload, outfit barges...
Loading product images...
PDF Datasheet
Wood Grab Bucket Working Principle

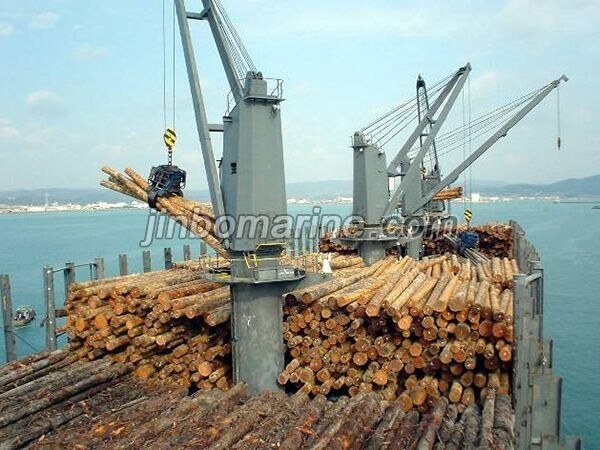

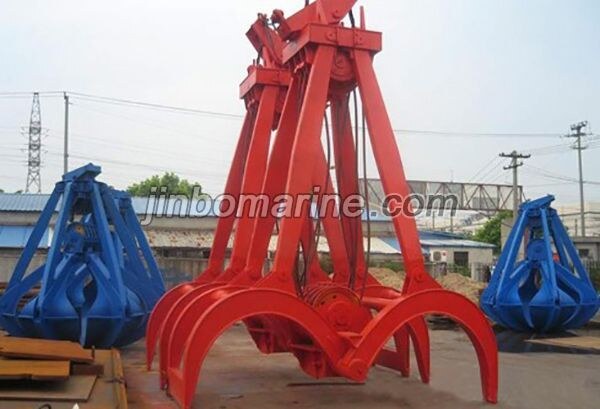

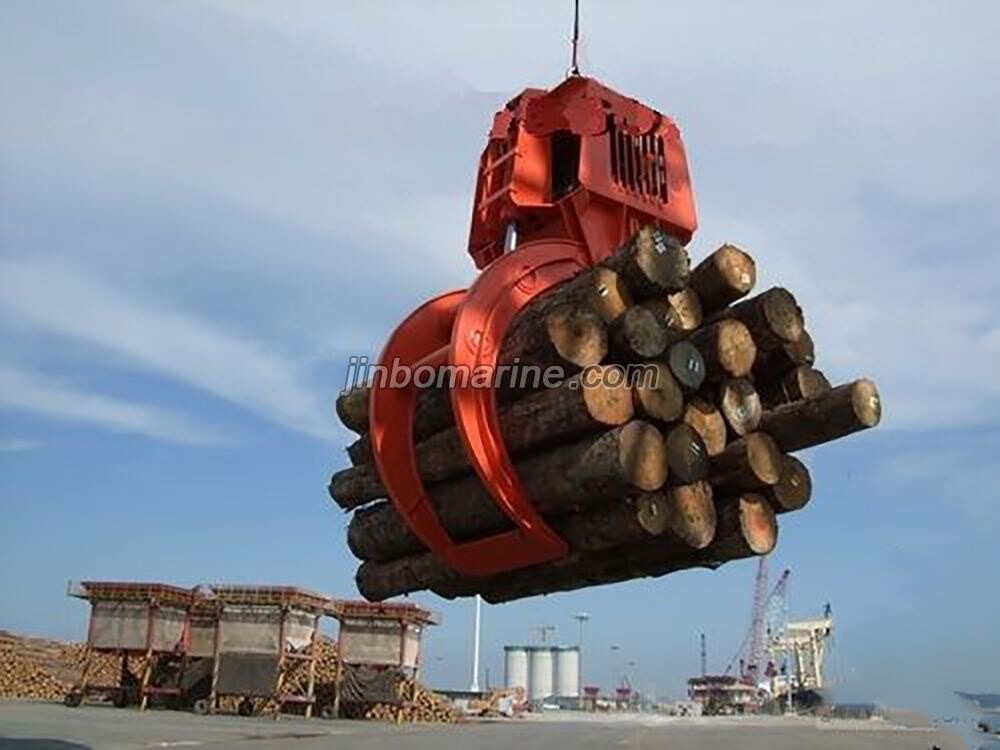

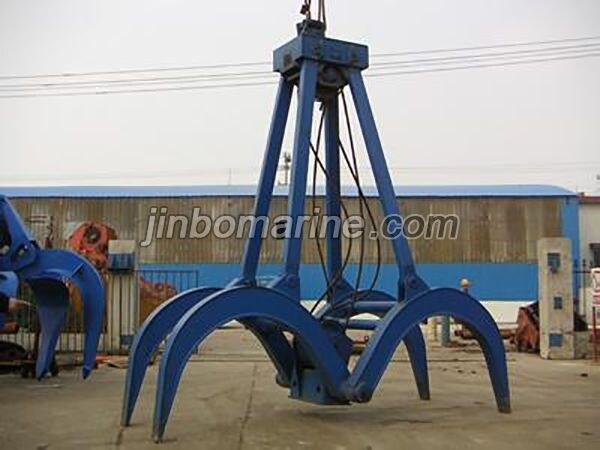

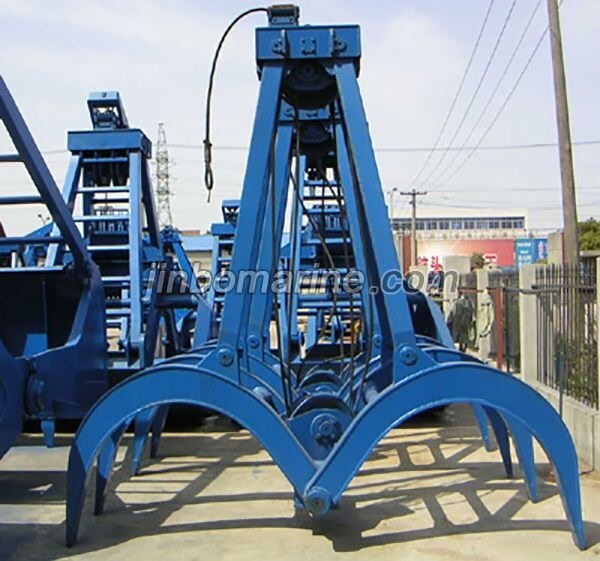

Wood Grab Bucket is adjust to wood factory, large wood product factory, paper mill, port etc. industry. It is used to ship unload, outfit barges, log raft, load trucks. Its structure includes single rope, double rope, four rope and electric type, it can also be designed according to clients need.
Wood Grab Bucket Technical Specifications
| The tonnage of the crane | t | 3t | 5t | 10t | 15t | 16t | |||
| Model | M3-1 | M3-2 | M5-1 | M5-2 | M10-1 | M10-2 | M15-1 | M16-1 | |
| Volume | m2 | 0.45 | 0.45 | 0.75 | 0.75 | 1.25 | 1.25 | 1.9 | 2 |
| Grab self weight | t | 1.15 | 1.2 | 1.75 | 2.2 | 3.7 | 3.9 | 4.75 | 5.8 |
| Material length | m | 8 | 8 | 8 | 12 | 12 | 12 | 12 | 12 |
| Rope diameter | mm | 13 | 13 | 16 | 16 | 22 | 22 | 28 | 28 |
| Rope number | 1 | 2 | 1 | 4 | 2 | 4 | 4 | 4 | |
| Rate | 3 | 5 | 3 | 4 | 5 | 5 | 4 | 4 | |
