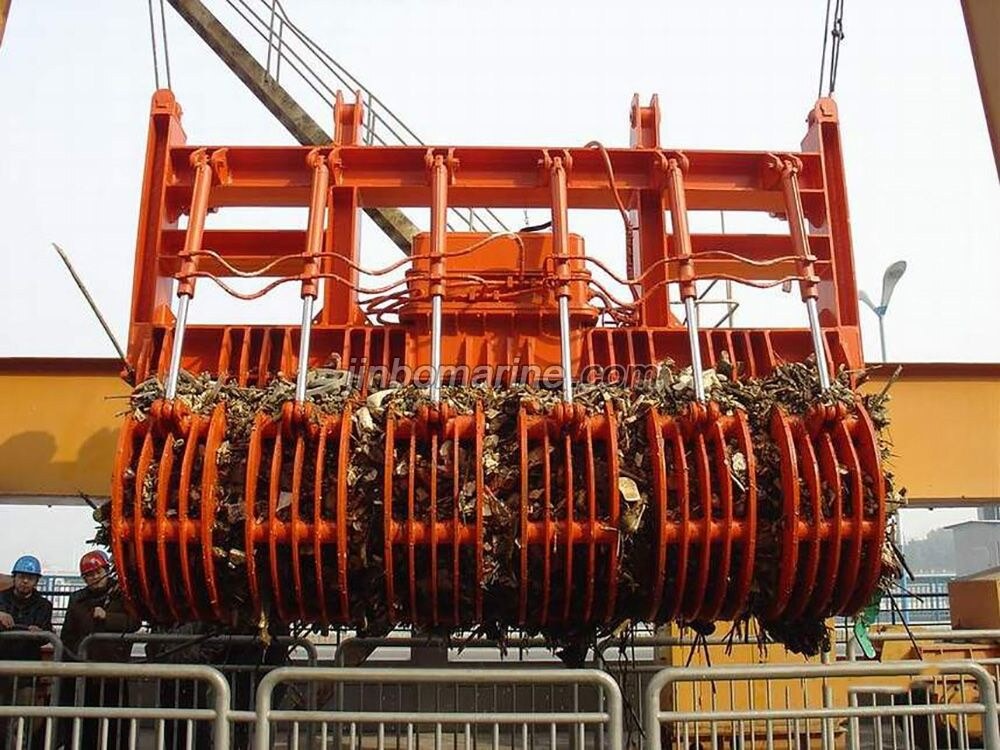

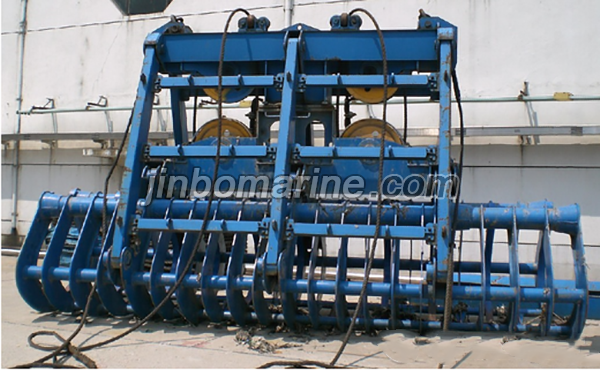

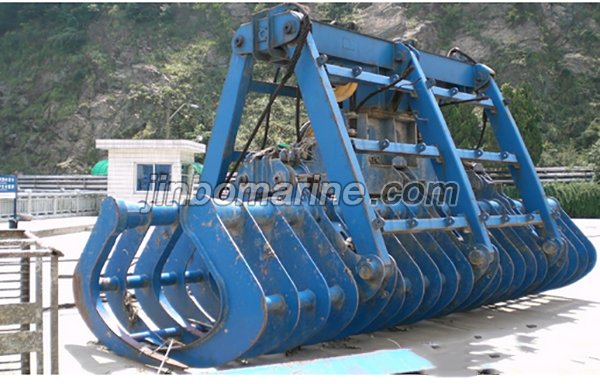

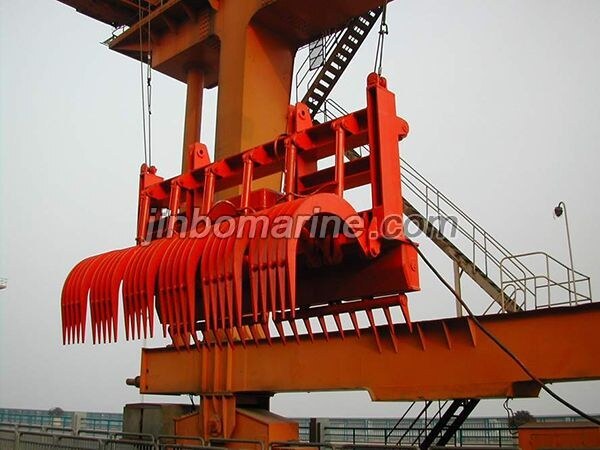

Rope Type Rack Cleaner Rectangular Grab Bucket
Rope Type Rack Cleaner Rectangular Grab Bucket Working Principle Rope type rectangular is applied to using certain occasions, such as water storage sluice gate, river channel. It ...
Loading product images...
Rope Type Rack Cleaner Rectangular Grab Bucket
PDF Datasheet
We can supply according to your requirement.
Rope Type Rack Cleaner Rectangular Grab Bucket Working Principle
Rope type rectangular is applied to using certain occasions, such as water storage sluice gate, river channel. It is engaged in cleaning the rubbish or debris and the floating debris.
Rope Type Rack Cleaner Rectangular Grab Bucket Technical Specifications
| Model | Volume | Grab selfweight | Pulley Dia | Use altilude | Steel rope Dia | Rated lifting weight(t) |
| QW10[7.5]4.5 | 5 | 7.2 | 520 | 7.5 | 22 | 10 |
| QW16[12]6.5 | 8 | 7.2 | 560 | 8.5 | 28 | 16 |
| QW20[15]8.8 | 10 | 9 | 650 | 9 | 32 | 20 |
| QW25[18]10.5 | 12.5 | 11.5 | 720 | 10.5 | 32 | 25 |
