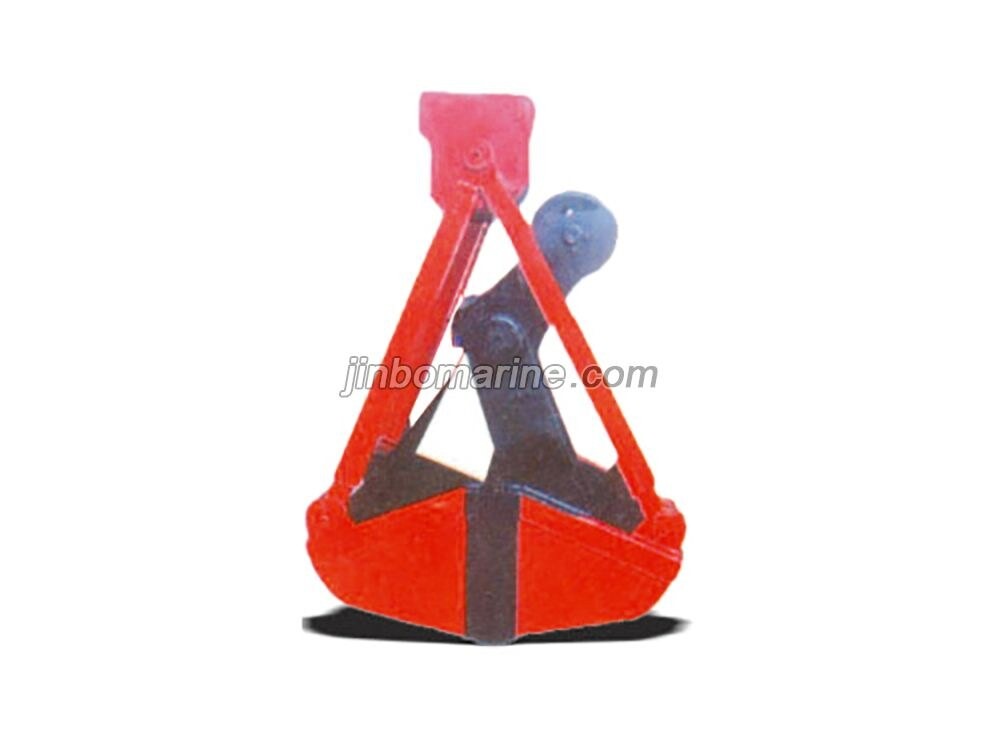

Half Scissor Grab Bucket
Half Scissor Grab Bucket Working Principle Half scissor grab is absorbed the advantages of long poles grab and scissor grab. Combined with the both of advantages, this grab bucket...
PDF Datasheet
Half Scissor Grab Bucket Working Principle
Half scissor grab is absorbed the advantages of long poles grab and scissor grab. Combined with the both of advantages, this grab bucket is composed of foream, moving jackstay, static jackstay and gnathostegite, the central of foream hinge joint gnathostegite, the other side equipped the down pulley, when working, lifting the down pulley, it will close gnathostegite, capture the materials, grasping force strong, opening easily, it is suitable for single rope and double rope grab bucket, load and unload the loose materials such as sand, coal, steel slag etc.
Half Scissor Grab Bucket Technical Specifications
| Model | Volume m3 | Grab selfweight t | Rated lifting weight t | Rate t/m3 | Pulley rate |
| BJZ03-1 | 1.5 | 1.6 | 3 | 0.8-1.2 | 3 |
| BJZ03-2 | 1 | 1.5 | 3 | 1.2-1.8 | 3 |
| BJZ05-1 | 2 | 2.3 | 5 | 0.8-1.2 | 4 |
| BJZ05-2 | 1.5 | 2.6 | 5 | 1.6-2.0 | 4 |
| BJZ05-3 | 1 | 2.5 | 5 | 2.0-2.5 | 4 |
| BJZ8-1 | 3.5 | 3.2 | 8 | 0.8-1.2 | 3 |
| BJZ10-1 | 5 | 1.4 | 10 | 0.8-1.2 | 3 |
| BJZ10-2 | 3.3 | 4.5 | 10 | 1.2-2.0 | 4 |
| BJZ10-3 | 2.5 | 4.3 | 10 | 2.0-2.5 | 4 |
