Alloy Steel Drive Hydraulic Wrench

Request a Quote Not what you need, please send your RFQs via Email.

Details

China Alloy Steel Drive Hydraulic Wrench:

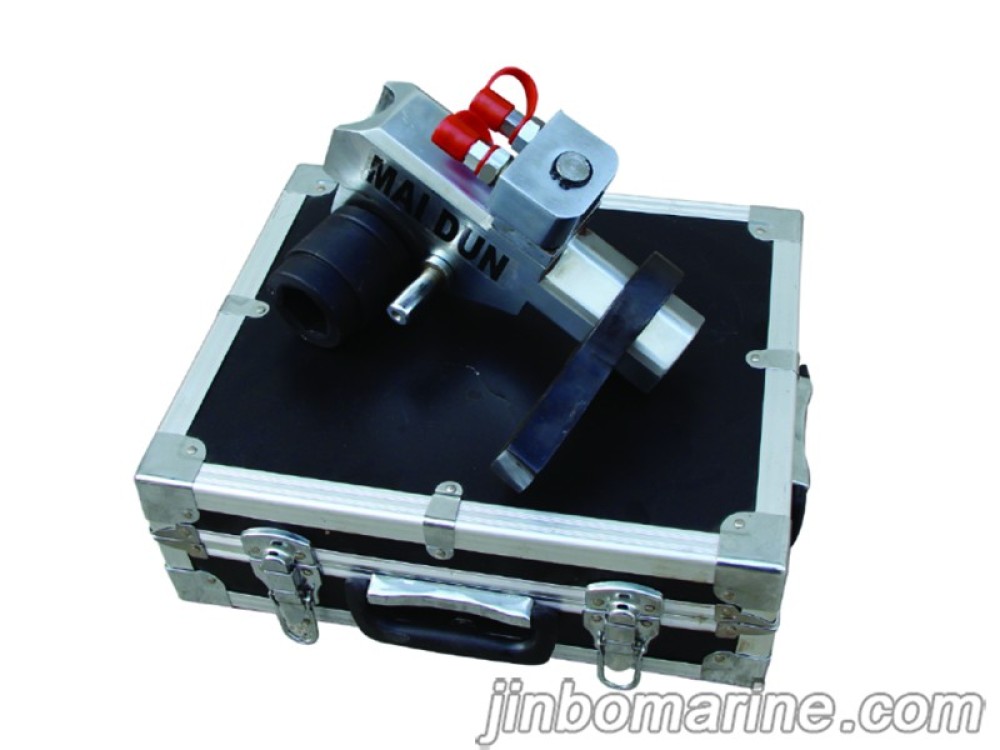

Alloy Steel Drive Hydraulic Wrench

YD hydraulic wrench has compact structure,small size,light weight and large output torque.It is a powerful tool for nut. disassembly and bolt pre-tightening. The torque is controlled within the range of 3%,which can meet the requirements of high-precision torque value for connection preload. The one-way ratchet pawl mechanism prevents the drive shaft from reversing, ensuring reliable operation, and the support arm can be adjusted to fully adapt to different working environments,without space constraints, and easy to operate. Standard square drive shaft, with different specifications of the sleeve, suitable for a variety of applications.

Model (Nm)
Max. torque
(mm)
Removable nut opposite side
(mm)
Removable bolt diameter
(Mpa)
Preset pressure
YD-25 2900 S32-S55 M22-M36 100/10
YD-50 5000 S32-S80 M22-M52 100/10
YD-100 13,000 S32-S105 M22-M72 100/10
YD-160 24,000 S55-145 M36-M100 100/10
YD-270 36,000 S55-S175 M36-M120 100/10
