ESD Series-Single Stage Hydraulic Bolt Tensioner

ESD Series-Single Stage Hydraulic Bolt Tensioner &nbsp; &nbsp; It is mainly used for 10.9 grade high strength bolts. The design of automatic quick return mechanism greatly reduces labo...

Marine Tools1 Photos ISO9001 Supplier
ESD Series-Single Stage Hydraulic Bolt Tensioner thumbnail 1

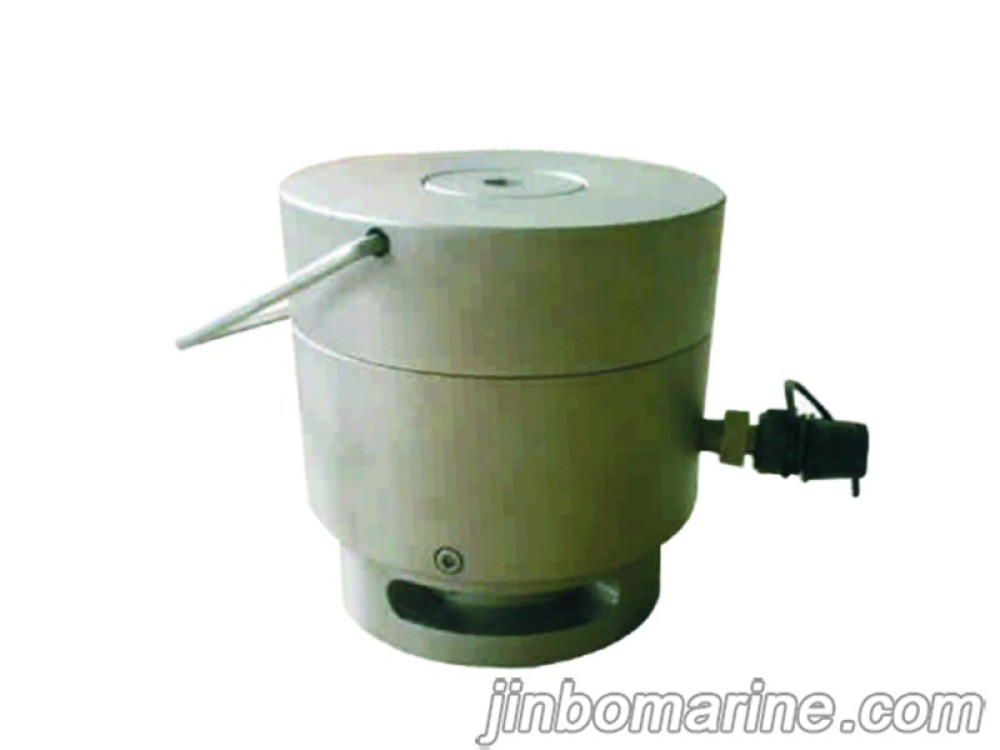

ESD Series-Single Stage Hydraulic Bolt Tensioner

Category: Marine Tools
Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
FOB Price: Get Latest Price Now
Warranty: 12 Months unless specified otherwise
Place of Origin: China
Request a Quote PDF Datasheet

We can supply according to your requirement.

China ESD Series-Single Stage Hydraulic Bolt Tensioner:

ESD Series-Single Stage Hydraulic Bolt Tensioner

It is mainly used for 10.9 grade high strength bolts.

The design of automatic quick return mechanism greatly reduces labor intensity.

Super stroke red warning line,three level safety protection to ensure operator safety.

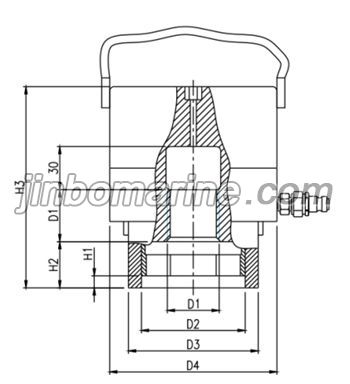

Model Thread D1 Nut to the
Side		 Tensile Force D2 D3 D4 H1 H2 H3
m m S KN mm mm mm mm mm mm
ESD 20 M 20X2.5 30 200 42 52 65 6 19 94
ESD 24 M 24X3 36 290 49 60 78 8 22 102
ESD 27 M 27X3 41 380 55 67 86 10 25 108
ESD 30 M 30X3.5 46 460 61 74 97 12 27 106
ESD 33 M 33X3.5 50 570 66 81 107 14 29 114
ESD 36 M 36X4 55 670 71 90 117 16 32 118
ESD 39 M 39X4 60 800 77 96 127 18 34 125
ESD 42 M 42X4.5 65 920 83 102 137 20 37 134
ESD 45 M 45X4.5 70 1080 89 110 148 22 39 135
ESD 48 M 48X5 75 1220 94 116 158 24 42 140
ESD 52 M 52X5 80 1450 102 128 169 28 46 151
ESD 56 M 56X5.5 85 1680 106 135 179 31 49 158
ESD 60 M 60X5.5 90 2010 114 142 199 34 52 167
ESD 64 M 64X6 95 2210 120 151 211 37 55 172
ESD 68 M 68X6 100 2600 124 155 228 40 58 180
ESD 72 M 72X6 105 2880 130 168 238 44 62 186
ESD 76 M 76X6 110 3320 139 180 259 48 66 197
ESD 80 M 80X6 115 3610 142 188 267 50 68 202
ESD 90 M 90X6 130 4650 160 210 300 58 77 220
ESD 100 M 100X6 145 5830 178 237 340 66 85 240
