EPS150 Series Ultra High Voltage Electric Pump
EPS150 Series Ultra High Voltage Electric Pump The maximum service pressure of pumping station is 150MPa. Single acting high performance electric pump. The pump bo...
Loading product images...
EPS150 Series Ultra High Voltage Electric Pump
PDF Datasheet
We can supply according to your requirement.
China EPS150 Series Ultra High Voltage Electric Pump:

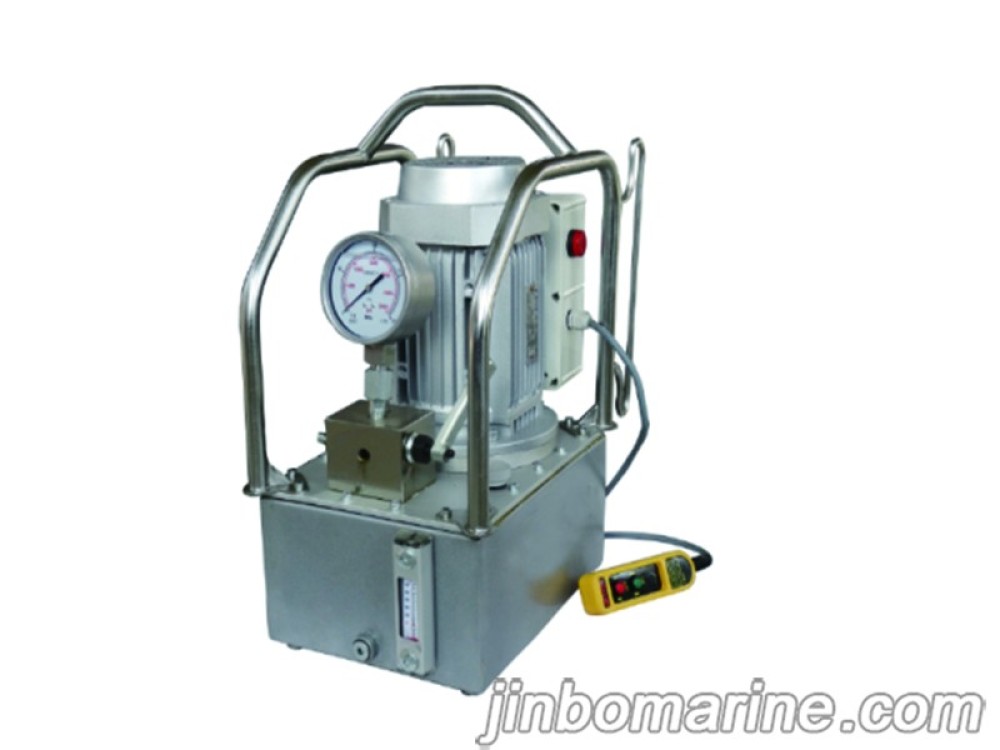

EPS150 Series Ultra High Voltage Electric Pump
The maximum service pressure of pumping station is 150MPa.
Single acting high performance electric pump.
The pump body is made of aluminum titanium alloy with light weight.
Brushless high power motor has convenient maintenance and long service life.
It is suitable for hydraulic bolt tensioner, shipbuilding, wind power and other fields.
Fastener type quick connector is quick and convenient to operate.
| Model | Output Port | Power Parameter | （MPa) Working Pressure | （L/min) Flow | Tank Volume (L) | Outer Size (mm) | Reference Weight (KG) | ||
| EPS150-220 | 1/4 G | 220V/1.5KW | 150 | 0.8 | 8 | 500x260x530 | 38 | ||
| EPS150-380 | 1/4 G | 380V/1.5KW | 150 | 0.8 | 8 | 500x260x530 | 38 | ||
