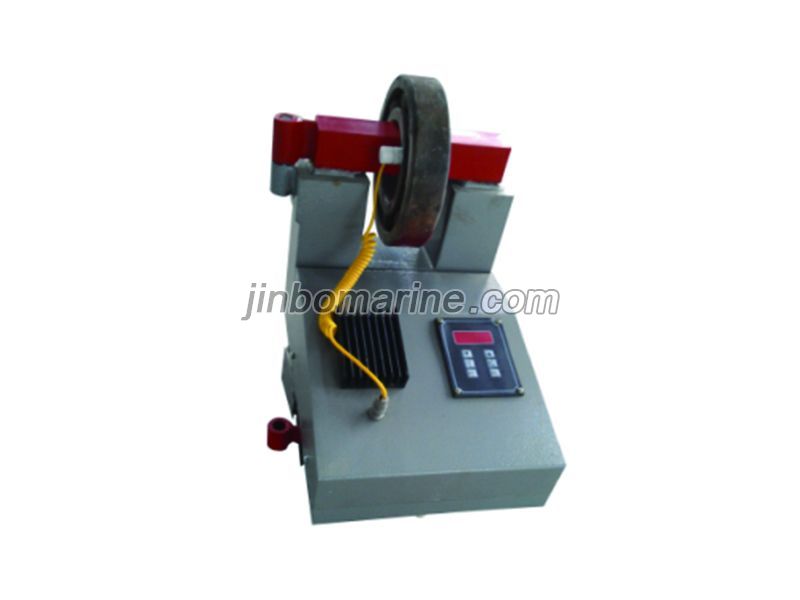

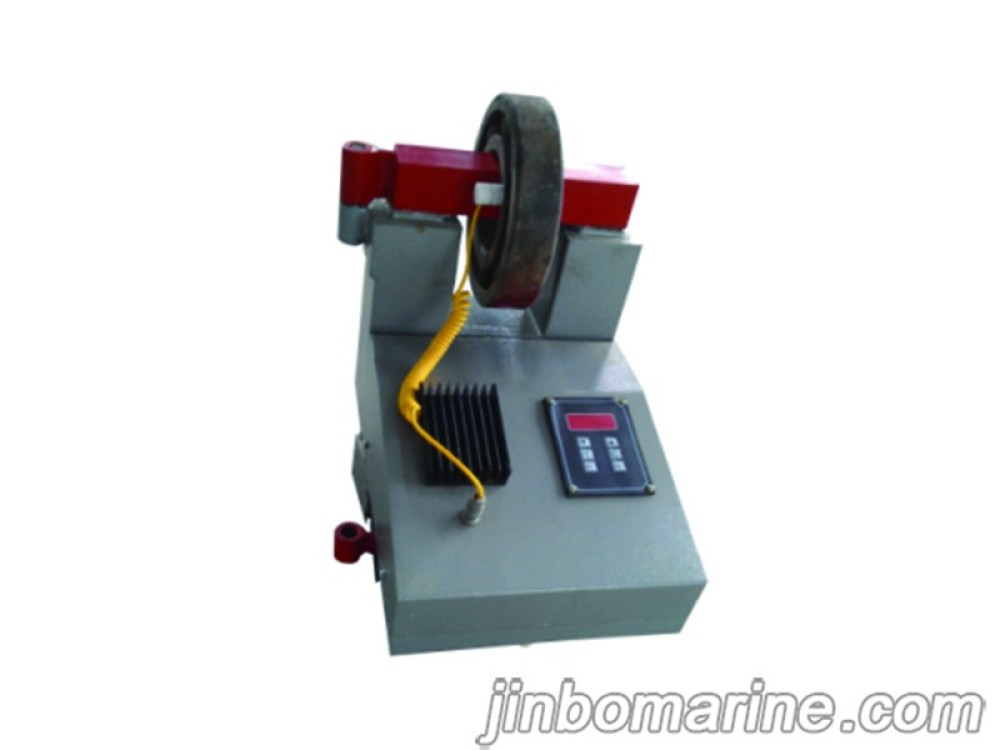

ZJ20X Bearing Heater
ZJ20X Bearing Heater This product has four basic models and nearly 100 specifications. It is suitable for the heating assembly of large and small interference parts. Compare...
PDF Datasheet
China ZJ20X Bearing Heater:
ZJ20X Bearing Heater
This product has four basic models and nearly 100 specifications. It is suitable for the heating assembly of large and small interference parts. Compared with oil baths and ovens, its advantages are: 1. The work efficiency is more than 4 times higher in cost saving: 2. Reliable heating is uniform and clean, which is conducive to improving assembly quality, no fire danger, and safety. 3. Environmental protection, no oil and gas, oil fume pollutes the air; 4. Magnetic push The unique automatic demagnetization function of the cutter is in line with the ZQ33-85 standard.
| Model | ZJ20X--I | --II | --III | --IV | --V | --VI | --VII | |||
| Rated power (KVA) | 2.2 | 5.5 | 7.5 | 11 | 13 | 18 | 22 | |||
| Rated voltage (V) | 220 | 380 | 380 | 380 | 380 | 380 | 380 | |||
| Rated current (A) | 10 | 14.5 | 19.7 | 28.9 | 34.2 | 47 | 58 | |||
| Heating the workpiece | Inner diameter (mm) | 30-85 | 85-160 | 120-250 | 150-360 | 180-400 | Special for internal combustion engine ring gear | |||
| Maximum outer diameter(mm) | 280 | 350 | 400 | 450 | 500 | |||||
| Width(mm) | 100 | 150 | 180 | 200 | 220 | |||||
| Weight (Kg) | 36 | 105 | 120 | 135 | 150 | 180 | 250 | |||
