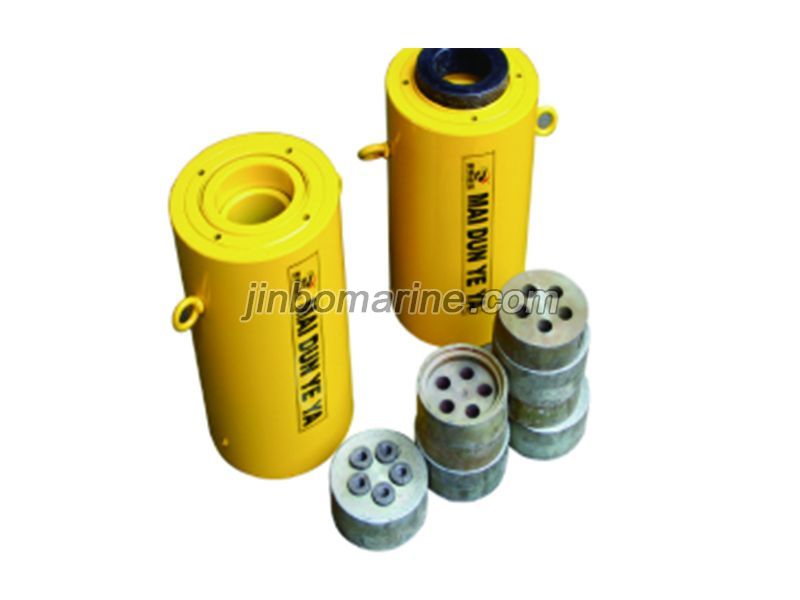

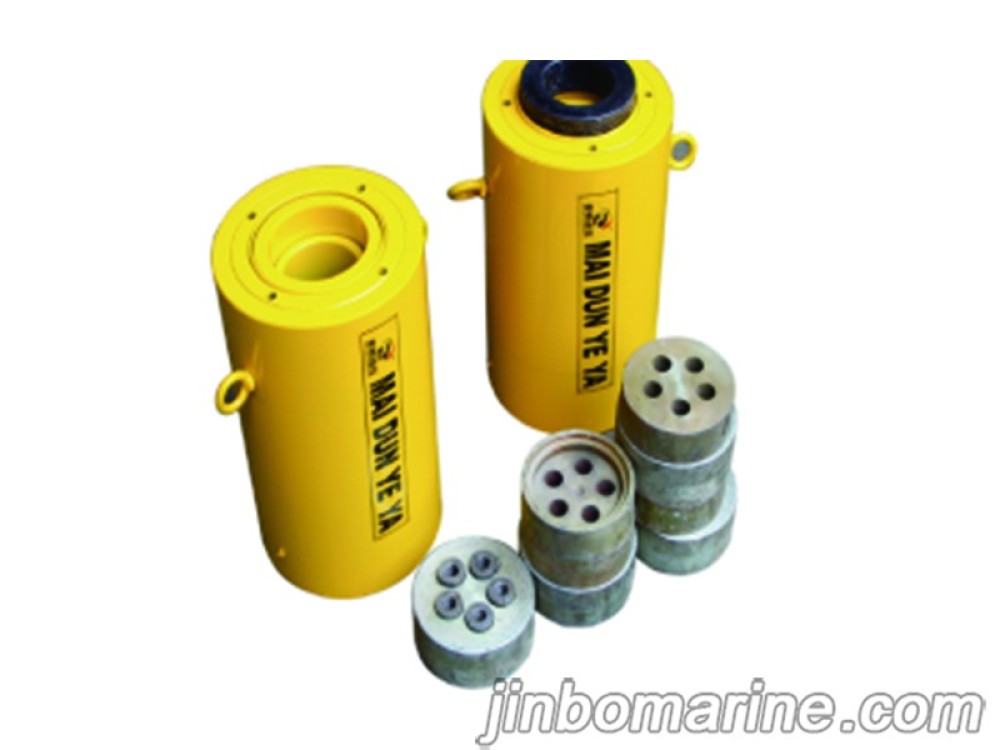

Double Acting Hollow Jack
Double Acting Hollow Jack Product features: Double acting design, hydraulic reset. Hollow plunger design can be used for both pull and push. Equipped with safety valve to prevent...
Loading product images...
Double Acting Hollow Jack
PDF Datasheet
We can supply according to your requirement.
China Double Acting Hollow Jack:
Double Acting Hollow Jack
Product features:
Double acting design, hydraulic reset.
Hollow plunger design can be used for both pull and push.
Equipped with safety valve to prevent damage caused by overpressure.
Painted surface for greater corrosion resistance.
All models include quick connectors and dust caps.
Equipped with a dust ring to reduce pollution and prolong the life of the jack.
| Model | T Capacity | mm Stroke | mm Height | mm Max Height | mm Diameter | mm Diameter | cm² Area | kg Weight |
| RRH-307 | 30 | 178 | 330 | 508 | 114 | 33.3 | 47.68 | 22 |
| RRH－3010 | 30 | 257 | 432 | 689 | 114 | 33.3 | 47.68 | 27 |
| RRH－603 | 60 | 89 | 248 | 337 | 159 | 53.8 | 88.5 | 28 |
| RRH-606 | 60 | 165 | 324 | 489 | 159 | 53.8 | 88.5 | 35 |
| RRH-6010 | 60 | 257 | 438 | 695 | 159 | 53.8 | 88.5 | 46 |
| RRH-1001 | 100 | 38 | 165 | 203 | 213 | 79.2 | 148.36 | 39 |
| RRH-1003 | 100 | 76 | 254 | 330 | 213 | 79.2 | 148.36 | 61 |
| RRH-1006 | 100 | 152 | 342 | 495 | 213 | 79.2 | 148.36 | 79 |
| RRH-10010 | 100 | 257 | 460 | 718 | 213 | 79.2 | 148.36 | 107 |
| RRH-1508 | 150 | 203 | 349 | 552 | 248 | 79.5 | 148.36 | 111 |
