Various Diameter Sockets Designed For Hollow Wrench
Various Diameter Sockets Designed For Hollow Wrench Manufacture of high strength Cr Mo alloy steel. The standard heat treatment process is safe,reliable and durable...
Loading product images...
Various Diameter Sockets Designed For Hollow Wrench
PDF Datasheet
We can supply according to your requirement.
China Various Diameter Sockets Designed For Hollow Wrench:

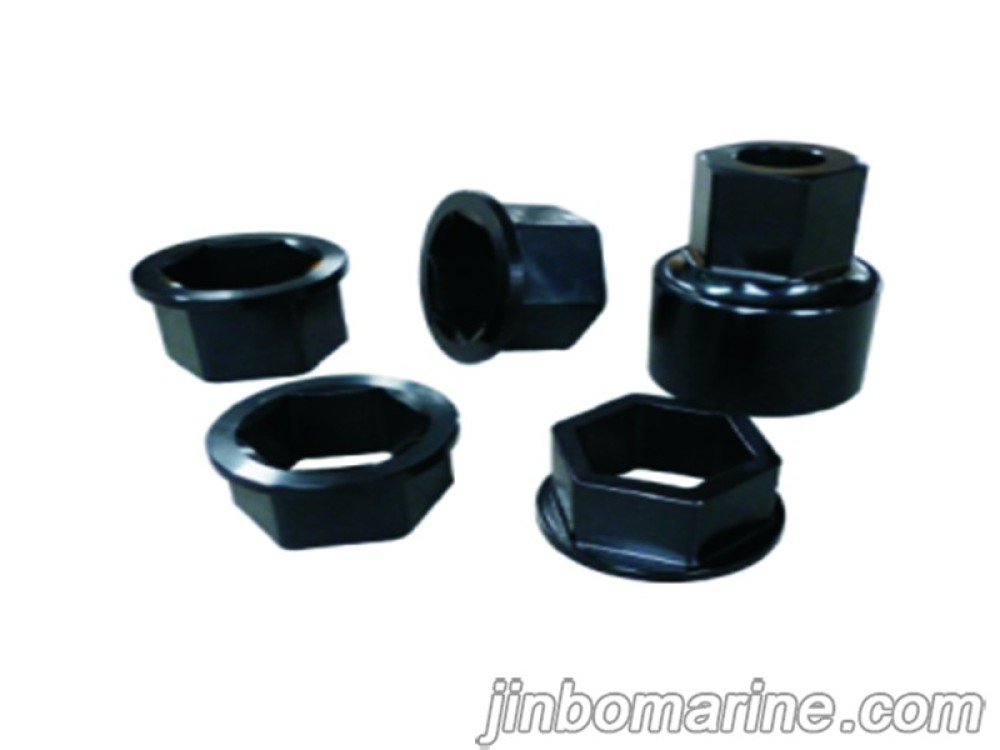

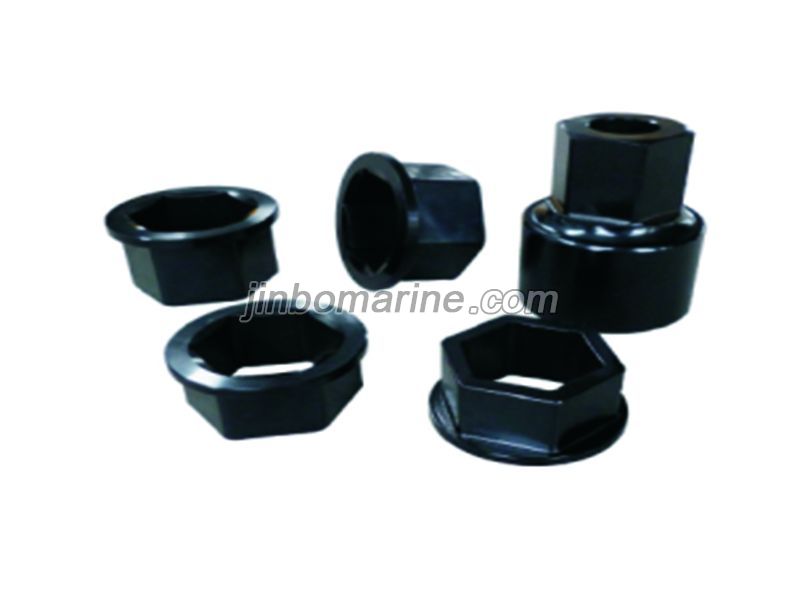

Various Diameter Sockets Designed For Hollow Wrench
Manufacture of high strength Cr Mo alloy steel.
The standard heat treatment process is safe,reliable and durable.
KLCD series adjustable sockets are also suitable for XLCD/DLCD/WHCD series wrenches.
The standard is metric socket size, and can be made into English diameter adjustable sockets or various non-standard.
| Wrench model | Working head type | Right side | Specification and type of variable sleeve | |||||||
| Model | A/B | Model | A/B | Model | A/B | Model | A/B | |||
| 3KLCD | 2KLCD-36 | S=36 | 2K3630 | 36/30 | 2K3627 | 36/27 | 2K3624 | 36/24 | ||
| 2KLCD-41 | S=41 | 2K4136 | 41/36 | 2K4134 | 41/34 | 2K4130 | 41/30 | 2K4127 | 41/27 | |
| 2KLCD-46 | S=46 | 2K4641 | 46/41 | 2K4636 | 46/36 | 2K4634 | 46/34 | 2K4630 | 46/30 | |
| 2KLCD-50 | S=50 | 2K5046 | 50/46 | 2K5041 | 50/41 | 2K5036 | 50/36 | 2K5034 | 50/34 | |
| 2KLCD-55 | S=55 | 2K5550 | 55/50 | 2K5546 | 55/46 | 2K5541 | 55/41 | 2K5536 | 55/36 | |
| 2KLCD-60 | S=60 | 2K6055 | 60/55 | 2K6055 | 60/50 | 2K6055 | 60/46 | 2K6055 | 60/41 | |
| 4KLD | 4KLCD-46 | S=46 | 4K4641 | 46/41 | 4K4636 | 46/36 | 4K4634 | 46/34 | ||
| 4KLCD-50 | S=50 | 4K5041 | 50/41 | 4K5036 | 50/36 | 4K5034 | 50/34 | |||
| 4KLCD-55 | S=55 | 4K5546 | 55/46 | 4K5541 | 55/41 | 4K5536 | 55/36 | 4K5534 | 55/34 | |
| 4KLCD-60 | S=60 | 4K6050 | 60/50 | 4K6046 | 60/46 | 4K6041 | 60/41 | 4K6036 | 60/36 | |
| 4KLCD-65 | S=65 | 4K6555 | 65/55 | 4K6550 | 65/50 | 4K6546 | 65/46 | 4K6541 | 65/41 | |
| 4KLCD-70 | S=70 | 4K7060 | 70/60 | 4K7055 | 70/55 | 4K7050 | 70/50 | 4K7046 | 70/46 | |
| 4KLCD-75 | S=75 | 4K7565 | 75/65 | 4K7560 | 75/60 | 4K7555 | 75/55 | 4K7550 | 75/50 | |
| 4KLCD-80 | S=80 | 4K8070 | 80/70 | 4K8065 | 80/65 | 4K8060 | 80/60 | 4K8055 | 80/55 | |
| 8KLD | 8KLCD-70 | S=70 | 8K7060 | 70/60 | 8K7055 | 70/55 | 8K7050 | 70/50 | ||
| 8KLCD-75 | S=75 | 8K7565 | 75/65 | 8K7560 | 75/60 | 8K7555 | 75/55 | 8K7550 | 75/50 | |
| 8KLCD-80 | S=80 | 8K8070 | 80/70 | 8K8065 | 80/65 | 8K8060 | 80/60 | 8K8055 | 80/55 | |
| 8KLCD-85 | S=85 | 8K8575 | 85/75 | 8K8570 | 85/70 | 8K8565 | 85/65 | 8K8560 | 85/60 | |
| 8KLCD-90 | S=90 | 8K9080 | 90/80 | 8K9075 | 90/75 | 8K9070 | 90/70 | 8K9065 | 90/65 | |
| 8KLCD-95 | S=95 | 8K9585 | 95/85 | 8K9580 | 95/80 | 8K9575 | 95/75 | 8K9570 | 95/70 | |
| 8KLCD-100 | S=100 | 8K10090 | 100/90 | 8K10085 | 100/85 | 8K10080 | 100/80 | 8K10075 | 100/75 | |
| 8KLCD-105 | S=105 | 8K10595 | 105/95 | 8K10590 | 105/90 | 8K10585 | 105/85 | 8K10580 | 105/80 | |
| 14KLD | 14KLCD-80 | S=80 | 14K8070 | 80/70 | 14K8065 | 80/65 | 14K8060 | 80/60 | ||
| 14KLCD-85 | S=85 | 14K8575 | 85/75 | 14K8570 | 85/70 | 14K8565 | 85/65 | 14K8560 | 90/65 | |
| 14KLCD-90 | S=90 | 14K9080 | 90/80 | 14K9075 | 90/75 | 14K9070 | 90/70 | 14K9065 | 95/70 | |
| 14KLCD-95 | S=95 | 14K9585 | 95/85 | 14K9580 | 95/80 | 14K9575 | 95/75 | 14K9570 | 100/75 | |
| 14KLCD-100 | S=100 | 14K10090 | 100/90 | 14K10085 | 100/85 | 14K10080 | 100/80 | 14K10075 | 105/80 | |
| 14KLCD-105 | S=105 | 14K10595 | 105/95 | 14K10590 | 105/90 | 14K10585 | 105/85 | 14K10580 | 110/85 | |
| 14KLCD-110 | S=110 | 14K110100 | 110/100 | 14K11095 | 110/95 | 14K11090 | 110/90 | 14K11085 | 115/90 | |
| 14KLCD-115 | S=115 | 14K115105 | 115/105 | 14K115100 | 115/100 | 14K11595 | 115/95 | 14K11590 | ||
| 18KLD | 18KLCD-85 | S=85 | 18K8575 | 85/75 | 18K8570 | 85/70 | 18K8565 | 85/65 | ||
| 18KLCD-90 | S=90 | 18K9080 | 90/80 | 18K9075 | 90/75 | 18K9070 | 90/70 | 18K9065 | 90/65 | |
| 18KLCD-95 | S=95 | 18K9585 | 95/85 | 18K9580 | 95/80 | 18K9575 | 95/75 | 18K9570 | 95/70 | |
| 18KLCD－100 | S=100 | 18K10090 | 100/90 | 18K10085 | 100/85 | 18K10080 | 100/80 | 18K10075 | 100/75 | |
| 18KLCD-105 | S=105 | 18K10595 | 105/95 | 18K10590 | 105/90 | 18K10585 | 105/85 | 18K10580 | 105/80 | |
| 18KLCD-110 | S=110 | 18K110100 | 110/100 | 18K11095 | 110/95 | 18K11090 | 110/90 | 18K11085 | 110/85 | |
| 18KLCD-115 | S=115 | 18K115105 | 115/105 | 18K115100 | 115/100 | 18K11595 | 115/95 | 18K11590 | 115/90 | |
| 18KLCD-120 | S=120 | 18K120110 | 120/110 | 18K120105 | 120/105 | 18K120100 | 120/100 | 18K12095 | 120/95 | |
| 20KLD | KLCD30-90 | S=90 | 30K9080 | 90/80 | 30K9075 | 90/75 | 30K9070 | 90/70 | ||
| KLCD30-95 | S=95 | 30K9585 | 95/85 | 30K9580 | 95/80 | 30K9575 | 95/75 | 30K9570 | 95/70 | |
| KLCD30-100 | S=100 | 30K10090 | 100/90 | 30K10085 | 100/85 | 30K10080 | 100/80 | 30K10075 | 100/75 | |
| KLCD30-105 | S=105 | 30K10595 | 105/95 | 30K10590 | 105/90 | 30K10585 | 105/85 | 30K10580 | 105/80 | |
| KLCD30-110 | S=110 | 30K110100 | 110/100 | 30K11095 | 110/95 | 30K11090 | 110/90 | 30K11085 | 110/85 | |
| KLCD30-115 | S=115 | 30K115105 | 115/105 | 30K115100 | 115/100 | 30K11595 | 115/95 | 30K11590 | 115/90 | |
| KLCD30-120 | S=120 | 30K120110 | 120/110 | 30K120105 | 120/105 | 30K120100 | 120/100 | 30K120105 | 120/105 | |
| KLCD30-130 | S=130 | 30K130120 | 130/120 | 30K30115 | 130/115 | 30K130110 | 130/110 | 30K130105 | 130/105 | |
| 30KLD | KLCD40-95 | S=95 | 40K9585 | 95/85 | 40K9580 | 95/80 | 40K9575 | 95/75 | ||
| KLCD40-100 | S=100 | 40K10090 | 100/90 | 40K10085 | 100/85 | 40K10080 | 100/80 | 40K10075 | 100/75 | |
| KLCD40-105 | S=105 | 40K10595 | 105/95 | 40K10590 | 105/90 | 40K10585 | 105/85 | 40K10580 | 105/80 | |
| KLCD40-110 | S=110 | 40K110100 | 110/100 | 40K11095 | 110/95 | 40K11090 | 110/90 | 40K11085 | 110/85 | |
| KLCD40-115 | S=115 | 40K115105 | 115/105 | 40K115100 | 115/100 | 40K11595 | 115/95 | 40K11590 | 115/90 | |
| KLCD40-120 | S=120 | 40K120110 | 120/110 | 40K120105 | 120/105 | 40K120100 | 120/100 | 40K12095 | 120/95 | |
| KLCD40-130 | S=130 | 40K130120 | 130/120 | 40K130115 | 130/115 | 40K130110 | 130/110 | 40K130105 | 130/105 | |
| KLCD40-145 | S=145 | 40K145135 | 145/135 | 40K145130 | 145/130 | 40K145120 | 145/120 | 40K145115 | 145/115 | |
| KLCD40-150 | S=150 | 40K150135 | 150/135 | 40K150130 | 150/130 | 40K150120 | 150/120 | 40K150115 | 150/115 | |
| KLCD40-155 | S=155 | 40K155145 | 155/145 | 40K155135 | 155/135 | 40K155130 | 155/130 | 40K155120 | 155/120 | |
