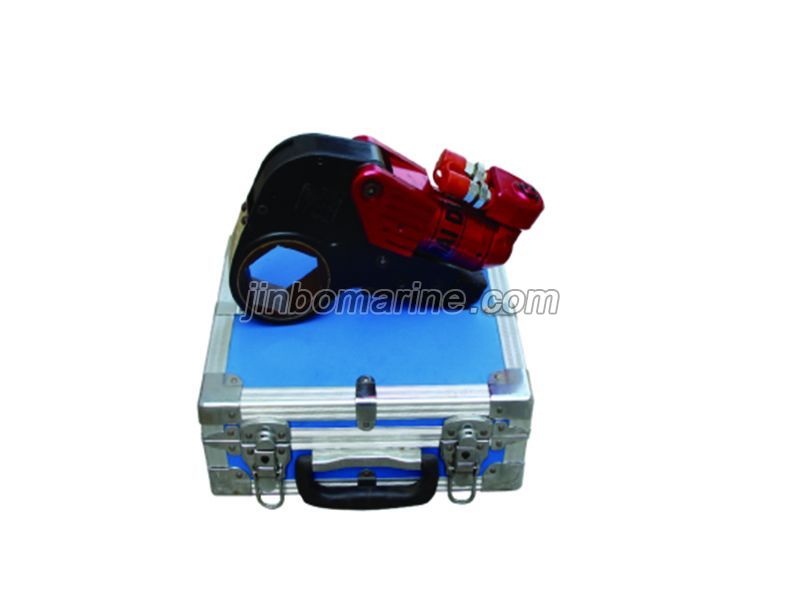

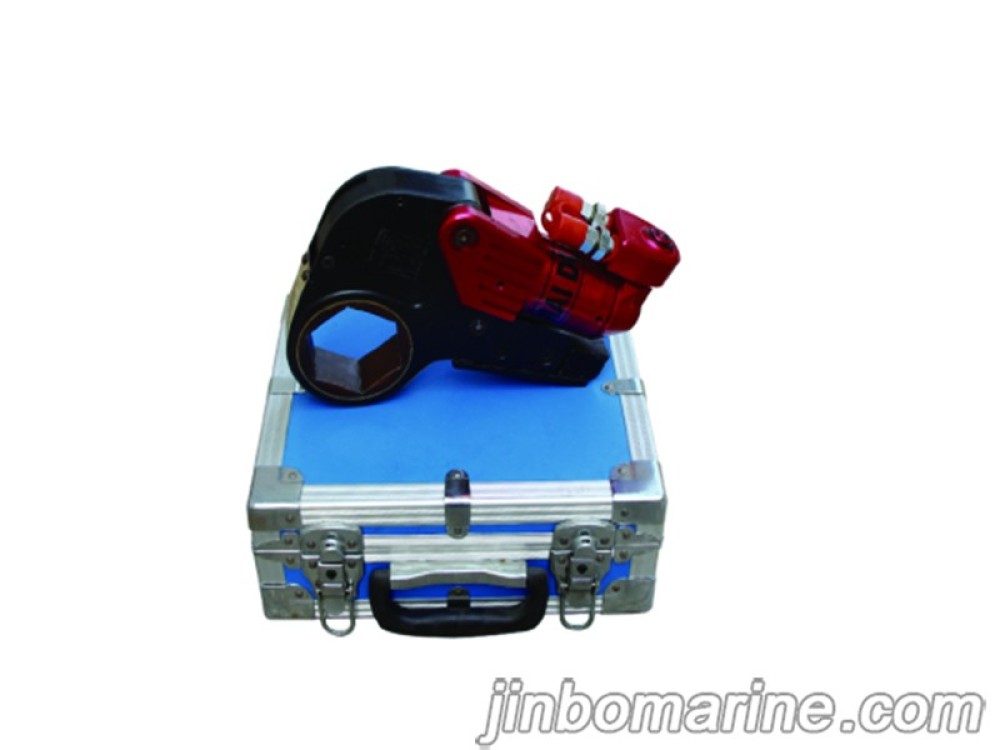

Aluminum-Titanium Alloy Hollow Hydraulic Wrench

Request a Quote Not what you need, please send your RFQs via Email.

Details

China Aluminum-Titanium Alloy Hollow Hydraulic Wrench:

Aluminum-Titanium Alloy Hollow Hydraulic Wrench

Product features:

Using aluminum-titanium alloy material, one-piece molding, high toughness and light weight;

The hollow hydraulic wrench is composed of a power head and a working head, which can be used for multiple purposes. One power head can be equipped with a variety of working heads, and the working range is wide;

The oil pipe joint can be rotated 360° X 180°,and the universal rotary joint includes a safety valve to prevent damage caused by excessive pressure;

The extensible metric and inch hexagonal drive shafts and sleeves of the working head are suitable for use in small spaces;

The torque repeatability is as high as ±3%,and it is equipped with a movable handle to facilitate the movement of the oil hole, which is beneficial to the wrench life,prevents wear,and enhances lubrication;

It can realize automatic continuous disassembly and locking according to user needs,and improve the locking efficiency of conventional hydraulic wrenches by 1/3.

Model HKB03 HKBO5 KB10 HKB20 HKB30 HKB40 HKB50
Max.torque(Nm) 2266 5188 9855 17202 23072 40639 50956
Min.torque(Nm) 227 519 986 1720 2307 4064 5095
Nut opposite side(mm) 27-50 27-65 50-90 65-115 75-135 80-155 130-200
Working head model KB50 KB65 KB90 KB115 KB135 KB155 KB200
L(mm) 205 251.3 302.5 367 400.5 457.5 502
H1(mm) 129 163 191 223 246 282 322
H2(mm) 100 136 166.5 198 224 265 328
W1(mm) 32 41 53 64 70 84 90
W2(mm) 50 66 83 99 110 132 144
Weight(kg) 2.3 4.9 9 16.3 18.1 30.2 39.5
