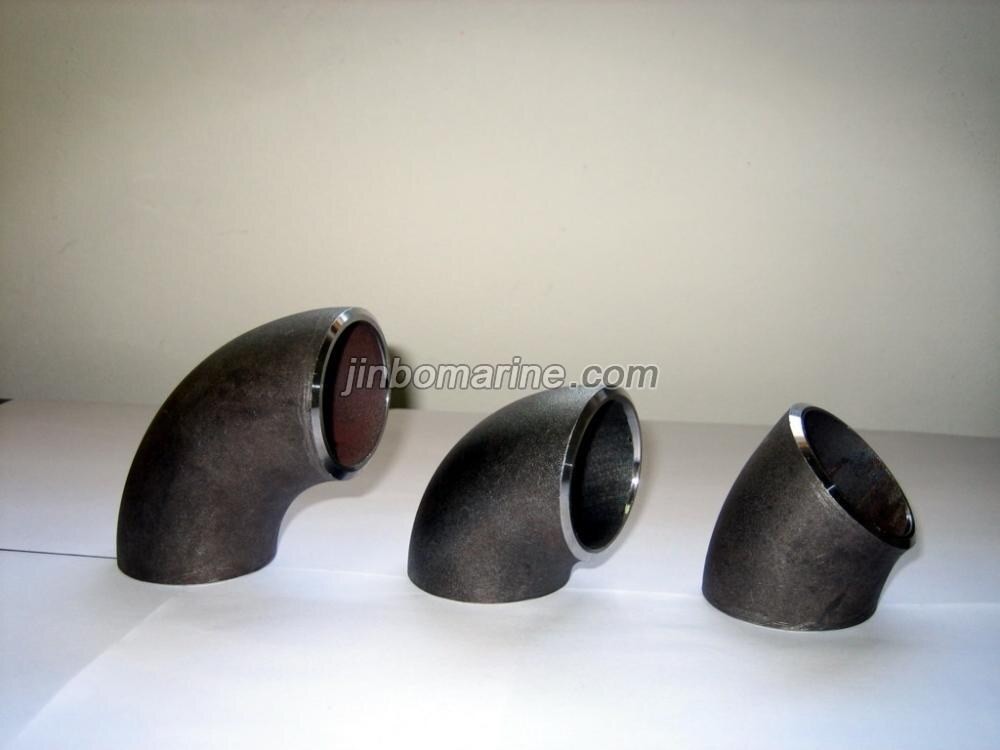

ASME B16.9 Steel Elbow
- Category:Elbow
- Material:Steel
- Standards:ASME B16.9/16.28
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Product Description:
ASME/ANSI B16.9 - Factory-Made Wrought Steel Butt
welding Fittings.This Standard
covers overall dimensions,tolerances,ratings,testing,and markings for wrought
factory made buttwelding fittings in sizes NPS 1/2 through
48 (DN
15 through 1200).
ASME/ANSI
B16.28 - Wrought Steel Buttwelding Short Radius Elbows and Returns.This Standard
covers ratings,overall dimensions,testing,tolerances,and markings for wrought
carbon and alloy steel butt welding short radius elbows and returns.
The term
wrought denotes fittings made of pipe,tubing,plate,or forgings.
ASME B16 Standards covers pipes and fittings in cast iron,cast bronze,wrought copper and steel
Dimensions of butt-welding fittings can be taken from the tables below
Specification:
|
Nominal Pipe Size (inches) |
Outside Pipe Diameter (inches) |
Distance Center to End (inches) |
|
| 90o Elbows | 45o Elbows | ||
| 1 | 1.315 | 1 1/2 | 7/8 |
| 1 1/4 | 1.660 | 1 7/8 | 1 |
| 1 1/2 | 1.900 | 2 1/4 | 1 1/8 |
| 2 | 2.375 | 3 | 1 3/8 |
| 2 1/2 | 2.875 | 3 3/4 | 1 3/4 |
| 3 | 3.5 | 4 1/2 | 2 |
| 3 1/2 | 4.0 | 5 1/4 | 2 1/4 |
| 4 | 4.5 | 6 | 2 1/2 |
| 5 | 5.563 | 7 1/2 | 3 1/8 |
| 6 | 6.625 | 9 | 3 3/4 |
| 8 | 8.625 | 12 | 5 |
| 10 | 10.750 | 15 | 6 1/4 |
