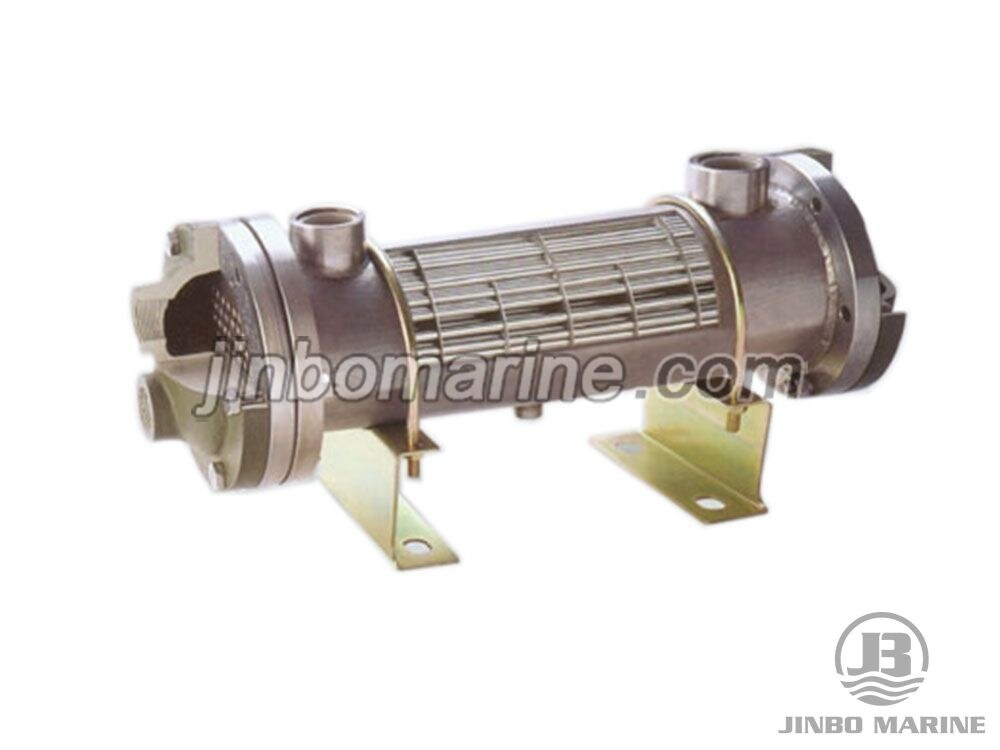

BC Series Water-cooled Heat Exchangers

Request a Quote Not what you need, please send your RFQs via Email.

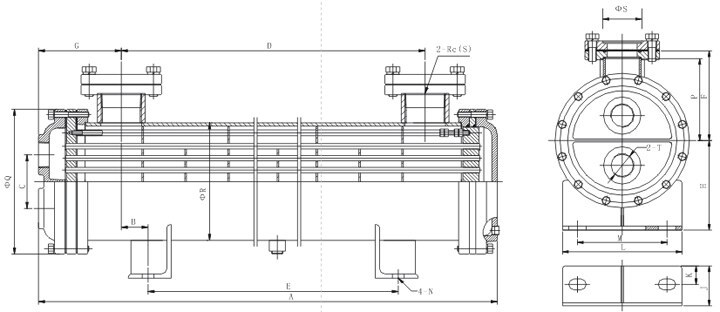

Details

Description:

The FC(Y) series water-cooled heat exchanger adopts a finned heat exchanger with a traditional structure and a new foreign technology design. The small product is a fixed tube plate structure, model FC;

The large product is a mobile tube plate structure, model FCY.

The heat transfer tube uses a copper tube to roll out the heat fins. The heat transfer area is large, and the product is small in size and light in weight. Suitable for cooling of low viscosity and relatively clean oil; can be applied to plastic machinery, hydraulic setting

Preparation, air compressor, oil slick system, fluid coupling, power equipment and other industries.

The series of medium and large products adopts a movable tube plate structure, which can be disassembled for cleaning and repair;

This series of products can be designed and manufactured according to customer requirements from small to medium to large scale, covering a wide range.

Techincal data:

Model A C D E F G H J K L M N P Q R S T
BC-302 309 45 152 107 85 81 87 35 15 95 58 11x20 62 120 89 Rc3/4
Φ28.5
DN20
Rc3/4
BC-303 381 224 179
BC-304 531 374 329
BC-305 597 440 395
BC-306 741 584 539
BC-307 813 656 611
BC-308 885 728 683
BC-406 469 60 284 240 110 95 125 50 20 160 110 18x22 87 150 114 Rc1 1/4
Φ43
DN32
Rc3/4
BC-407 547 362 318
BC-408 613 428 384
BC-410 757 572 528
BC-412 829 644 600
BC-413 901 716 672
BC-415 1045 860 816
BC-417 1188 1003 959
BC-510 530 70 340 276 140 101 160 50 20 180 120 18x25 105 180 139 Rc1 1/2
Φ52
DN40
Rc1
BC-512 596 406 342
BC-515 740 550 486
BC-517 812 662 558
BC-519 884 694 630
BC-522 1028 838 774
BC-526 1171 981 917
BC-528 1281 1091 1027
BC-621 746 70 502 427 160 127 180 160 50 30 210 18x30 122 210 165 Rc2
Φ65
DN50
Rc1
BC-623 782 538 463
BC-627 916 672 597
BC-631 1034 790 715
BC-634 1128 884 809
BC-637 1212 968 893
BC-640 1332 1088 1013
BC-643 1402 1158 1083
BC-645 1487 1243 1168

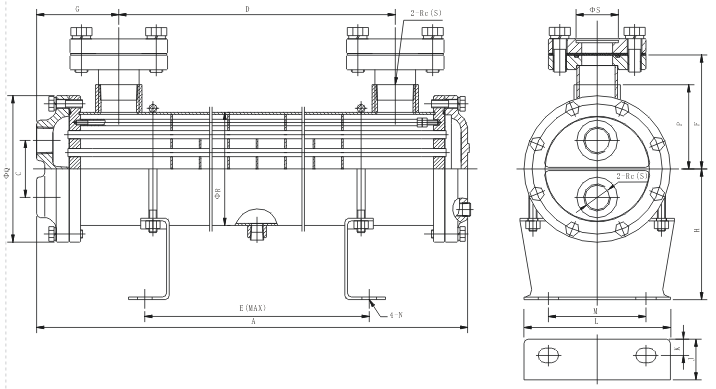

BCY Series Water-cooled Heat Exchangers:

Model A B C D E F G H J K L M N P Q R S T
BCY-510 528 32 70 317 253 140 121 160 50 20 180 120 18x25 105 180 139 Rc1 1/2
Φ52
DN40
Rc1
BCY-512 594 383 319
BCY-515 738 527 463
BCY-517 810 599 535
BCY-519 882 671 607
BCY-522 1026 815 751
BCY-526 1169 958 894
BCY-528 1279 1068 1004
BCY-621 738 37.5 70 479 404 160 145 180 50 20 210 140 18x30 122 210 165 Rc2
Φ65
DN50
Rc1
BCY-623 774 515 440
BCY-627 908 649 574
BCY-631 1026 767 692
BCY-634 1120 861 786
BCY-637 1204 945 870
BCY-640 1324 1065 990
BCY-643 1394 1135 1060
BCY-645 1479 1220 1145
BCY-842 905 50 100 613 513 180 155 180 80 37 240 180 22x35 165 270 219 Rc2 1/2
Φ77
DN65
Rc1 1/2
BCY-850 1050 757 657
BCY-858 1190 900 800
BCY-864 1300 1010 910
BCY-869 1390 1100 1000
BCY-877 1500 1210 1110
BCY-881 1610 1320 1220
BCY-890 1780 1490 1390
BCY-896 1900 1610 1510
BCY-1085 1270 60 120 880 760 220 210 220 80 37 280 200 22x35 200 350 273 Rc3
Φ92
DN80
Rc1 1/2
BCY-1095 1380 990 870
BCY-10100 1470 1080 960
BCY-10110 1580 1190 1070
BCY-10120 1690 1300 1180
BCY-10127 1770 1380 1260
BCY-10134 1860 1470 1350
BCY-10144 1980 1590 1470
BCY-10154 2100 1710 1590
BCY-10165 2240 1850 1730
