Belt Type Second Stage Compression Marine Air Compressor
Three cylinders. Medium pressure 3.0 MPa. Air cooling. Second stage compression. Piston type. Suitable for air bottle equal or smaller than 0.5 m3 to 1.0 m3. ...
Loading product images...
Belt Type Second Stage Compression Marine Air Compressor
PDF Datasheet
We can supply according to your requirement.
China Belt Type Second Stage Compression Marine Air Compressor:
Three cylinders.
Medium pressure 3.0 MPa.
Air cooling.
Second stage compression.
Piston type.
Suitable for air bottle equal or smaller than 0.5 m3 to 1.0 m3.
Feature
High Efficiency,energy saving,low noise.
Specification
| Model | Type | Displacement capacity | Rated pressure | Rotate speed | Motor power | Weight | Overall size | |
| m3/h | m3/min | Mpa | r/min | KW | Kg | mm | ||

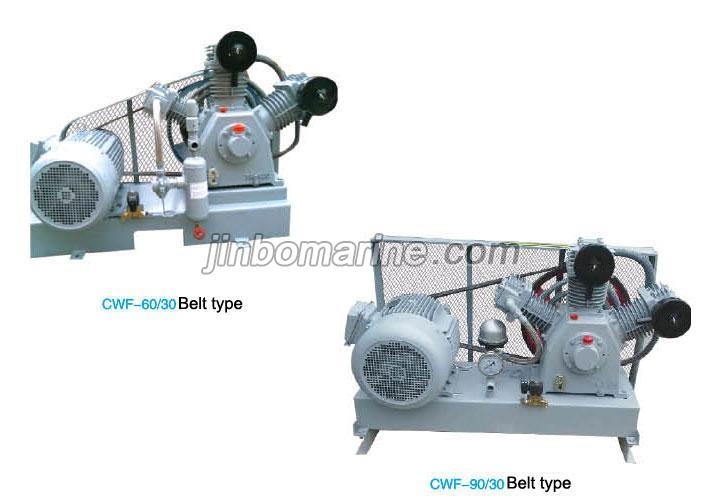

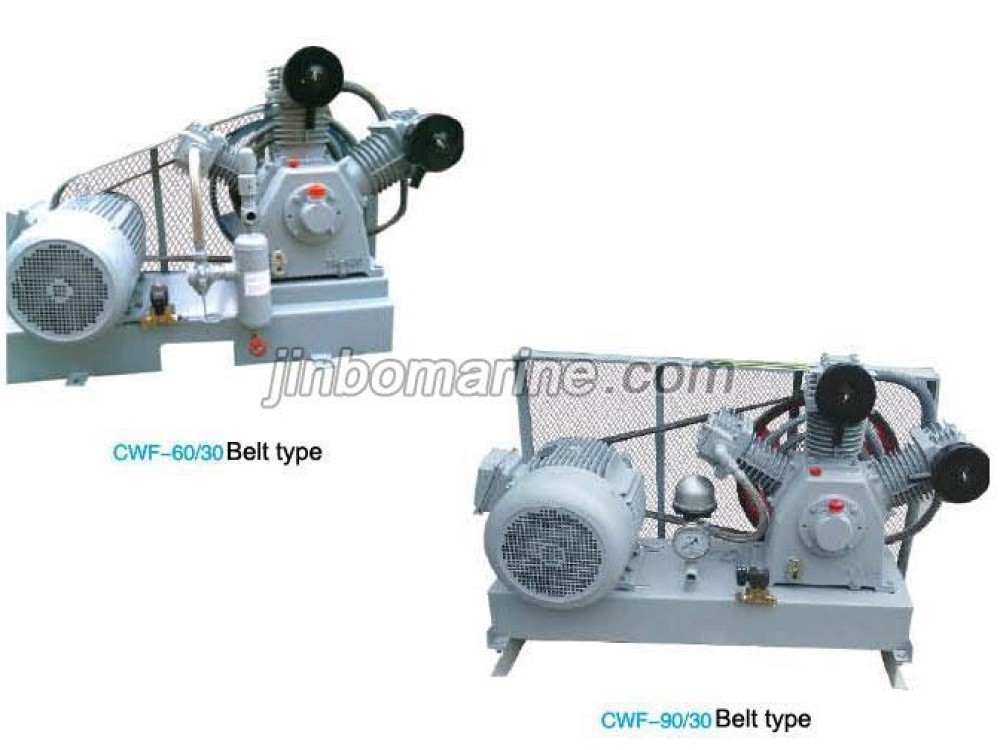

| CWF-60/30 | Three cylinders. Air cooling. Second stage compression. Piston type. | 60 | 1 | 3 | 650 | 15 | 480 | 1200x750x850 |
| CWF-90/30 | 90 | 1.5 | 770 | 18.5 | 490 | 1300x750x850 | ||
