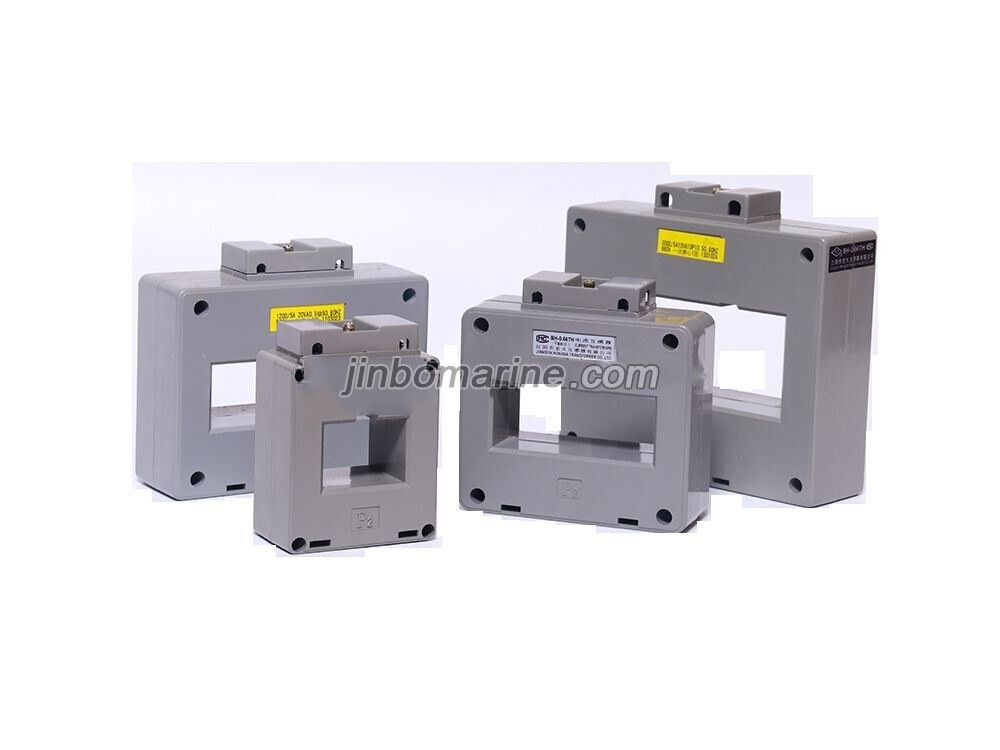

BH-0.66TH II Big Size Marine Current Transformer

Request a Quote Not what you need, please send your RFQs via Email.

Details

Transformer Definition

Transformer, instrument transformer), also known as instrument transformer, current transformer and voltage transformer is a general designation to high voltage to low voltage, large current to small current, its function is used to measure or to protect system is mainly to high voltage or high current in proportion to transform into standard low voltage (100 v) or small current (5 a or 1 a, shall mean rating), in order to achieve the standardization of measuring instrument to protect equipment and automatic control equipment, miniaturization transformer can also be used to separate the high voltage system at the same time, in order to ensure personal and equiment safety.

BH-0.66TH II Big Size Marine Current Transformer

1.Application: mainly used for electric power, electrical line voltage measurement,overload protection, intercept signal.
2.Working temperature: -40℃~+40℃
3.Rated voltage: 0..66KV
4.Rated frequency: 50/60 HZ
5.Rated primary voltage:5~10000kv
6. Rated secondary voltage: 1~5A
7.Rated secondary load: 2.5~50VA
8.Accurate level: 5P,10P
9:Standard: GB20840, IEC61869

BH-0.66TH II Big Size Marine Current Transformer Parameters

Auxiliary Model Overall Size Inner Hole Size Installation Size
W H D a b M
160 II 244 199 29 172 108
170 II 250 150 60 171 52 187
180 II 228 100 48 181 35 102
200 II 247 158 55 207 61 187
220 II 270 149 55 226 52 170
260 II 308 211 63 265 103

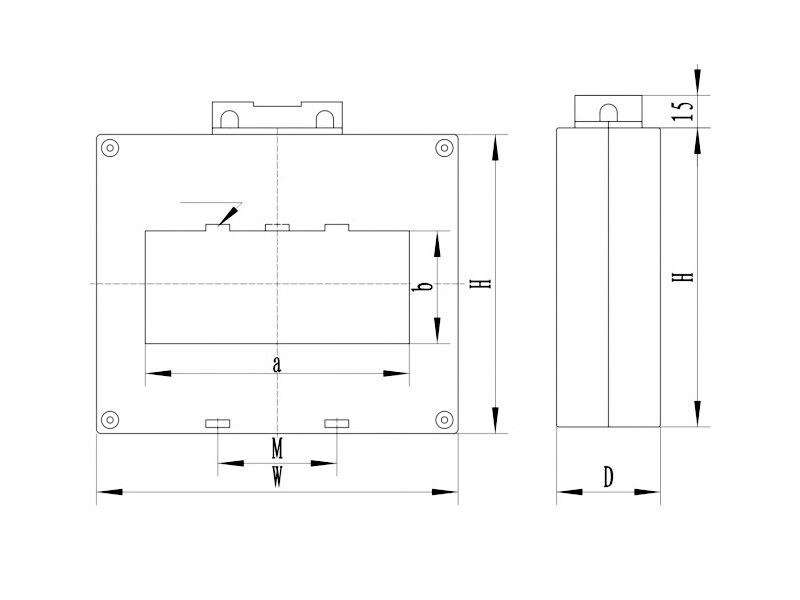

BH-0.66TH II Big Size Marine Current Transformer Drawing
