BLT081 Side Load Lifting Point

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China BLT081 Side Load Lifting Point:

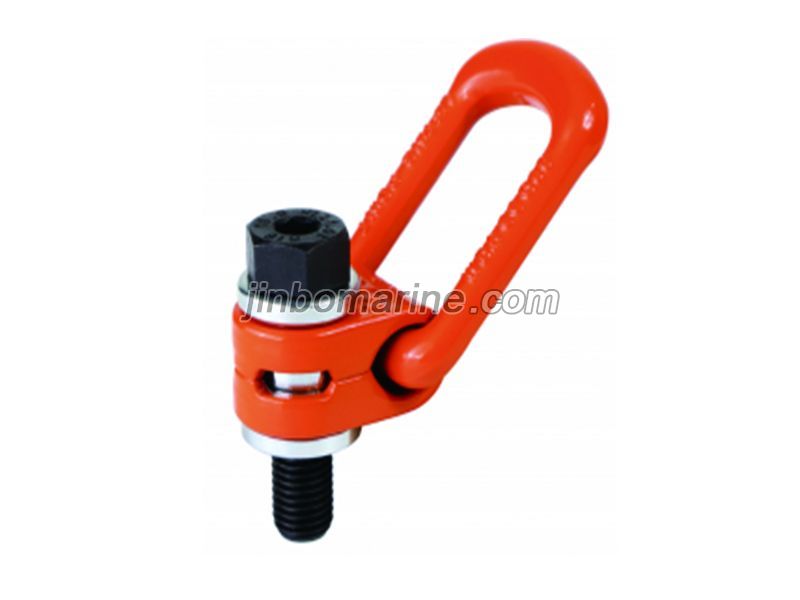

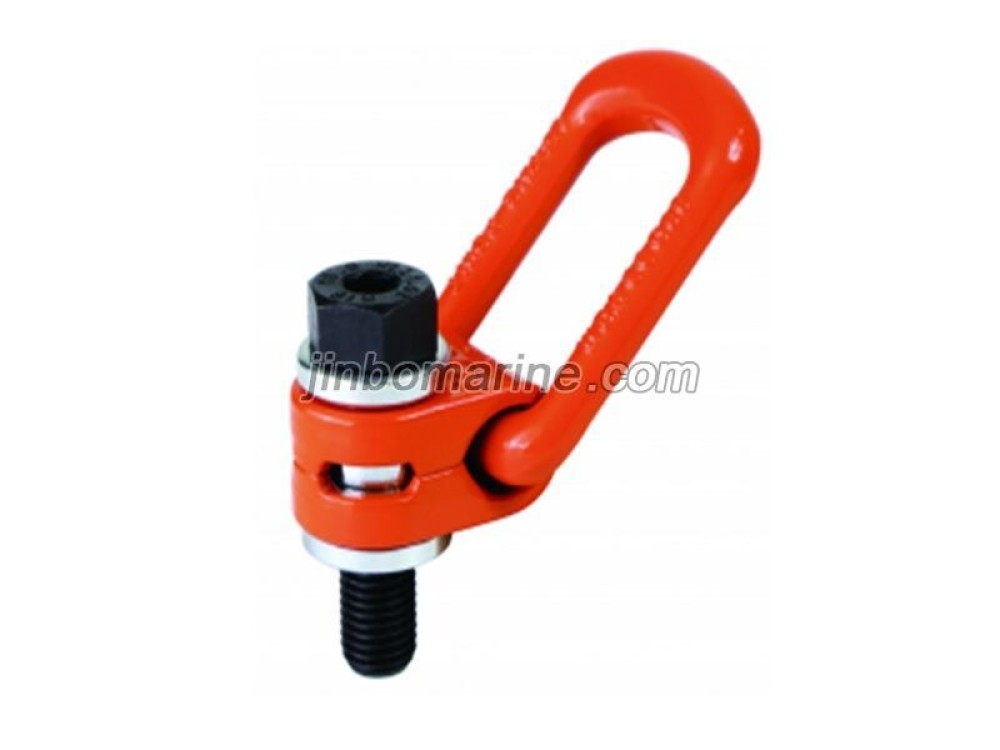

BLT081 Side Load Lifting Point

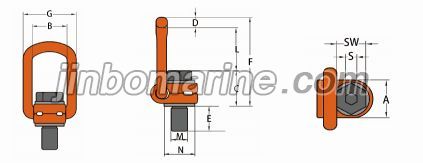

Metric Thread:

ITEM NO WLL/T M E A B C D F G L N S SW Locking Torque /Nm Kg
BLTO81-M8 0.3 M8x1.25 11 34 37 42 14 98.5 57 42.5 31 6 13 10-40 0.5
BLT081-M10 0.63 M10x1.5 16 34 37 44 14 98.5 57 40.5 31 6 16 10-40 0.5
BLT081-M12 1 M12x1.75 18 34 37 45 14 98.5 57 39.5 31 8 18 15-40 0.5
BLTO81-M14 1.2 M14x2.0 21 34 37 48 14 98.5 57 36.5 31 10 24 30-100 0.5
BLTO81-M16 1.5 M16x2.0 24 34 37 48 14 98.5 57 36.5 31 10 24 45-130 0.5
BLT081-M18 2 M18x2.5 26 50 54 58 16.5 143 82 68.5 45 12 30 100-170 1.3
BLT081-M20 2.5 M20x2.5 30 50 54 58 16.5 143 82 68.5 45 12 30 100-170 1.3
BLTO81-M22 3 M22x2.5 30 50 54 61 16.5 143 82 65.5 45 14 36 100-170 1.4
BLT081-M24 4 M24x3.0 36 50 54 61 16.5 143 82 65.5 45 14 36 190-280 1.4
BLTO81-M27 4 M27x3.0 38 60 65 82 22 170 99 66 59 17 46 250-500 3
BLT081-M30 5 M30x3.5 48 60 65 82 22 170 99 66 59 17 46 270-600 3
BLT081-M33 6 M33x3.5 54 60 65 85 22 170 99 63 59.5 22 55 270-600 3
BLTO81-M36S 7 M36x4.0 54 60 65 85 22 170 99 63 59.5 22 55 270-600 3.2
BLTO81-M36B 8 M36x4.0 62 77 85 104 27 226.5 123 95.5 69 22 55 270-600 6
BLT081-M39 8 M39x4.0 62 77 85 104 27 226.5 123 95.5 69 22 55 350-800 6
