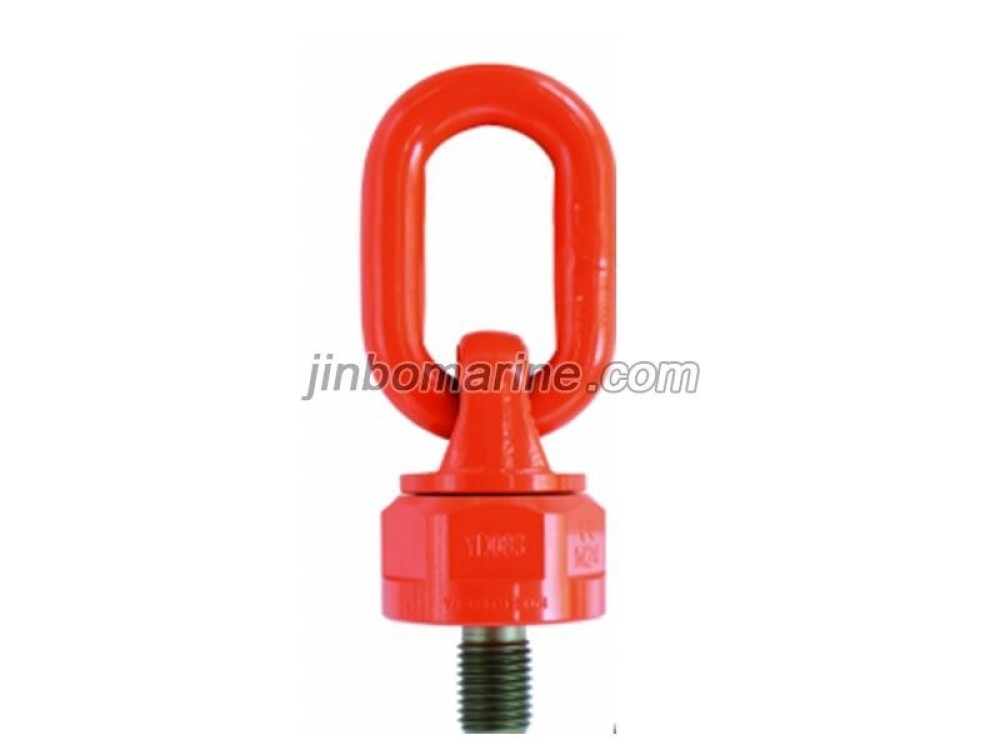

BLT083 Universal Hoist Ring

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China BLT083 Universal Hoist Ring:

BLT083 Universal Hoist Ring

Metric Thread:

ITEM NO. WLL/T M E A±2 B±3 C D F±3 G K Locking Torque /Nm Kg
BLTO83-M8 0.4 M8x1.25 12 30 43.5 54 12 97.5 40 37 10-40 0.43
BLT083-M10 0.6 M10x1.5 19 30 43.5 54 12 97.5 40 37 10-40 0.44
BLT083-M12S 0.7 M12x1.75 19 30 43.5 54 12 97.5 40 37 15-40 0.44
BLTO83-M14 1.25 M14x2.0 31.8 30 43.5 54 12 97.5 40 37 30-100 0.46
BLTO83-M16S 1.5 M16x2.0 31.8 30 43.5 54 12 97.5 40 37 45-130 0.47
BLT083-M12B 1.05 M12x1.75 19 34 54.5 78 16 132.5 59 54.5 15-40 1.3
BLT083-M16B 1.9 M16x2.0 30 34 54.5 78 16 132.5 59 54.5 45-130 1.3
BLTO83-M18S 1.9 M18x2.5 30 34 54.5 78 16 132.5 59 54.5 100-170 1.4
BLTO83-M20S 2 M20x2.5 30 34 54.5 78 16 32.5 59 54.5 100-170 1.4
BLTO83-M22S 2 M22x2.5 30 34 54.5 78 16 132.5 59 54.5 100-170 1.4
BLT083-M24S 3.15 M24x3.0 30 34 54.5 78 16 132.5 59 54.5 190-280 1.4
BLT083-M18B 2 M18x2.5 38.1 40 67 93 20 160 70 64.5 100-170 2.3
BLTO83-M20B 2.5 M20x2.5 38.1 40 67 93 20 160 70 64.5 100-170 2.3
