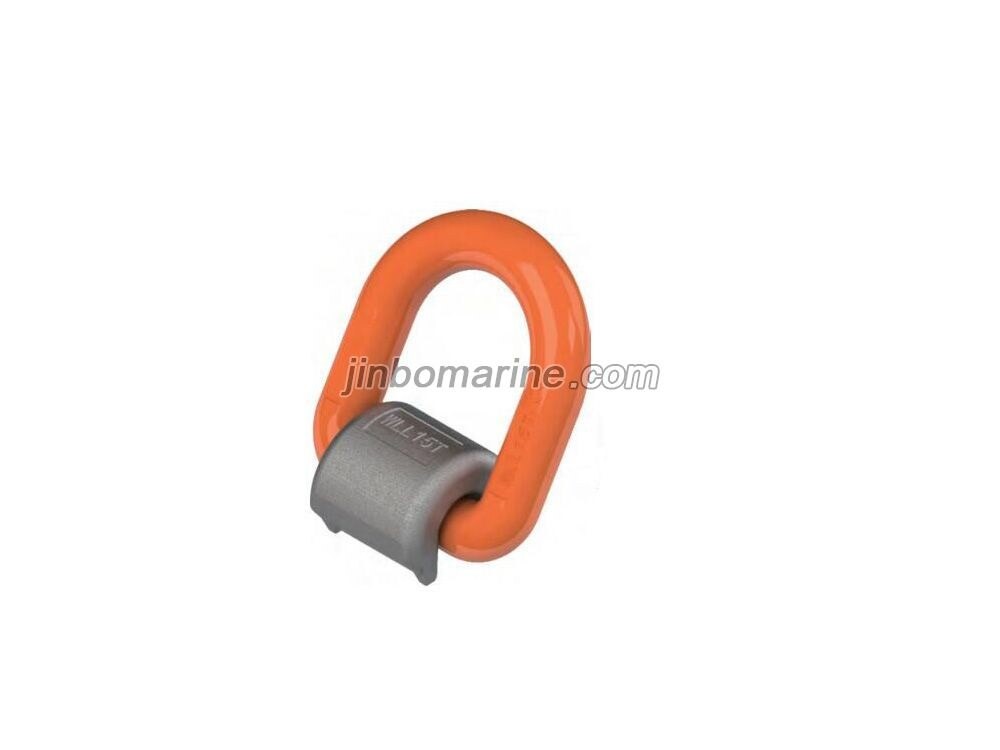

BLT085 G80 Lifting Points

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

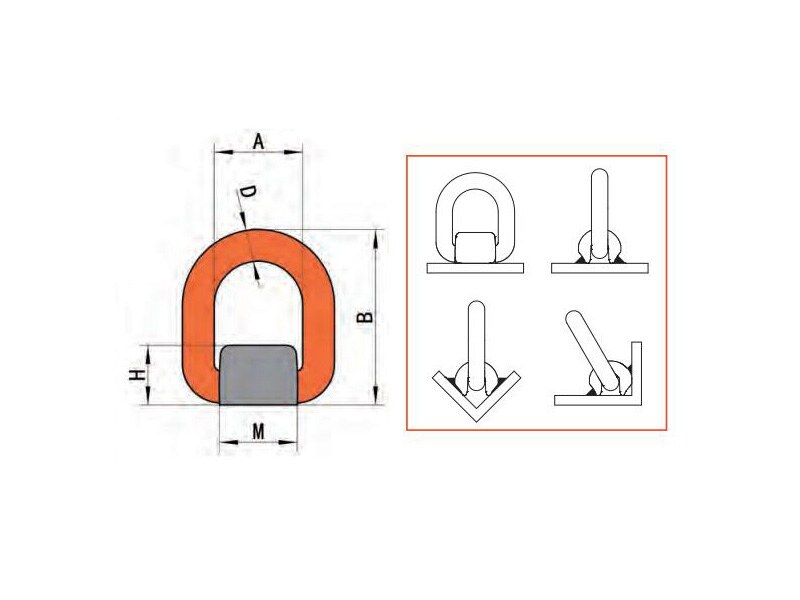

BLT085 G80 Lifting Points Drawing

BLT085 G80 Lifting Points Parameters

ITEM NO. WLL/T Weight/kg
BLT085-01 1.12T 0.4
BLT085-02 2T 0.47
BLT085-03 3.15T 0.69
BLT085-05 5.3T 1.46
BLT085-08 8T 2.5
BLT085-10 10T 3.2
BLT085-15 15T 5.79
BLT085-20 20T 15.5
ITEM NO. TECHNICAL PARAMETERS/MM
A B D M H
BLT085-01 41 78.5 13 37 35
BLT085-02 42 88 14 40 37
BLT085-03 45 94 17 42.5 40
BLT085-05 55 118 22 31 52
BLT085-08 70 141 27 70.5 57
BLT085-10 85 165 28 78 66
BLT085-15 97 188 34 90 77
BLT085-20 150 250 46 130 98
