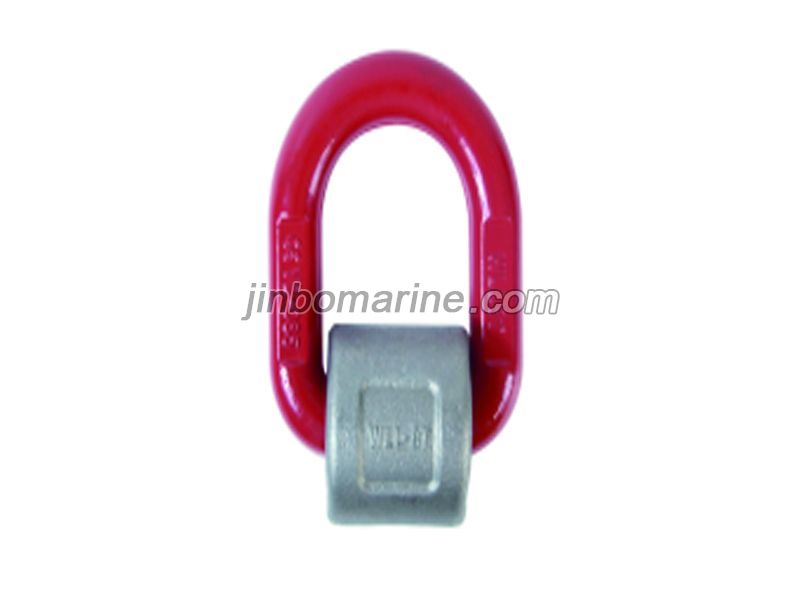

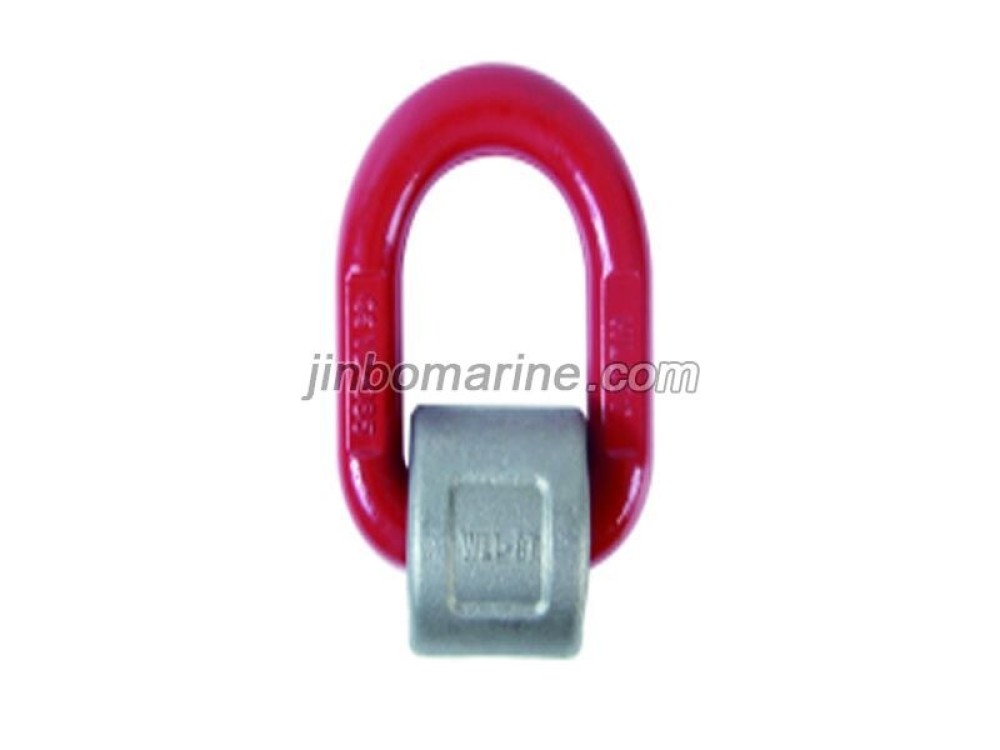

BLT085 G80 Weld-on Lifting Point

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China BLT085 G80 Weld-on Lifting Point:

BLT085 G80 Weld-on Lifting Point

Metric Thread:

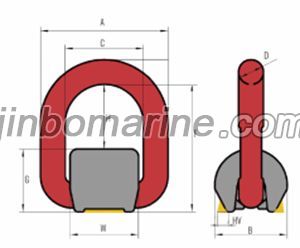

ITEM NO. WLL/T Dimensional Parameters/mm Kg
A B C D F G H HV W
BLT085-01 1.12 67 38 41 13 68 33 35 5 36 0.4
BLT085-02 2 70 40 42 14 77 35.5 41.5 6 38 0.5
BLTO85-03 3.15 80 43 45 17.5 80.5 39 41.5 7 43 0.7
BLT085-05 5.3 98 60 54 22 97 49 48 8 50 1.4
BLT085-08 80 124 69 70 27 118 58 60 10 66 2.6
BLT085-10 10 140 75 84 28 143 62 81 12 76 3.5
BLT085-15 15 163 87 95 34 155 69 86 15 88 5.5
BLT085-20 20 239 125 147 46 234.5 88 146.5 20 124 15
