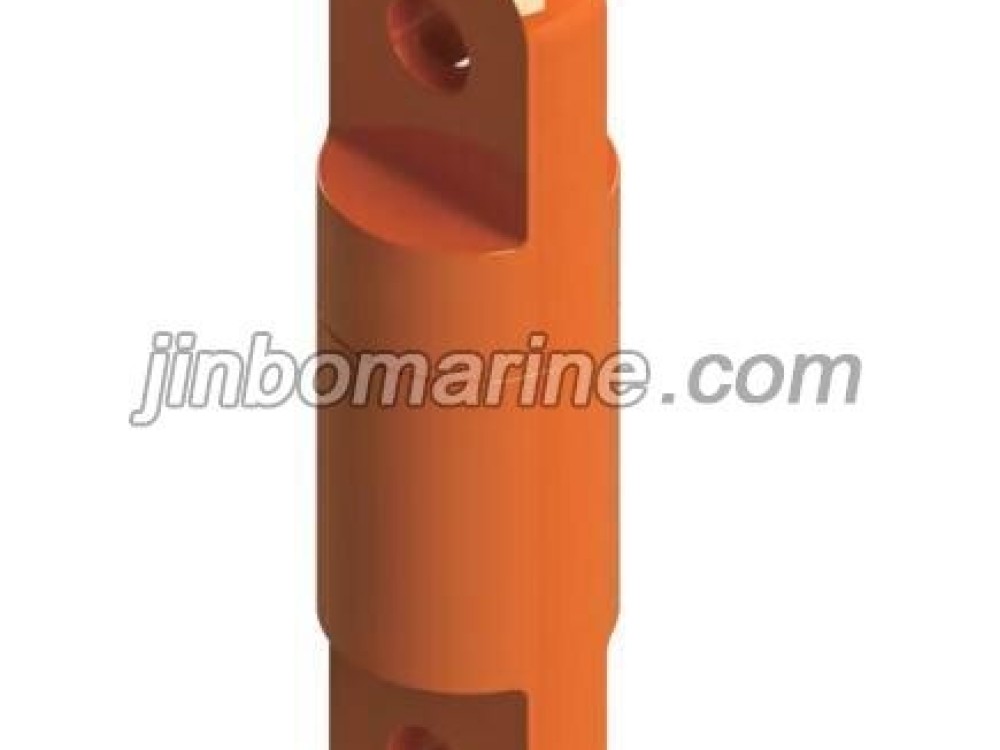

BLT088 Angular Contat Bearing Swivels-OO Style

Request a Quote Not what you need, please send your RFQs via Email.

Details

BLT088 Angular Contat Bearing Swivels-OO Style

The rotating rings are made of high-strength and high-toughness special alloy steel forging and finishing, all of which are modulated and heat treated.
The design safety factor of the rotating ring is 4:1
The independent test load should be twice the safe working load when the rotating ring is tested and certified.
The surface of the rotating ring is galvanized or plastic coated, so that the product can have better corrosion resistance and longevity.
The rotating ring is provided with a grease nipple to facilitate maintenance and make the product have better performance.

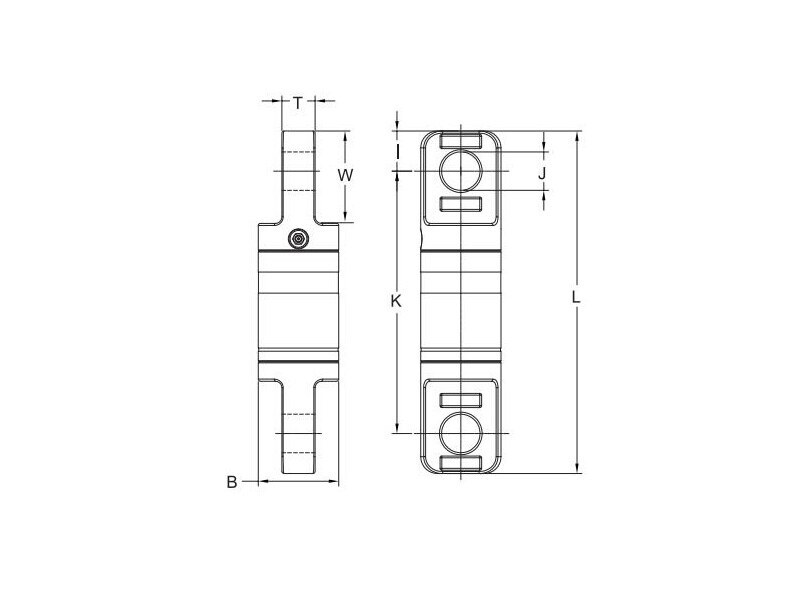

BLT088 Angular Contat Bearing Swivels-OO Style Drawing

BLT088 Angular Contat Bearing Swivels-OO Style Parameters

ITEM NO. SIZE WLL/T WEIGHT/KG
BLT088-007 0.75 0.75 0.5
BLT088-015 1.5 1.5 0.9
BLT088-030 3 3 2.1
BLT088-050 5 5 4.3
BLT088-085 8.5 8.5 7.3
BLT088-100 10 10 17.0
BLT088-150 15 15 21.2
BLT088-250 25 25 39.0
BLT088-350 35 35 45.8
BLT088-600 60 60
ITEM NO. TECHNICAL PARAMETERS/MM
T J W
BLT088-007 12 10.5 35
BLT088-015 15 13.5 46
BLT088-030 20 20 57
BLT088-050 26 33 69
BLT088-085 32 37 88
BLT088-100 42 44 104
BLT088-150 49 54 110
BLT088-250 60 66 140
BLT088-350 60 66 140
BLT088-600 75 80 230
ITEM NO. TECHNICAL PARAMETERS/MM
T J W
BLT088-007 12 10.5 35
BLT088-015 15 13.5 46
BLT088-030 20 20 57
BLT088-050 26 33 69
BLT088-085 32 37 88
BLT088-100 42 44 104
BLT088-150 49 54 110
BLT088-250 60 66 140
BLT088-350 60 66 140
BLT088-600 75 80 230

ITEM NO. TECHNICAL PARAMETERS/MM
B K L I
BLT088-007 34 102 128 13
BLT088-015 40 112 152 20
BLT088-030 54 160 210 25
BLT088-050 67 203 267 32
BLT088-085 78 250 326 38
BLT088-100 104 310 410 50
BLT088-150 116 320 440 60
BLT088-250 137 405 545 70
BLT088-350 154 405 545 70
BLT088-600 270 670 890 115
